Inspire S

Inspire S 150 White 470lm 3000K Ra 98 Trailing edge

Article code
320821
EAN
7021983208217
Back to articlelist

Overview

Efficacy
59 lm/W
Lumen
470lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra 98
Lifetime
100,000 L90/B10>
Mounting
Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • flickerfree
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 320821 Revit file - Generic Inspire S150 - generic Revit file - Ceiling Based Inspire S 150 - ceiling based

See more

Eulumdat file (ldt) 7021983208217_Inspire S 150 White 470lm 3000K Ra 98 Trailing edge dimming Dialux file (uld) 7021983208217_Inspire S 150 White 470lm 3000K Ra 98 Trailing edge dimming Relux file (rolf) 7021983208217_Inspire_S_150_White_470lm_3000K_Ra_98_Trailing_edge_dimming EPD NEPD-11019-9966_Inspire-S-150 Mounting instruction Inspire S150_User Manual CE Declaration Inspire S

How to specify

Text copied to clipboard

Inspire S 150 White 470lm 3000K Ra 98 Trailing edge, Article code: 320821, EAN: 7021983208217, IP20, Electrical: System wattage: 8W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 470lm, Efficacy: 59 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra 98, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Beam angle: 55°, UGR: UGR<19, Visible flicker (PstLM): 0.1, Stroboscopic flicker (SVM): 0.1, Control/Dimming: Type: Trailing edge, Driver: 200mA, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Mounting/Connection: Mounting: Indoor, Module: 150, Connection: Screwless terminal block, Dimensions: Length (mm) L: 160, Width (mm) W: 59, Height (mm) H: 85, Weight (kg) gross/net: 0.689 / 0.649, Packaging: Packaging dimensions (mm): 169 x 93 x 69

Electrical

System wattage
8W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
470lm
Efficacy
59 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra 98
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

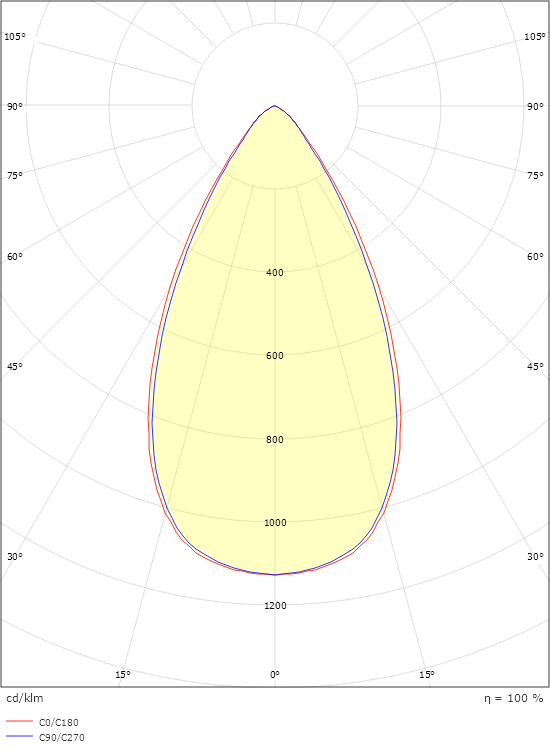

Light distribution
Direct
Beam angle
55°

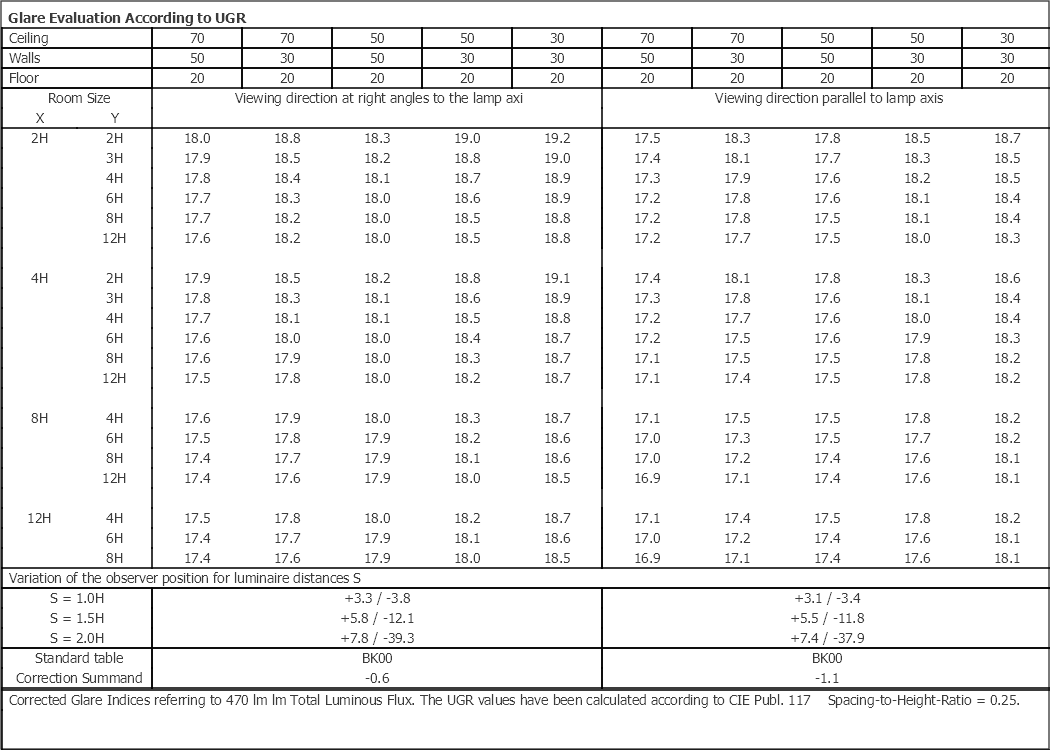

UGR
UGR<19
Visible flicker (PstLM)
0.1
Stroboscopic flicker (SVM)
0.1

Control/Dimming

Type
Trailing edge
Driver
200mA

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Indoor
Module
150
Connection
Screwless terminal block

Dimensions

Length (mm) L
160
Width (mm) W
59
Height (mm) H
85
Weight (kg) gross/net
0.689 / 0.649

Packaging

Packaging dimensions (mm)
169 x 93 x 69
