Inspire R TW

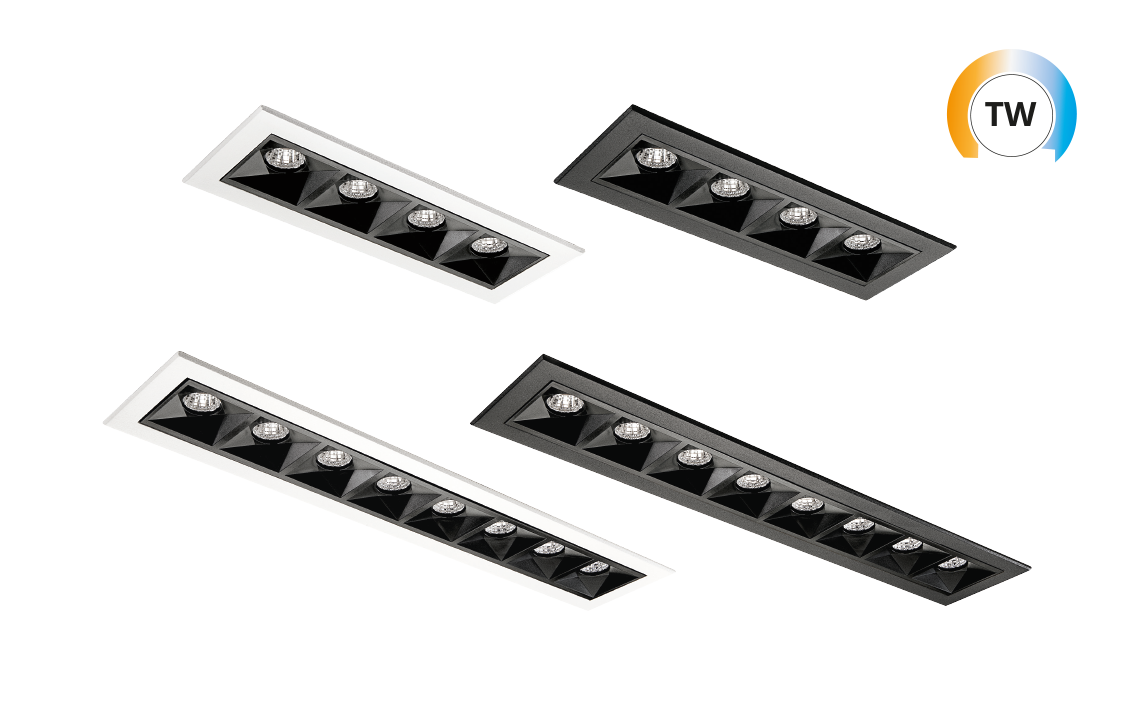

Inspire R TW is a rectangular recessed downlight for indoor use. With cubist black reflectors it has very low glare and harmonious non-flickering light with a well-defined light pattern.Inspire R TW is suitable for use in high-end residential and commercial environments.Tunable White from 2000-4000K or 2700-6500K. Controlled by TW LEDDim or DALI Type 8 (DALI Type 8 only version 300).

Article list

Inspire R TW

Indoor Direct Recessed SDCM: 2 Class II SELV IP20 Ra>90 Beam angle: 55° L90/B10> 100,000

Filters

Color

Version

Colour temperature

System wattage

Lumen

Control gear

Filters

						Others	Tools
212446	300	2000-4000K	17W	970lm (@4000K)	TW DALI Type 8	57 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212440	150	2000-4000K	10W	500lm (@ 4000K)	TW LEDDim	50 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212442	300	2000-4000K	17W	970lm (@4000K)	TW LEDDim	57 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212445	300	2000-4000K	17W	970lm (@4000K)	TW DALI Type 8	57 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212439	150	2000-4000K	10W	500lm (@ 4000K)	TW LEDDim	50 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212441	300	2000-4000K	17W	970lm (@4000K)	TW LEDDim	57 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212453	300	2700-6500K	17W	1080lm (@6500K)	TW DALI Type 8	64 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212449	150	2700-6500K	10W	560lm (@6500K)	TW LEDDim	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212452	300	2700-6500K	17W	1080lm (@6500K)	TW LEDDim	64 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212451	300	2700-6500K	17W	1080lm (@6500K)	TW DALI Type 8	64 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212448	150	2700-6500K	10W	560lm (@6500K)	TW LEDDim	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212450	300	2700-6500K	17W	1080lm (@6500K)	TW LEDDim	64 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
212446	300	2000-4000K	17W	970lm (@4000K)	TW DALI Type 8	57 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212440	150	2000-4000K	10W	500lm (@ 4000K)	TW LEDDim	50 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212442	300	2000-4000K	17W	970lm (@4000K)	TW LEDDim	57 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212445	300	2000-4000K	17W	970lm (@4000K)	TW DALI Type 8	57 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212439	150	2000-4000K	10W	500lm (@ 4000K)	TW LEDDim	50 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212441	300	2000-4000K	17W	970lm (@4000K)	TW LEDDim	57 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212453	300	2700-6500K	17W	1080lm (@6500K)	TW DALI Type 8	64 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212449	150	2700-6500K	10W	560lm (@6500K)	TW LEDDim	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212452	300	2700-6500K	17W	1080lm (@6500K)	TW LEDDim	64 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212451	300	2700-6500K	17W	1080lm (@6500K)	TW DALI Type 8	64 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212448	150	2700-6500K	10W	560lm (@6500K)	TW LEDDim	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212450	300	2700-6500K	17W	1080lm (@6500K)	TW LEDDim	64 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
212482	Inspire Gold 150 Reflector	L140 x W38 x H16	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212483	Inspire Gold 300 Reflector	L280 x W38 x H16	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212480	Inspire White 150 Reflector	L140 x W38 x H16	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212481	Inspire White 300 Reflector	L280 x W38 x H16	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820090	Emergencybox Adapter kit for downlight	L250 x W13 x H13	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094364	Emergencybox On-Off/Trailing edge / EM Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094500	Emergencybox Driver DALI / EM DALI/Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
