Soft Square

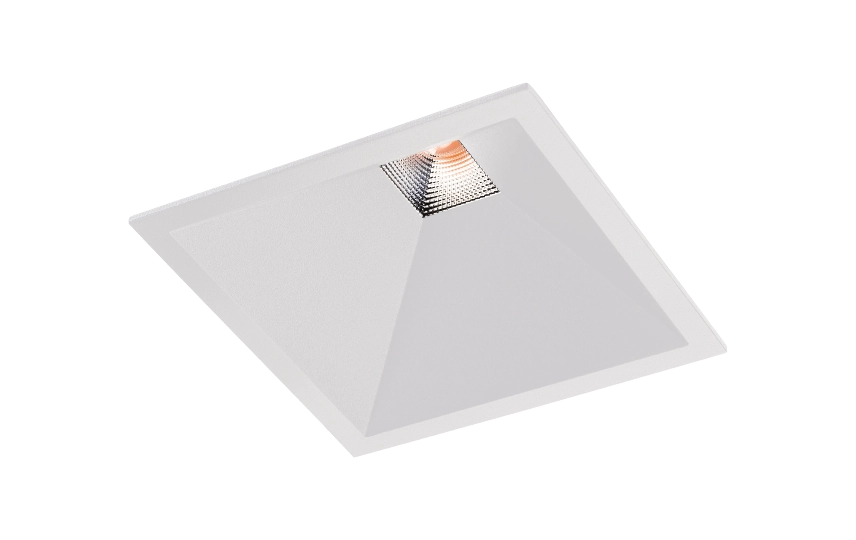

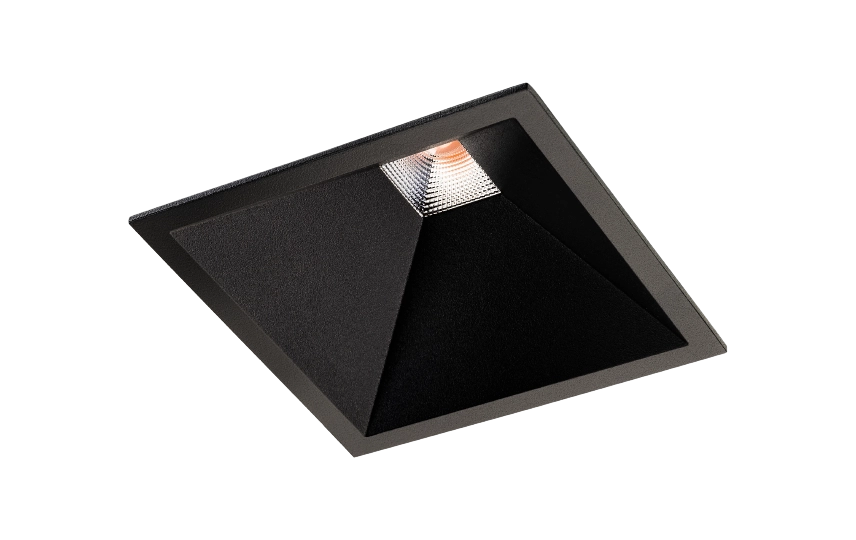

Soft Square is a unique downlight with a pure square shape to fit in modern environments, both residential and commercial. It provides a wide light distribution with a sharp shape. The recessed light source in the black baffle gives an exclusive glare free appearance with harmonious, flicker free light and excellent colour rendering.Soft Square is made for square holes but by using additional frames it can also be installed in round holes.

Article list

Soft Square

Indoor Direct Recessed SDCM: 1 Class II SELV IK10 IP43/IP20 Ra 98 Beam angle: 60° L80/B10> 100,000

Filters

Color

Colour temperature

Lumen

Control gear

					Others	Tools
903252	2700K	12W	880lm	DALI-2 / Push Dim	73 lm/W, L95 x W95 x H58 x D57, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903250	2700K	12W	880lm	Trailing edge	73 lm/W, L95 x W95 x H58 x D57, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903262	2700K	12W	900lm	DALI-2 / Push Dim	75 lm/W, L95 x W95 x H58 x D57, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903260	2700K	12W	900lm	Trailing edge	75 lm/W, L95 x W95 x H58 x D57, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903253	3000K	12W	890lm	DALI-2 / Push Dim	74 lm/W, L95 x W95 x H58 x D57, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903251	3000K	12W	890lm	Trailing edge	74 lm/W, L95 x W95 x H58 x D57, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903263	3000K	12W	910lm	DALI-2 / Push Dim	76 lm/W, L95 x W95 x H58 x D57, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903261	3000K	12W	910lm	Trailing edge	76 lm/W, L95 x W95 x H58 x D57, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

					Others	Tools
903252	2700K	12W	880lm	DALI-2 / Push Dim	73 lm/W, L95 x W95 x H58 x D57, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903250	2700K	12W	880lm	Trailing edge	73 lm/W, L95 x W95 x H58 x D57, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903262	2700K	12W	900lm	DALI-2 / Push Dim	75 lm/W, L95 x W95 x H58 x D57, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903260	2700K	12W	900lm	Trailing edge	75 lm/W, L95 x W95 x H58 x D57, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903253	3000K	12W	890lm	DALI-2 / Push Dim	74 lm/W, L95 x W95 x H58 x D57, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903251	3000K	12W	890lm	Trailing edge	74 lm/W, L95 x W95 x H58 x D57, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903263	3000K	12W	910lm	DALI-2 / Push Dim	76 lm/W, L95 x W95 x H58 x D57, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903261	3000K	12W	910lm	Trailing edge	76 lm/W, L95 x W95 x H58 x D57, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools

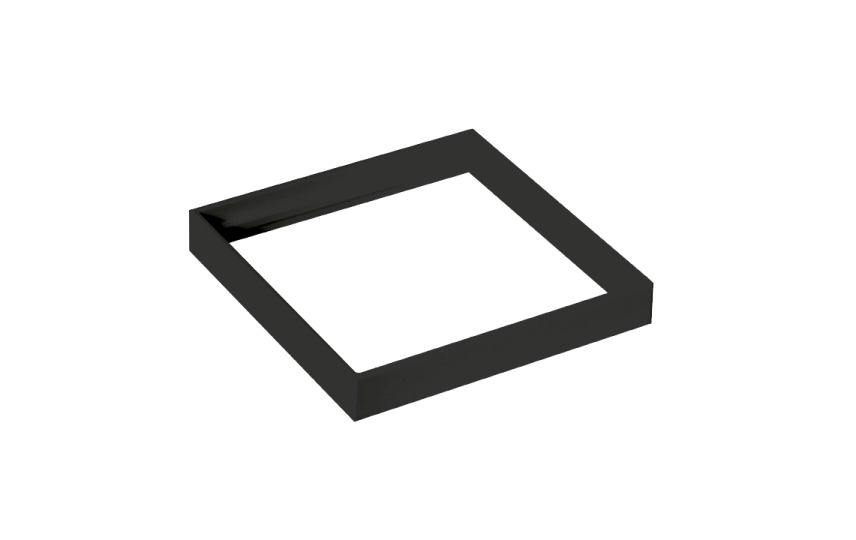

903256	Soft Square Black 1X Frame Stainless steel	L140 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903257	Soft Square Black 2X Frame Stainless steel	L258 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903259	Soft Square Black 3X Frame Stainless steel	L376 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903267	Soft Square Black Spacer Aluminium	L95 x W95 x H13	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903254	Soft Square White 1X Frame Stainless steel	L140 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903255	Soft Square White 2X Frame Stainless steel	L258 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903258	Soft Square White 3X Frame Stainless steel	L376 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903266	Soft Square White Spacer Aluminium	L95 x W95 x H13	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

References

References

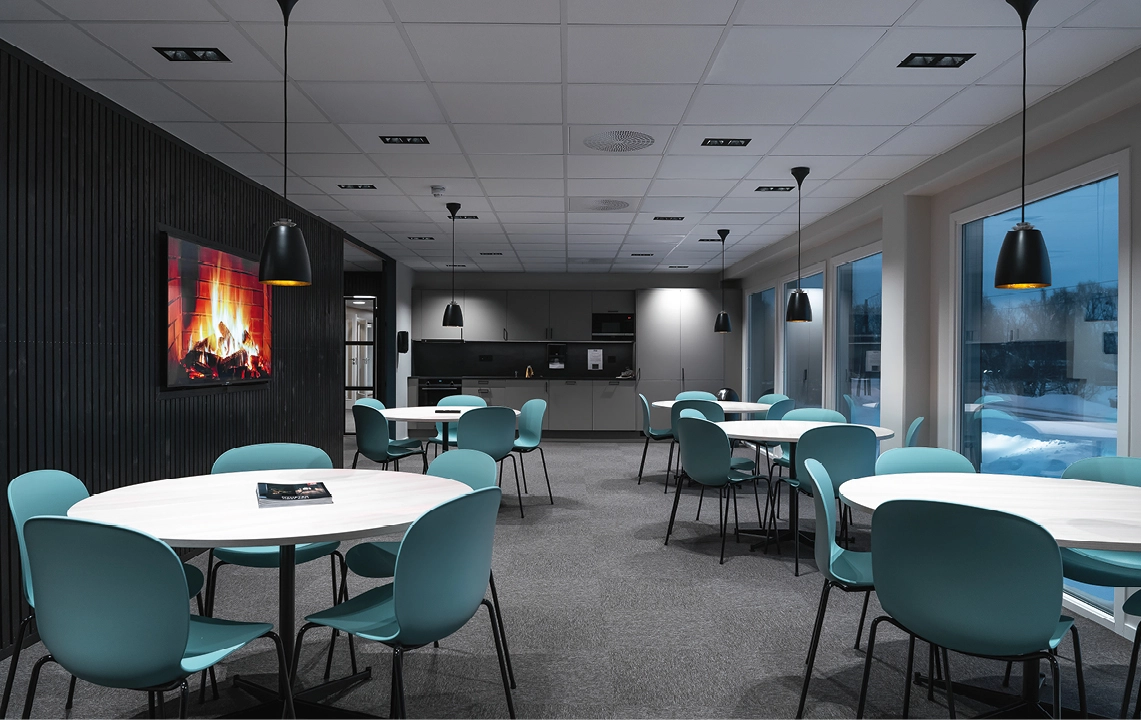

AB Elektro is an electrical contractor based in Alta. They have been delivering electrical installations throughout North Norway since 1995, taking a genuine interest and pride in their trade.
