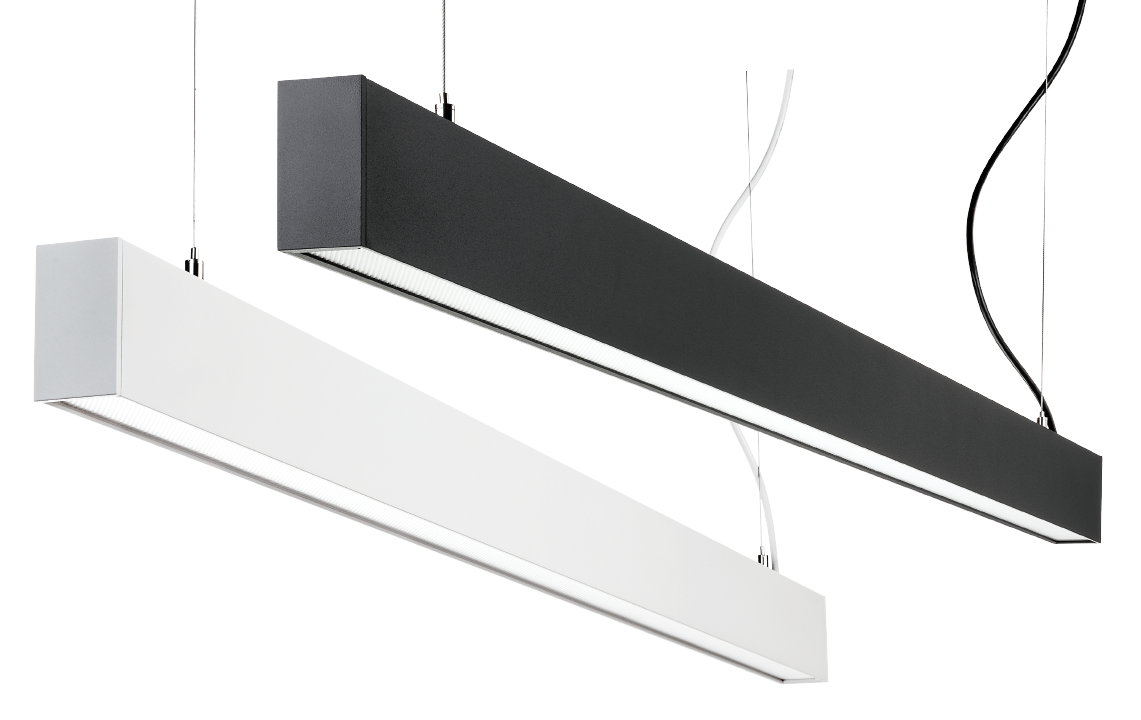

Inspire Prism

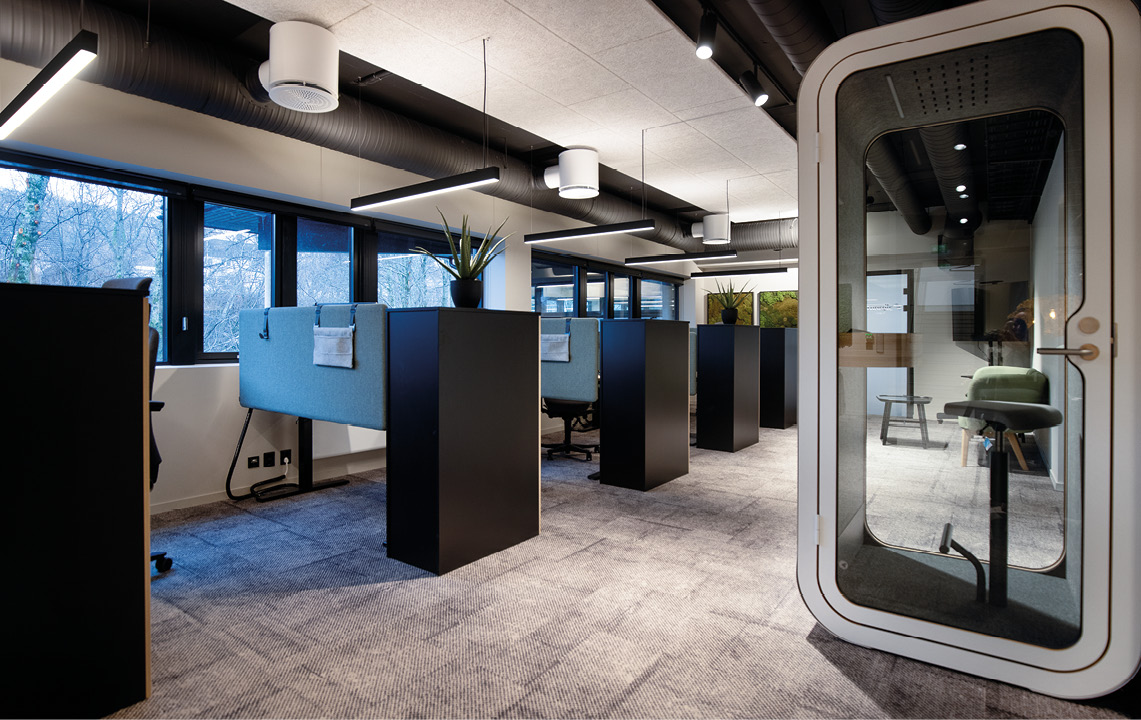

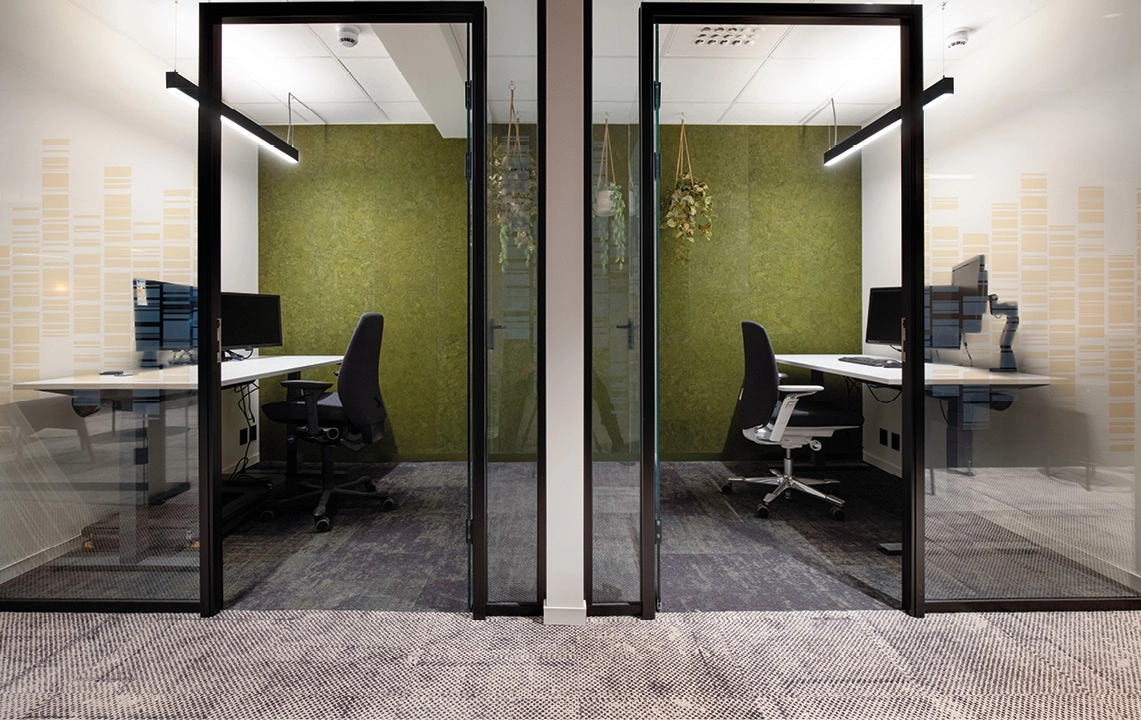

Inspire Prism has a slim, modern design with powder-coated white or black outer surface. Direct light with prismatic, glare-free optics made of PMMA, combined with indirect light with a wide beam angle, gives an efficient light perfectly suited for offices and above desks. 2,5m cable and wireset for ceiling/T-profile fixing is included. Different control options are available; phase cut, pull-dim, Dali or SG Connect. If you want to position several luminaires in a row, the luminaires can easily be connected together with the supplied coupling piece or the flexible corner (accessory).
Article list
Inspire Prism
Version:
prism
:
Indoor
Light distribution:
Direct/Indirect
Mounting type:
Suspended
SDCM:
3
Luminaire class:
Class I
IP Class:
IP20
Colour rendering (Ra):
Ra>80
Lifetime:
L90/B10> 100,000
Filters
| Others | Tools | |||||||
|---|---|---|---|---|---|---|---|---|
| 1200 | 3000K | 29W | 3510lm | DALI-2 |
|
|||
| 1500 | 3000K | 35W | 4330lm | DALI-2 |
|
|||
| 1200 | 3000K | 29W | 3510lm | Dim 1x pull switch |
|
|||
| 1500 | 3000K | 35W | 4330lm | Dim 1x pull switch |
|
|||
| 1200 | 3000K | 29W | 3510lm | Trailing edge |
|
|||
| 1500 | 3000K | 35W | 4330lm | Trailing edge |
|
|||
| 1200 | 3000K | 29W | 4000lm | DALI-2 |
|
|||
| 1500 | 3000K | 35W | 4800lm | DALI-2 |
|
|||
| 1200 | 3000K | 29W | 4000lm | Dim 1x pull switch |
|
|||
| 1500 | 3000K | 35W | 4800lm | Dim 1x pull switch |
|
|||
| 1200 | 3000K | 29W | 4000lm | Trailing edge |
|
|||
| 1500 | 3000K | 35W | 4800lm | Trailing edge |
|
|||
| 1200 | 4000K | 29W | 3620lm | DALI-2 |
|
|||
| 1500 | 4000K | 35W | 4470lm | DALI-2 |
|
|||
| 1200 | 4000K | 29W | 3620lm | Dim 1x pull switch |
|
|||
| 1500 | 4000K | 35W | 4470lm | Dim 1x pull switch |
|
|||
| 1200 | 4000K | 29W | 3620lm | Trailing edge |
|
|||
| 1500 | 4000K | 35W | 4470lm | Trailing edge |
|
|||
| 1200 | 4000K | 29W | 4130lm | DALI-2 |
|
|||
| 1500 | 4000K | 35W | 4960lm | DALI-2 |
|
|||
| 1200 | 4000K | 29W | 4130lm | Dim 1x pull switch |
|
|||
| 1500 | 4000K | 35W | 4960lm | Dim 1x pull switch |
|
|||
| 1200 | 4000K | 29W | 4130lm | Trailing edge |
|
|||
| 1500 | 4000K | 35W | 4960lm | Trailing edge |
|
Black
White
Sorry, we couldn’t find what you are looking for.
| Others | Tools | |||||||
|---|---|---|---|---|---|---|---|---|
| 1200 | 3000K | 29W | 3510lm | DALI-2 |
|
|||
| 1500 | 3000K | 35W | 4330lm | DALI-2 |
|
|||
| 1200 | 3000K | 29W | 3510lm | Dim 1x pull switch |
|
|||
| 1500 | 3000K | 35W | 4330lm | Dim 1x pull switch |
|
|||
| 1200 | 3000K | 29W | 3510lm | Trailing edge |
|
|||
| 1500 | 3000K | 35W | 4330lm | Trailing edge |
|
|||
| 1200 | 3000K | 29W | 4000lm | DALI-2 |
|
|||
| 1500 | 3000K | 35W | 4800lm | DALI-2 |
|
|||
| 1200 | 3000K | 29W | 4000lm | Dim 1x pull switch |
|
|||
| 1500 | 3000K | 35W | 4800lm | Dim 1x pull switch |
|
|||
| 1200 | 3000K | 29W | 4000lm | Trailing edge |
|
|||
| 1500 | 3000K | 35W | 4800lm | Trailing edge |
|
|||
| 1200 | 4000K | 29W | 3620lm | DALI-2 |
|
|||
| 1500 | 4000K | 35W | 4470lm | DALI-2 |
|
|||
| 1200 | 4000K | 29W | 3620lm | Dim 1x pull switch |
|
|||
| 1500 | 4000K | 35W | 4470lm | Dim 1x pull switch |
|
|||
| 1200 | 4000K | 29W | 3620lm | Trailing edge |
|
|||
| 1500 | 4000K | 35W | 4470lm | Trailing edge |
|
|||
| 1200 | 4000K | 29W | 4130lm | DALI-2 |
|
|||
| 1500 | 4000K | 35W | 4960lm | DALI-2 |
|
|||
| 1200 | 4000K | 29W | 4130lm | Dim 1x pull switch |
|
|||
| 1500 | 4000K | 35W | 4960lm | Dim 1x pull switch |
|
|||
| 1200 | 4000K | 29W | 4130lm | Trailing edge |
|
|||
| 1500 | 4000K | 35W | 4960lm | Trailing edge |
|
Sorry, we couldn’t find what you are looking for.
Accessories
| Image | Article code | Description | Dimensions | Tools |
|---|---|---|---|---|
| Black T-carrier ceiling bracket Aluminium | L30 x W20 x H5 | |||

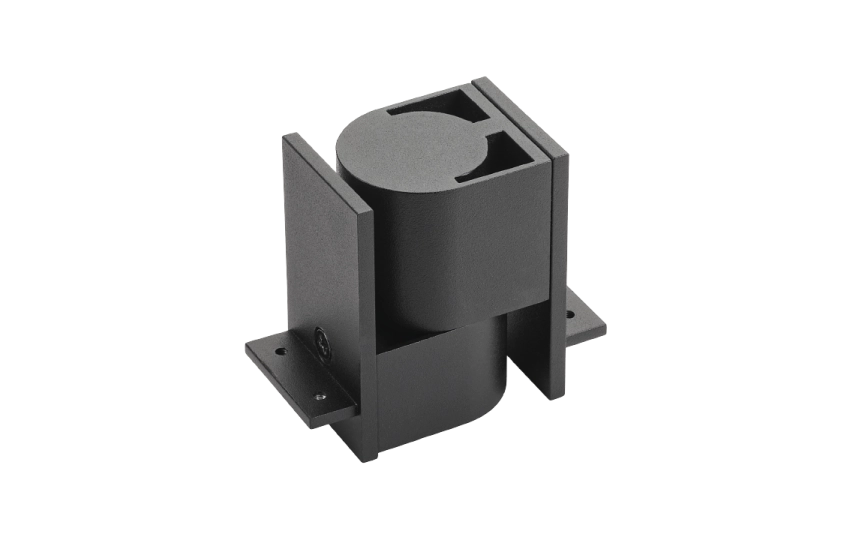

| Inspire Black Corner piece flex | L78 x W38 x H67 | |||
| T-profil White Suspension Rail 600mm | L596 x W35 x H17 | |||
| Inspire White Corner piece flex | L78 x W38 x H67 |
