Sense IP65

SENSE IP65 599x599 White 5160lm 4000K Ra>90 DALI-2 / Push Dim

Article code
8246096278
EAN
5703821181433
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
120 lm/W
Lumen
5160lm
IP Class
IP54/IP65
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L80/B50>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • flickerfree
  • ik07
  • ip54ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246096278 Eulumdat file (ldt) 5703821181433_Sense IP65 599x599 White 5110lm 4000K Ra90 DALI Dialux file (uld) 5703821181433_Sense IP65 599x599 White 5110lm 4000K Ra90 DALI

See more

Relux file (rolf) 5703821181433_Sense_IP65_599x599_White_5110lm_4000K_Ra_90_DALI EPD NEPD-4742-4001_Sense-IP65 Revit file - Generic Sense IP65 - generic Revit file - Face Based Sense IP65 - face based Mounting instruction Sense IP65_User Manual CE Declaration Sense IP65

How to specify

Text copied to clipboard

SENSE IP65 599x599 White 5160lm 4000K Ra>90 DALI-2 / Push Dim, Article code: 8246096278, EAN: 5703821181433, IP54/IP65, IK07, Electrical: System wattage: 43W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 12, B16: 20, C10: 21, C16: 34, Leakage current (mA): 0.29, Light technic: Type of light source: LED, Luminous flux: 5160lm, Efficacy: 120 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L80/B50>100,000, Lifetime: L90/B10>50,000, Light distribution: Direct, Optic: Prism Optic, UGR: UGR<19, Visible flicker (PstLM): 0,07, Stroboscopic flicker (SVM): 0,01, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IK Class: IK07, IP Class: IP54/IP65, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White smooth (Ral 9016 gloss 30), Optics: Tempered glass, Mounting/Connection: Mounting: Recessed, Indoor, Module: 599x599 C, Clip-in Ceiling, Cable: Cable 5x0,75mm² 2,5m Halogen free, Dimensions: Length (mm) L: 599, Width (mm) W: 599, Height (mm) H: 93, Weight (kg) gross/net: 12.7 / 12.1, Packaging: Packaging dimensions (mm): 625 x 605 x 97

Electrical

System wattage
43W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 12, B16: 20, C10: 21, C16: 34
Leakage current (mA)
0.29

Light technic

Type of light source
LED
Luminous flux
5160lm
Efficacy
120 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L80/B50>100,000
Lifetime
L90/B10>50,000

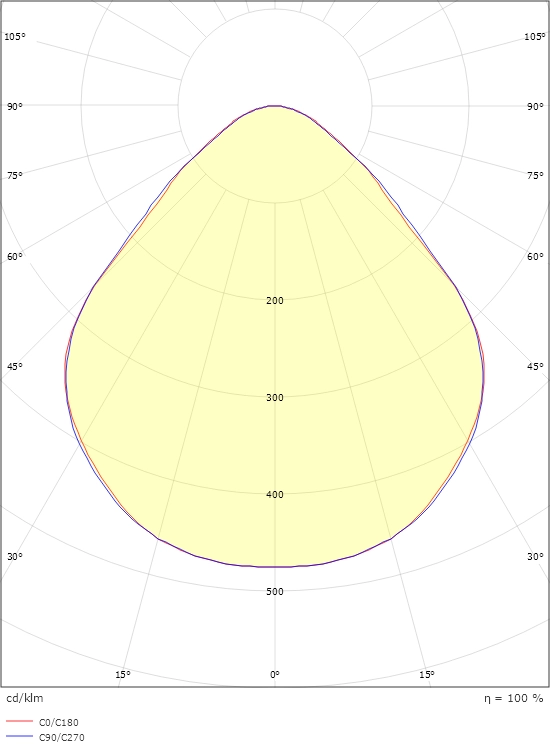

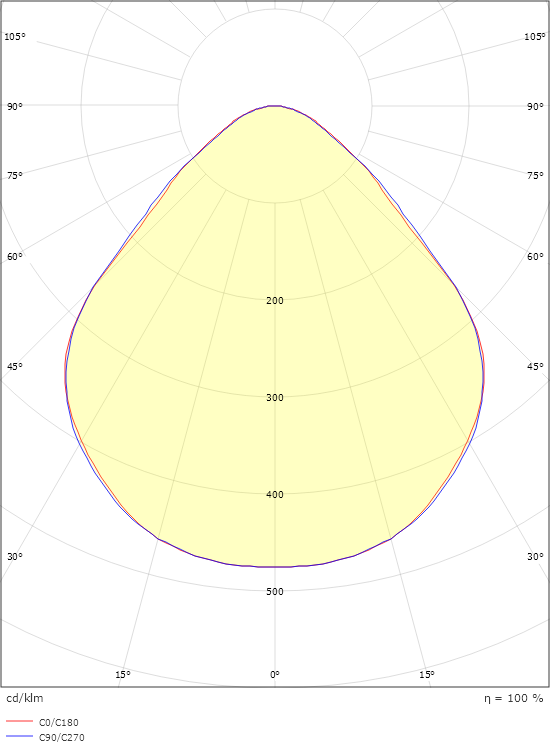

Light distribution
Direct
Optic
Prism Optic

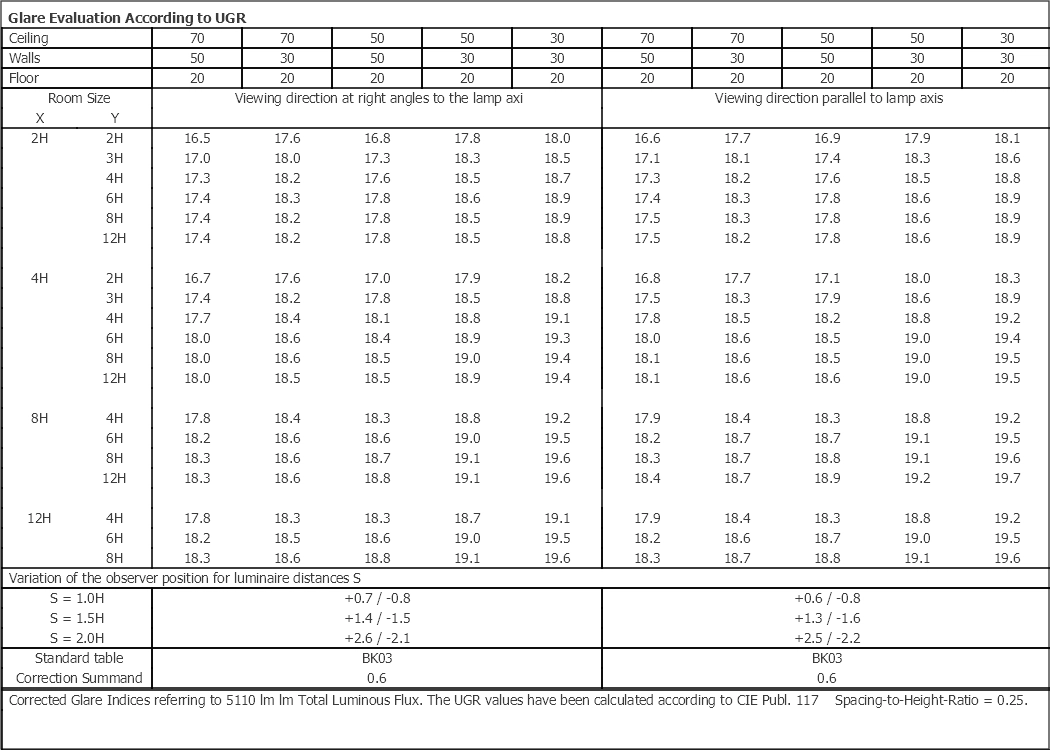

UGR
UGR<19
Visible flicker (PstLM)
0,07
Stroboscopic flicker (SVM)
0,01

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IK Class
IK07
IP Class
IP54/IP65

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White smooth (Ral 9016 gloss 30)
Optics
Tempered glass

Mounting/Connection

Mounting
Recessed, Indoor
Module
599x599 C, Clip-in Ceiling
Cable
Cable 5x0,75mm² 2,5m Halogen free

Dimensions

Length (mm) L
599
Width (mm) W
599
Height (mm) H
93
Weight (kg) gross/net
12.7 / 12.1

Packaging

Packaging dimensions (mm)
625 x 605 x 97
