Sense IP65

SENSE IP65 595x595 White 4840lm 3000K Ra>90 DALI Emergency 3H

Article code
8246096346
EAN
5703821181631
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
113 lm/W
Lumen
4840lm
IP Class
IP54/IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L80/B50>
Mounting
Recessed, Indoor
    5 years, Battery: 3 years Battery 5 years, Battery: 3 years Warranty
  • indoor
  • ik07
  • ip54ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246096346 Eulumdat file (ldt) 5703821181631_Sense IP65 595x595 White 4670lm 3000K Ra90 DALI Emergency 3H Dialux file (uld) 5703821181631_Sense IP65 595x595 White 4670lm 3000K Ra90 DALI Emergency 3H

See more

Relux file (rolf) 5703821181631_Sense_IP65_595x595_White_4670lm_3000K_Ra_90_DALI_Emergency_3H Revit file - Generic Sense IP65 - generic Revit file - Face Based Sense IP65 - face based Mounting instruction Sense IP65_User Manual CE Declaration Sense IP65

How to specify

Text copied to clipboard

SENSE IP65 595x595 White 4840lm 3000K Ra>90 DALI Emergency 3H, Article code: 8246096346, EAN: 5703821181631, IP54/IP65, IK07, Electrical: System wattage: 43W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 12, B16: 20, C10: 21, C16: 34, Leakage current (mA): 0.29, Light technic: Type of light source: LED, Luminous flux: 4840lm, Efficacy: 113 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L80/B50>100,000, Lifetime: L90/B10>50,000, Minimum ambient temperature: 0°C, Light distribution: Direct, Optic: Prism Optic, UGR: UGR<19, Visible flicker (PstLM): 0.07, Stroboscopic flicker (SVM): 0.01, Control/Dimming: Type: DALI Emergency 3H, Protection: Luminaire class: Class I, IK Class: IK07, IP Class: IP54/IP65, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White smooth (Ral 9016 gloss 30), Optics: Tempered glass, Mounting/Connection: Mounting: Recessed, Indoor, Module: 595x595 Exposed T-carrier 15/24mm, Cable: Cable 5x0,75mm² 2,5m Halogen free, Dimensions: Length (mm) L: 595, Width (mm) W: 595, Height (mm) H: 94, Weight (kg) gross/net: 12.7 / 12.1, Packaging: Packaging dimensions (mm): 625 x 605 x 97

Electrical

System wattage
43W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 12, B16: 20, C10: 21, C16: 34
Leakage current (mA)
0.29

Light technic

Type of light source
LED
Luminous flux
4840lm
Efficacy
113 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L80/B50>100,000
Lifetime
L90/B10>50,000
Minimum ambient temperature
0°C

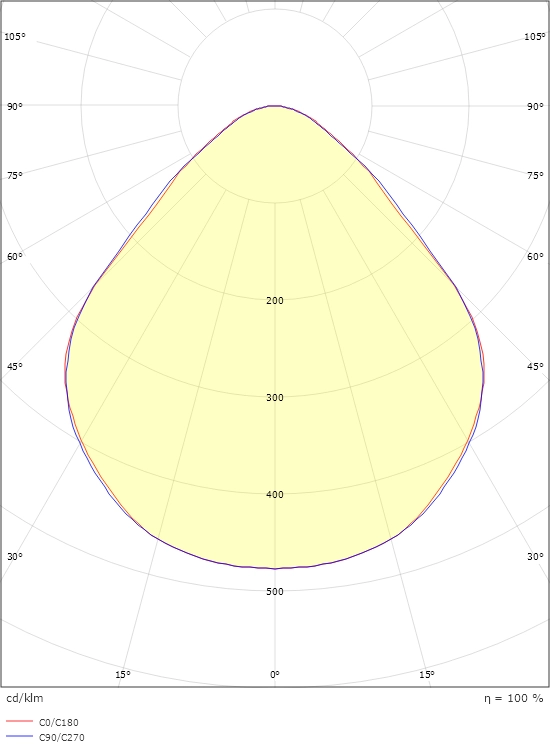

Light distribution
Direct
Optic
Prism Optic

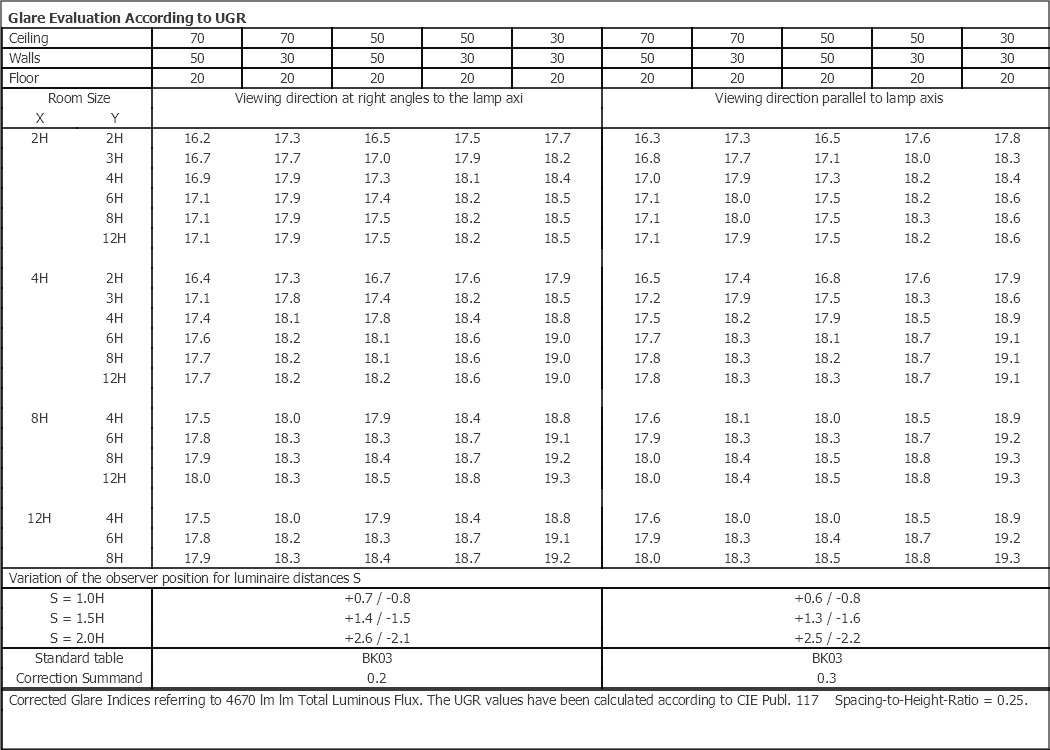

UGR
UGR<19
Visible flicker (PstLM)
0.07
Stroboscopic flicker (SVM)
0.01

Control/Dimming

Type
DALI Emergency 3H

Protection

Luminaire class
Class I
IK Class
IK07
IP Class
IP54/IP65

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White smooth (Ral 9016 gloss 30)
Optics
Tempered glass

Mounting/Connection

Mounting
Recessed, Indoor
Module
595x595 Exposed T-carrier 15/24mm
Cable
Cable 5x0,75mm² 2,5m Halogen free

Dimensions

Length (mm) L
595
Width (mm) W
595
Height (mm) H
94
Weight (kg) gross/net
12.7 / 12.1

Packaging

Packaging dimensions (mm)
625 x 605 x 97
