Basic

Basic White 8030lm 3000K Ra>80 Emergency 3H

Article code
8246087575
EAN
5703821168434
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
175 lm/W
Lumen
8030lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B10>
Mounting
Surface, Indoor
    5 years, Battery: 3 years Battery 5 years, Battery: 3 years Warranty
  • indoor
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246087575 Eulumdat file (ldt) 5703821168434_Basic White 8030lm 3000K Ra80 Emergency 3H Dialux file (uld) 5703821168434_Basic White 8030lm 3000K Ra80 Emergency 3H

See more

Relux file (rolf) 5703821168434_Basic_White_8030lm_3000K_Ra_80_Emergency_3H Revit file - Generic Netto LED - Generic Revit file - Ceiling Based Netto LED - Ceiling based Mounting instruction Basic_User Manual CE Declaration Basic LED

How to specify

Text copied to clipboard

Basic White 8030lm 3000K Ra>80 Emergency 3H, Article code: 8246087575, EAN: 5703821168434, IP20, Electrical: System wattage: 46W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 25, C16: 41, Light technic: Type of light source: LED, Luminous flux: 8030lm, Emergency lumen: EM 540 lm, Efficacy: 175 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>50,000, Minimum ambient temperature: 0°C, Light distribution: Direct, Optic: Opal optic, UGR: UGR<25, Control/Dimming: Type: Emergency 3H, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White (Pure white, 25% gloss), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 1530, Width (mm) W: 230, Height (mm) H: 85, Weight (kg) gross/net: 7.7 / 7.5, Packaging: Packaging dimensions (mm): 1540 x 240 x 90

Electrical

System wattage
46W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 15, B16: 24, C10: 25, C16: 41

Light technic

Type of light source
LED
Luminous flux
8030lm
Emergency lumen
EM 540 lm
Efficacy
175 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>50,000
Minimum ambient temperature
0°C

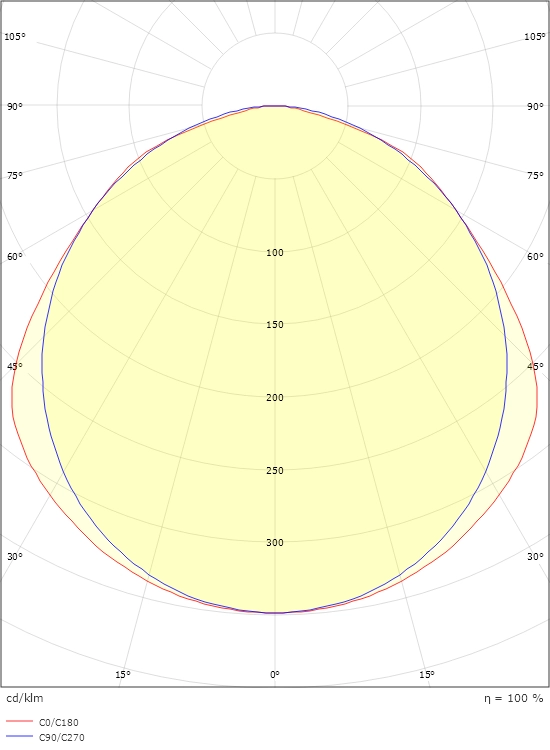

Light distribution
Direct
Optic
Opal optic

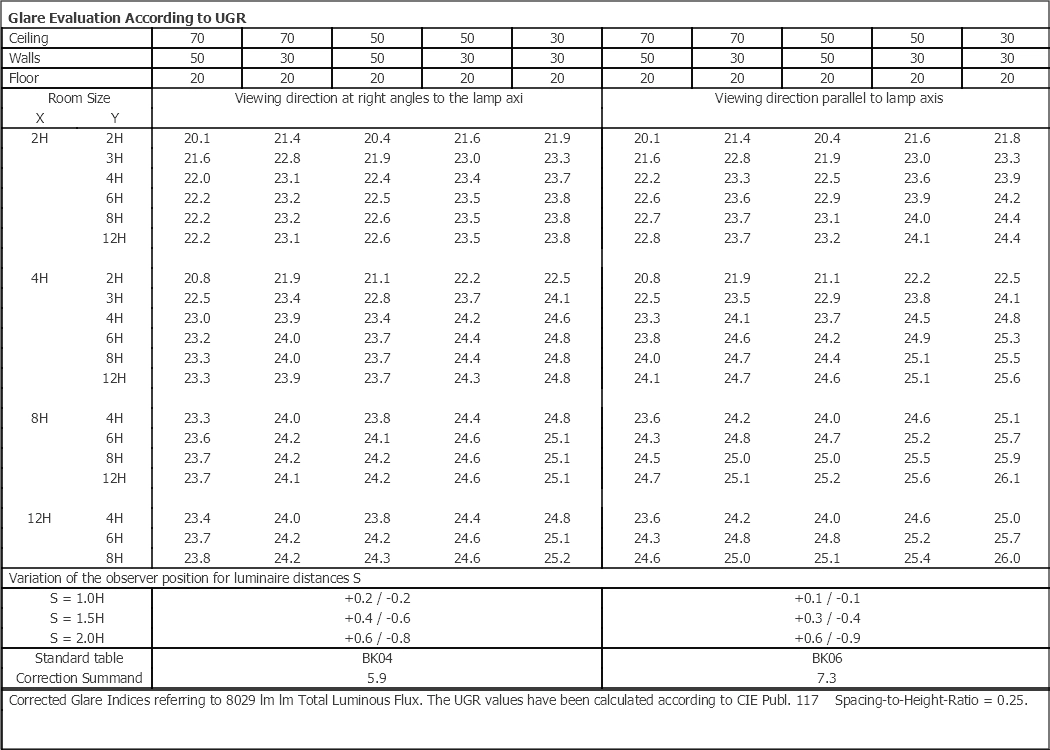

UGR
UGR<25

Control/Dimming

Type
Emergency 3H

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White (Pure white, 25% gloss)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
1530
Width (mm) W
230
Height (mm) H
85
Weight (kg) gross/net
7.7 / 7.5

Packaging

Packaging dimensions (mm)
1540 x 240 x 90
