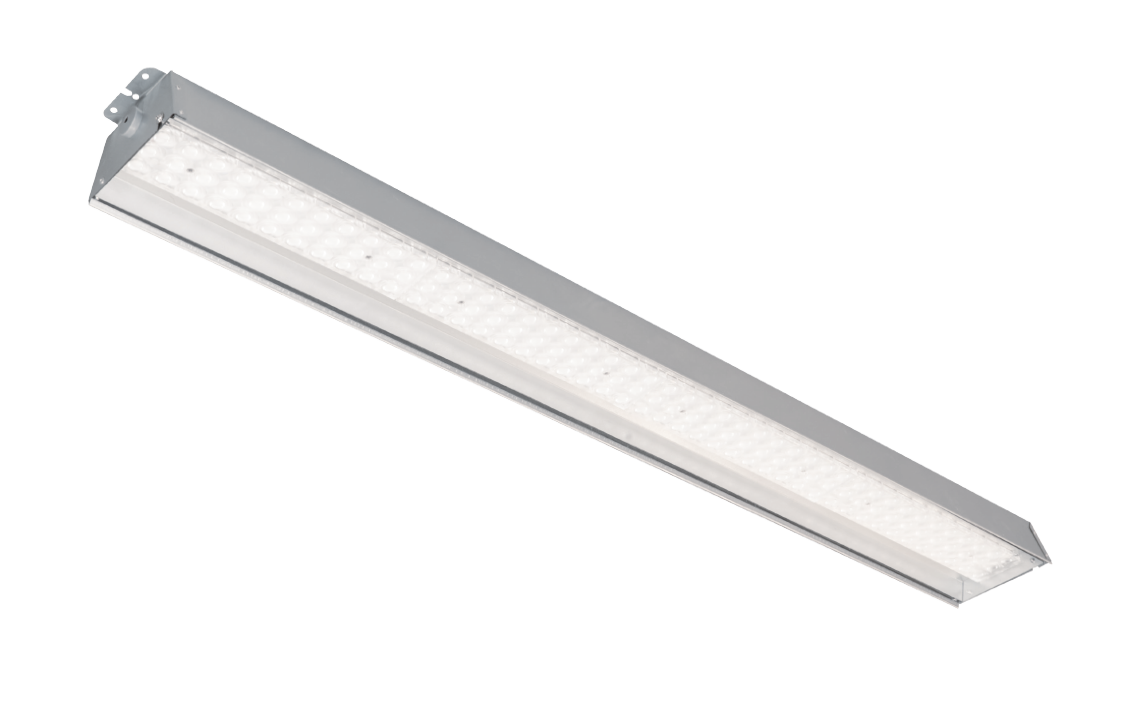

Arena Eco

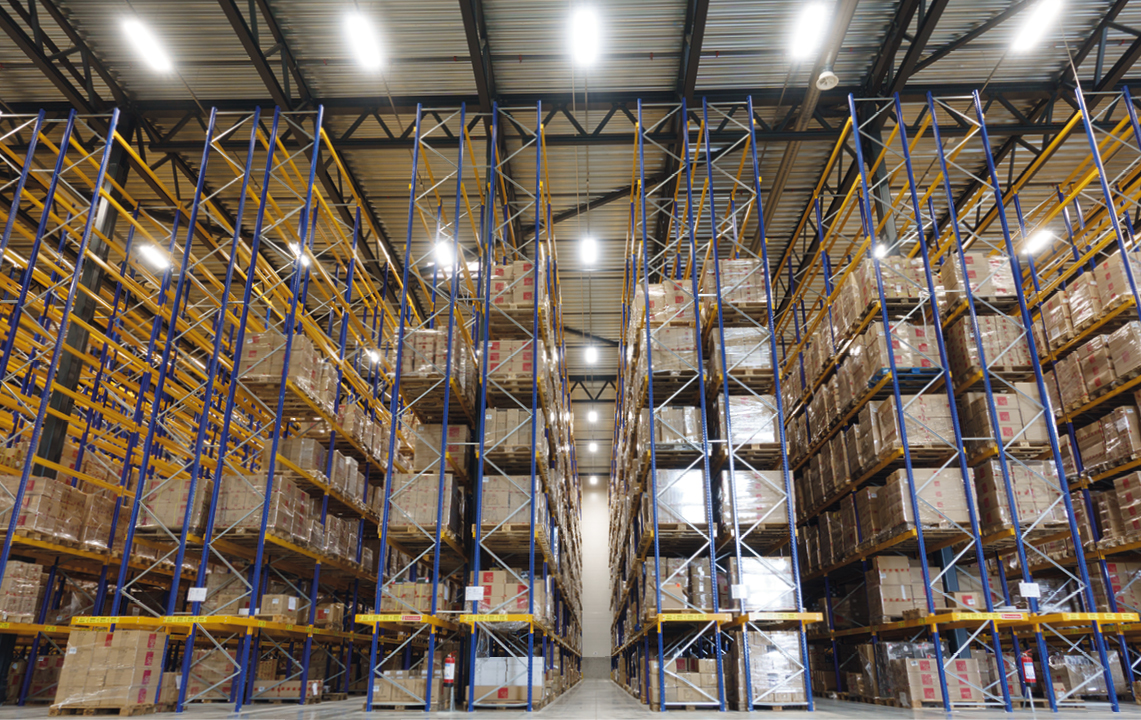

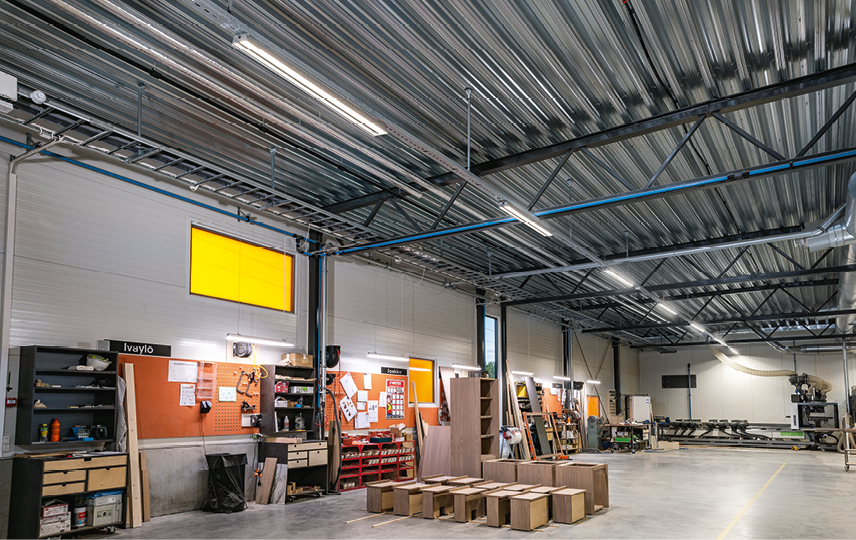

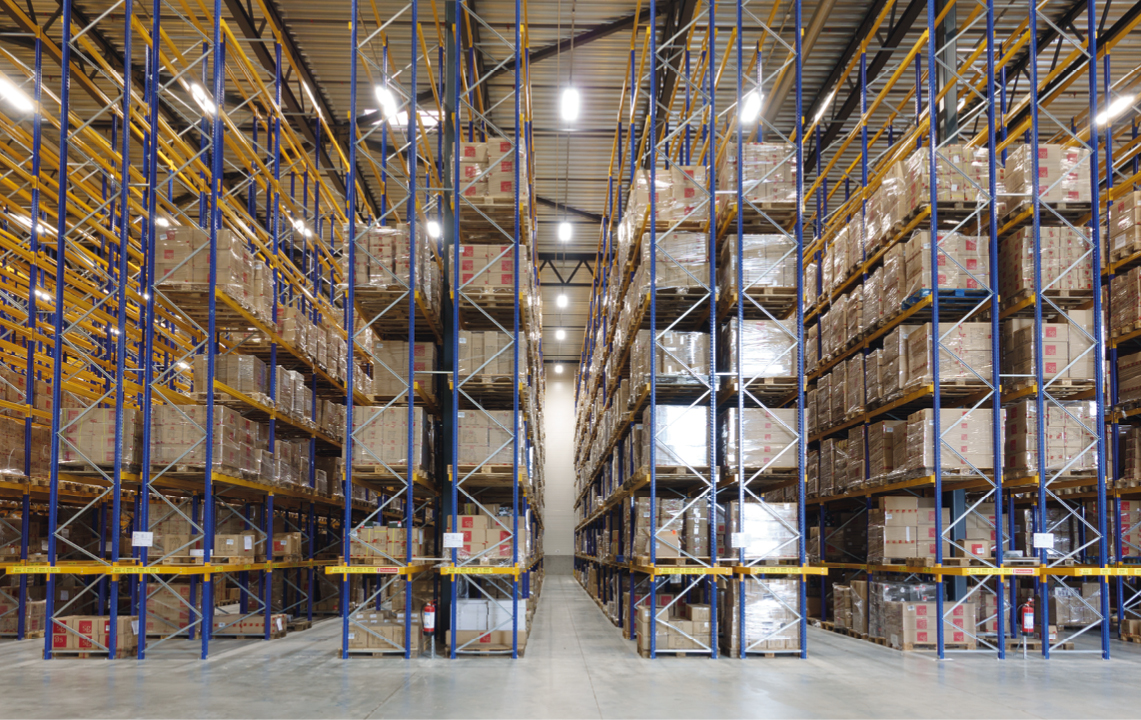

Arena ECO is an energy saving and super practical LED luminaire for storage and industry. It is simple to install with a hinged gear tray, and can be mounted either directly into the ceiling (screws), or by using mounting hooks for horizontal wiring. Arena ECO is available in two lengths, for easy replacement of fluorescent tube lighting from 2x36W to 2x58W. Through wiring and cable connection provided at both ends. Linear lens optics maximises the light distribution. 5-pole terminal block with 5x2,5mm² through wiring. Cable entry in end caps trough grommet. Linear lens optics maximizes the light distribution.

Narrow beam (30°) is available on request.

Article list

Arena Eco

Indoor Surface Direct 4000K SDCM: 3 Class I IK10 IP23 Ra>80 L80/B20> 100,000

Filters

Version

Module

Beam angle

System wattage

Lumen

Control gear

Filters

							Others	Tools
607016	Wide	1200	90°	46W	7100lm	DALI-2	154 lm/W, L1184 x W134 x H72, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607017	Medium	1200	60°	76W	11370lm	DALI-2	150 lm/W, L1184 x W134 x H72, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607018	Wide	1200	90°	76W	10960lm	DALI-2	144 lm/W, L1184 x W134 x H72, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607019	Medium	1500	60°	76W	11370lm	DALI-2	150 lm/W, L1552 x W134 x H72, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607020	Wide	1500	90°	76W	10960lm	DALI-2	144 lm/W, L1552 x W134 x H72, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607008	Wide	1200	90°	46W	7100lm	On/Off	154 lm/W, L1184 x W134 x H72, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607009	Medium	1200	60°	76W	11370lm	On/Off	150 lm/W, L1184 x W134 x H72, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607010	Wide	1200	90°	76W	10960lm	On/Off	144 lm/W, L1184 x W134 x H72, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607011	Medium	1500	60°	76W	11370lm	On/Off	150 lm/W, L1552 x W134 x H72, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607012	Wide	1500	90°	76W	10960lm	On/Off	144 lm/W, L1552 x W134 x H72, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

							Others	Tools
607016	Wide	1200	90°	46W	7100lm	DALI-2	154 lm/W, L1184 x W134 x H72, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607017	Medium	1200	60°	76W	11370lm	DALI-2	150 lm/W, L1184 x W134 x H72, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607018	Wide	1200	90°	76W	10960lm	DALI-2	144 lm/W, L1184 x W134 x H72, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607019	Medium	1500	60°	76W	11370lm	DALI-2	150 lm/W, L1552 x W134 x H72, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607020	Wide	1500	90°	76W	10960lm	DALI-2	144 lm/W, L1552 x W134 x H72, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607008	Wide	1200	90°	46W	7100lm	On/Off	154 lm/W, L1184 x W134 x H72, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607009	Medium	1200	60°	76W	11370lm	On/Off	150 lm/W, L1184 x W134 x H72, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607010	Wide	1200	90°	76W	10960lm	On/Off	144 lm/W, L1184 x W134 x H72, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607011	Medium	1500	60°	76W	11370lm	On/Off	150 lm/W, L1552 x W134 x H72, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
607012	Wide	1500	90°	76W	10960lm	On/Off	144 lm/W, L1552 x W134 x H72, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
8249045174	Shopline DALI White Adapter kit		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249045187	Shopline White Adapter kit		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820259	Start current limiter DIN 16A	L90 x W18 x H58	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044900	Wirekit 2x5m	L19 x W25 x H150	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044913	Mounting kit for adjustable angulation	L100 x W98 x H95	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

References

Green transition

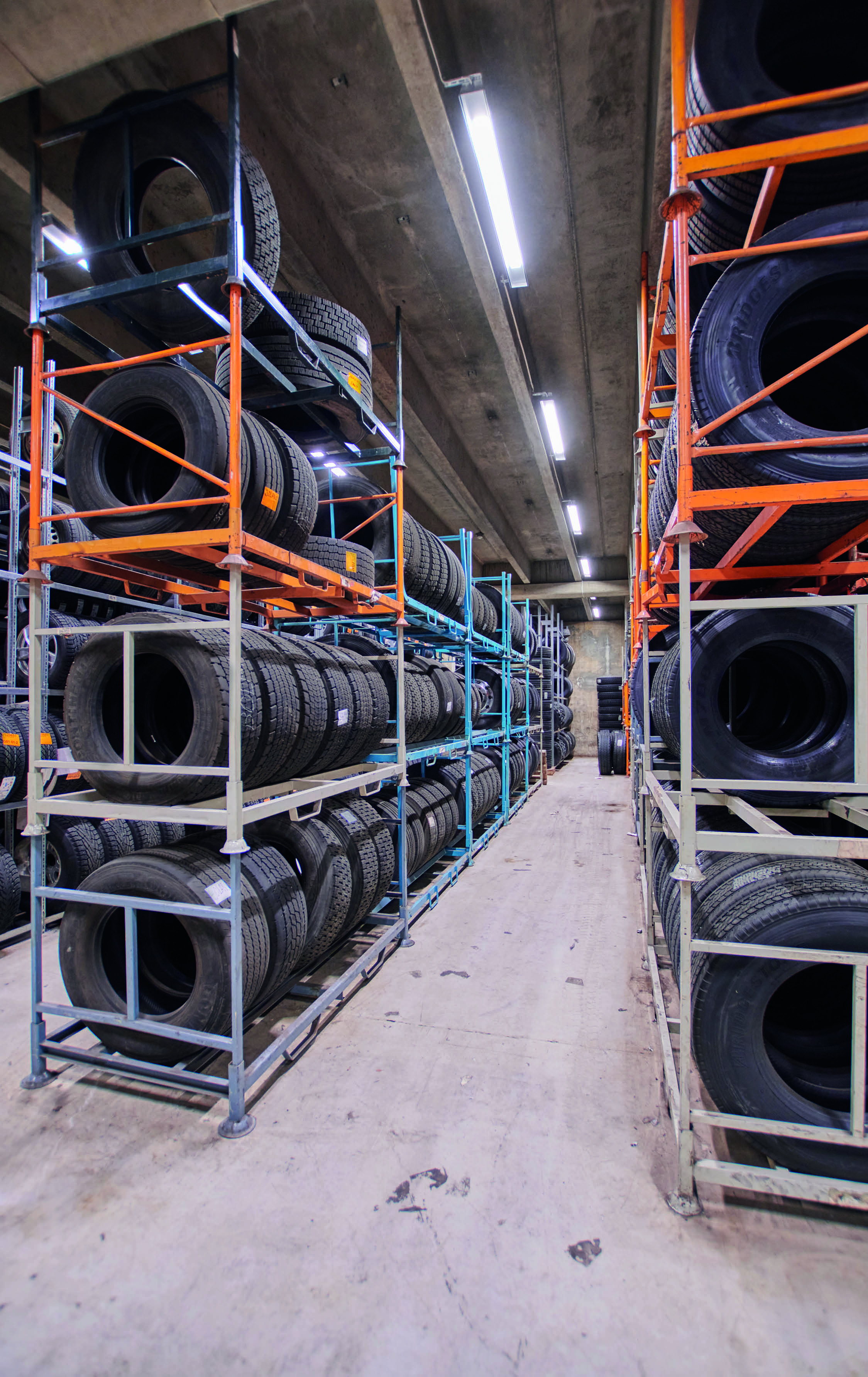

First Stop Dekkcenteret Oslo – the city's largest tyre hotel – wanted to create a better working environment for their employees by increasing the lighting conditions on their premises, while also changing luminaires from fluorescent to LED lamps
