Disc 480

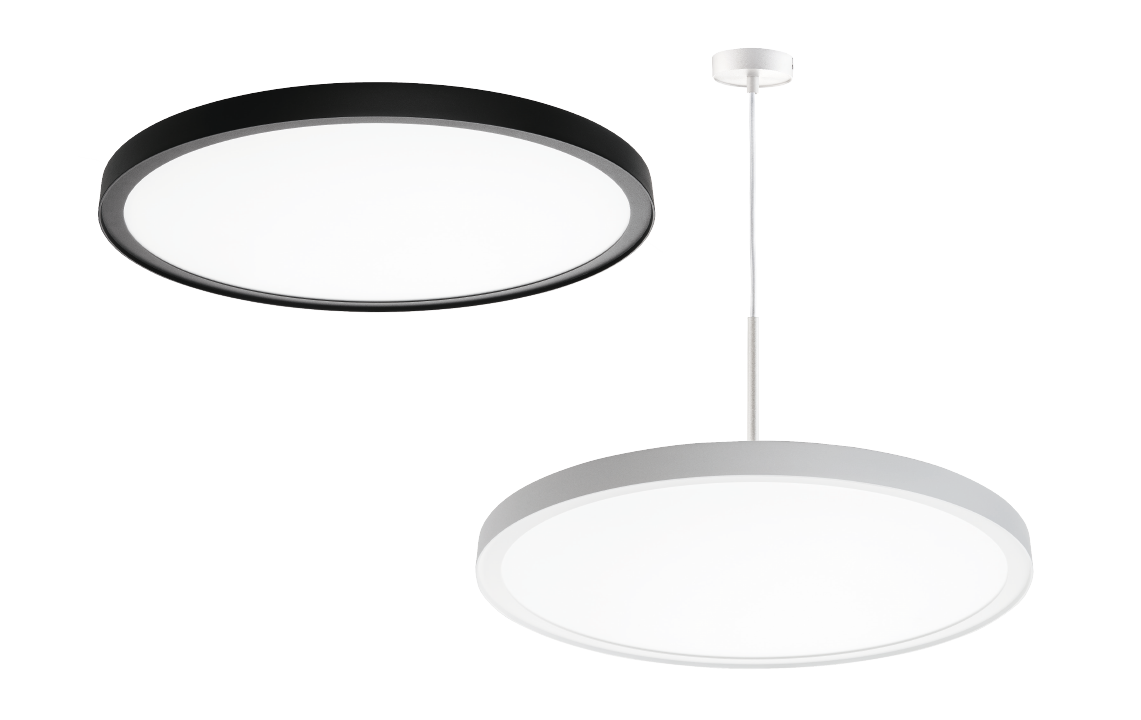

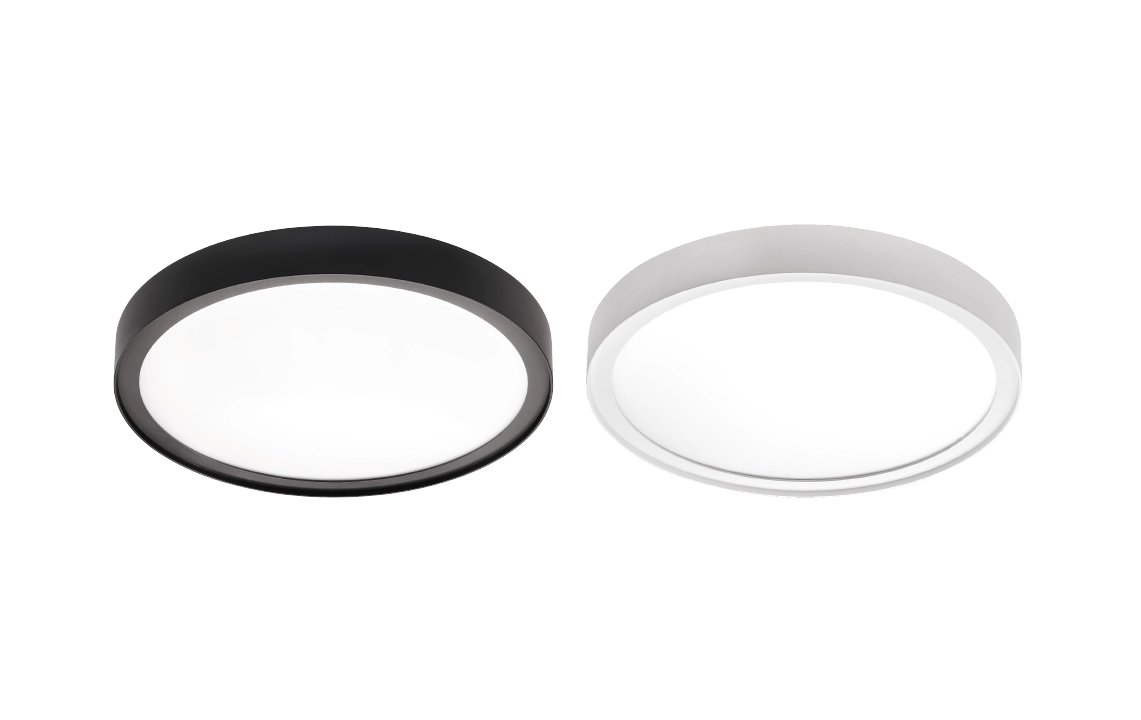

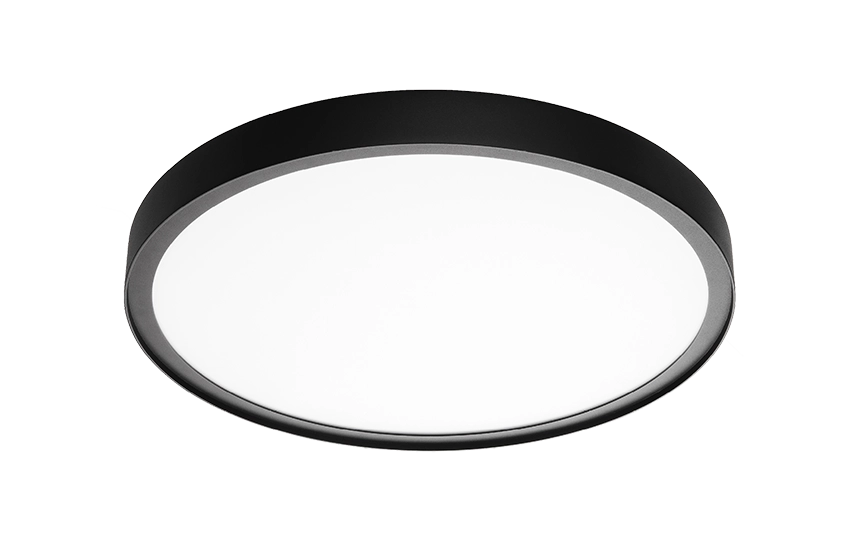

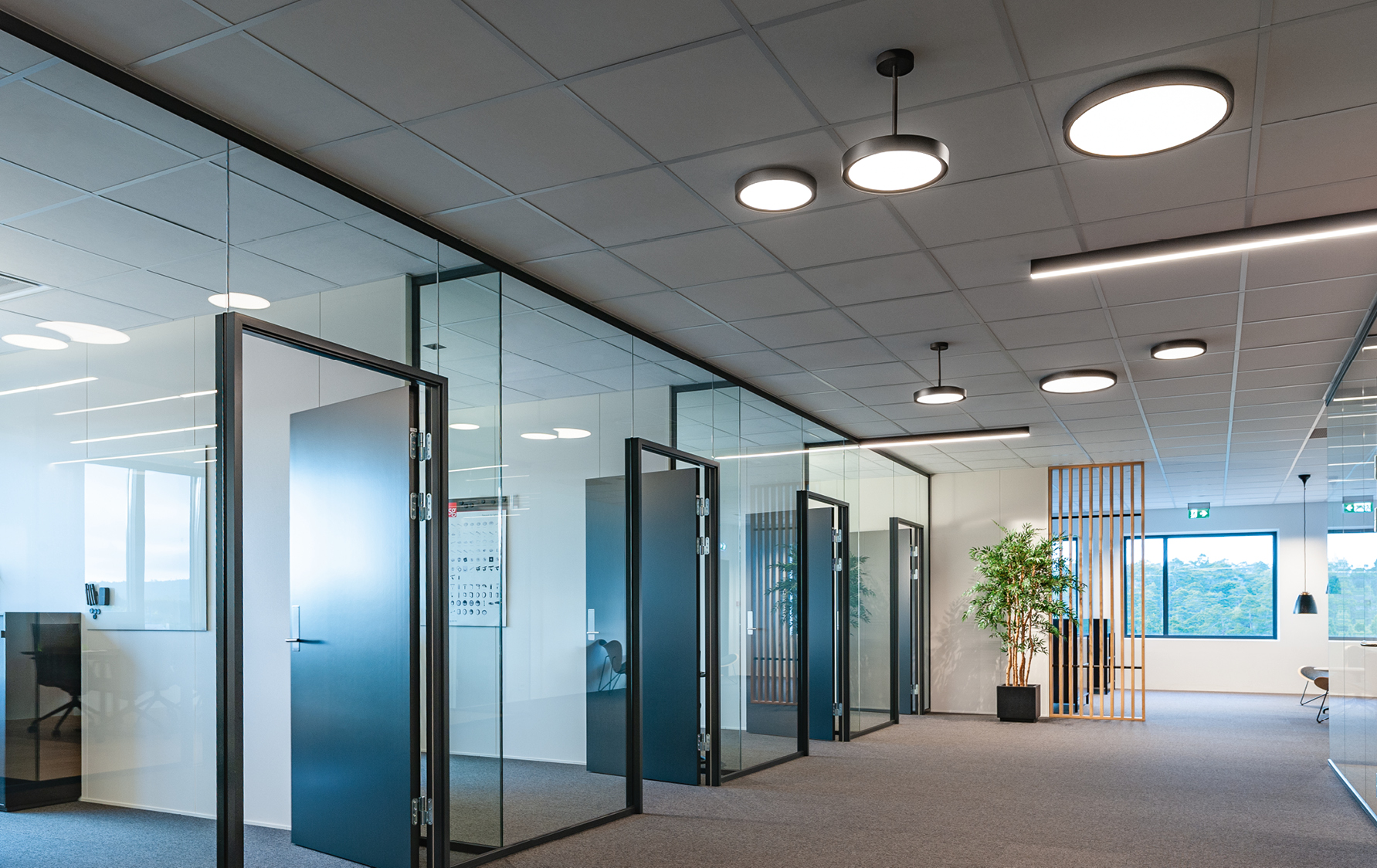

Energy efficient surface-mounted LED luminaire with a slim profile ensuring a modern look. Square and round available in multiple sizes and lumens. Opalprismatic diffuser provides a glare-free light. The luminaire is produced in a matt black or white powder-coated aluminium finish. Dimmable using a DALI or phase control dimmer. We recommend LEDDim 400 and LEDDim Smart. Simple installation with quick connections between fixture and back plate that can be screwed straight onto all known ceiling boxes. Visible cabling also possible. Also supplied with a sensor and/or emergency light.
Article list
Disc 480
:
Indoor
Light distribution:
Direct
Mounting type:
Surface
SDCM:
3
Luminaire class:
Class II
IK Class:
IK10
IP Class:
IP20
Colour rendering (Ra):
Ra>80
Beam angle:
85°
Lifetime:
L80/B20> 100,000
Filters
| Others | Tools | ||||||
|---|---|---|---|---|---|---|---|
| 2700K | 31W | 3140lm | Trailing edge |
|
|||
| 2700K | 31W | 3410lm | Trailing edge |
|
|||
| 3000K | 30W | 3390lm | DALI-2 |
|
|||
| 3000K | 31W | 3390lm | Sensor Dim |
|
|||
| 3000K | 31W | 3390lm | Trailing edge |
|
|||
| 3000K | 30W | 3680lm | DALI-2 |
|
|||
| 3000K | 31W | 3680lm | Sensor Dim |
|
|||
| 3000K | 31W | 3680lm | Trailing edge |
|
|||
| 4000K | 31W | 3490lm | Trailing edge |
|
|||
| 4000K | 30W | 3790lm | DALI-2 |
|
|||
| 4000K | 31W | 3790lm | Sensor Dim |
|
|||
| 4000K | 31W | 3790lm | Trailing edge |
|
Black
White
Black
Black
Black
Sorry, we couldn’t find what you are looking for.
| Others | Tools | ||||||
|---|---|---|---|---|---|---|---|
| 2700K | 31W | 3140lm | Trailing edge |
|
|||
| 2700K | 31W | 3410lm | Trailing edge |
|
|||
| 3000K | 30W | 3390lm | DALI-2 |
|
|||
| 3000K | 31W | 3390lm | Sensor Dim |
|
|||
| 3000K | 31W | 3390lm | Trailing edge |
|
|||
| 3000K | 30W | 3680lm | DALI-2 |
|
|||
| 3000K | 31W | 3680lm | Sensor Dim |
|
|||
| 3000K | 31W | 3680lm | Trailing edge |
|
|||
| 4000K | 31W | 3490lm | Trailing edge |
|
|||
| 4000K | 30W | 3790lm | DALI-2 |
|
|||
| 4000K | 31W | 3790lm | Sensor Dim |
|
|||
| 4000K | 31W | 3790lm | Trailing edge |
|
Sorry, we couldn’t find what you are looking for.
Accessories
| Image | Article code | Description | Dimensions | Tools |
|---|---|---|---|---|
| Disc/Frosta Black Pendant Adapter Aluminium | L5000 x W102 x H22 | |||
| Disc/Frosta White Pendant Adapter Aluminium | L5000 x W102 x H22 | |||
| Emergency battery 3 Hours 3.0Ah - Model No: B093 | L137 x W27 x H27 |
