Disc 285x285

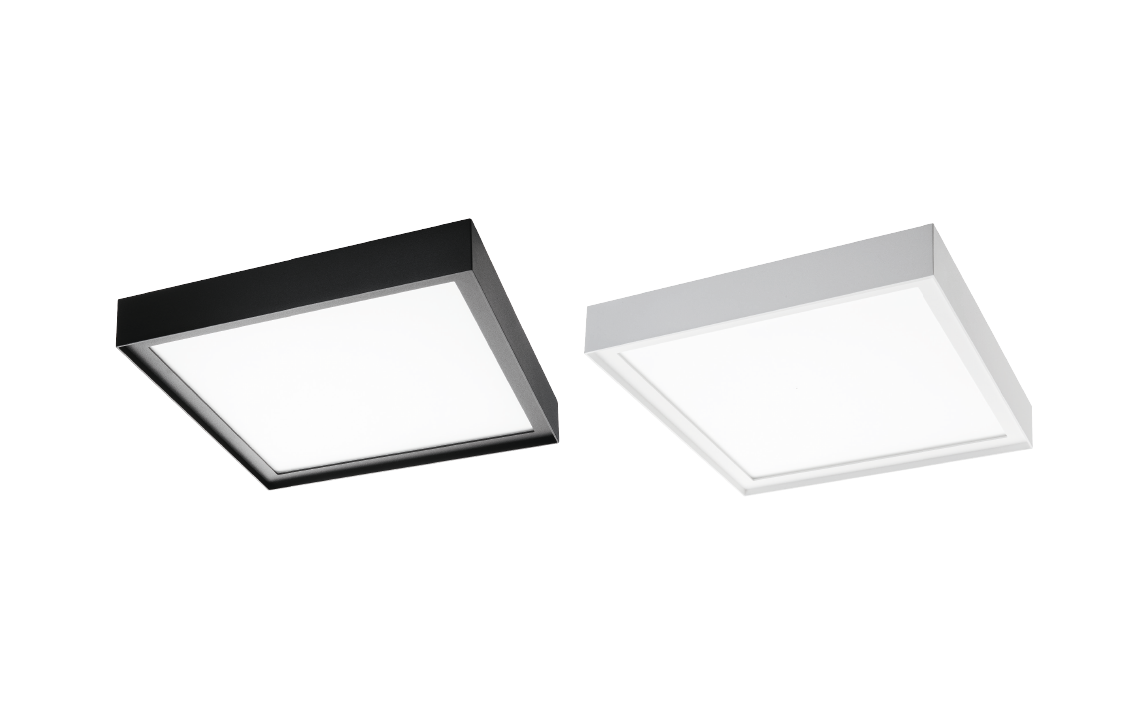

Energy efficient surface-mounted LED luminaire with a slim profile ensuring a modern look. Square and round available in multiple sizes and lumens. Opalprismatic diffuser provides a glare-free light. The luminaire is produced in a matt black or white powder-coated aluminium finish. Dimmable using a DALI or phase control dimmer. We recommend LEDDim 400 and LEDDim Smart. Simple installation with quick connections between fixture and back plate that can be screwed straight onto all known ceiling boxes. Visible cabling also possible. Also supplied with a sensor and/or emergency light.

Article list

Disc 285x285

Indoor Direct Surface SDCM: 3 Class II IK10 IP20 Ra>80 Beam angle: 85° L80/B20> 100,000

Filters

Color

Colour temperature

System wattage

Lumen

Control gear

Filters

					Others	Tools
606075	2700K	20W	2000lm	DALI-2	100 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606080	2700K	20W	2000lm	Emergency 3H/trailing edge	100 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606072	2700K	20W	2000lm	Sensor Dim	100 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606069	2700K	20W	2000lm	Trailing edge	100 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606058	2700K	22W	2080lm	DALI-2 / Push Dim	95 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606063	2700K	22W	2080lm	Emergency 3H/trailing edge	95 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606055	2700K	22W	2080lm	Sensor Dim	95 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606052	2700K	22W	2080lm	Trailing edge	95 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606076	3000K	20W	2100lm	DALI-2 / Push Dim	105 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606081	3000K	20W	2100lm	Emergency 3H/trailing edge	105 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606070	3000K	20W	2100lm	Trailing edge	105 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606059	3000K	20W	2280lm	DALI-2 / Push Dim	114 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606064	3000K	20W	2280lm	Emergency 3H/trailing edge	114 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606056	3000K	22W	2190lm	Sensor Dim	100 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606053	3000K	20W	2280lm	Trailing edge	114 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

					Others	Tools
606075	2700K	20W	2000lm	DALI-2	100 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606080	2700K	20W	2000lm	Emergency 3H/trailing edge	100 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606072	2700K	20W	2000lm	Sensor Dim	100 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606069	2700K	20W	2000lm	Trailing edge	100 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606058	2700K	22W	2080lm	DALI-2 / Push Dim	95 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606063	2700K	22W	2080lm	Emergency 3H/trailing edge	95 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606055	2700K	22W	2080lm	Sensor Dim	95 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606052	2700K	22W	2080lm	Trailing edge	95 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606076	3000K	20W	2100lm	DALI-2 / Push Dim	105 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606081	3000K	20W	2100lm	Emergency 3H/trailing edge	105 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606070	3000K	20W	2100lm	Trailing edge	105 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606059	3000K	20W	2280lm	DALI-2 / Push Dim	114 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606064	3000K	20W	2280lm	Emergency 3H/trailing edge	114 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606056	3000K	22W	2190lm	Sensor Dim	100 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606053	3000K	20W	2280lm	Trailing edge	114 lm/W, L283 x W283 x H55, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
606095	Disc/Frosta Black Pendant Adapter	L5000 x W102 x H22	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606094	Disc/Frosta White Pendant Adapter	L5000 x W102 x H22	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820307	Emergency battery 3 Hours 3.0Ah - Model No: B093	L137 x W27 x H27	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
