Disc 480

Disc 480 Black 3390lm 3000K Ra>80 DALI-2

Article code
606024
EAN
7021986060249
Back to articlelist

Overview

Efficacy
113 lm/W
Lumen
3390lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • dipswitch
  • ik10
  • ip20
  • klasse_2
  • ce
  • enec

Tools

Downloads

Specification sheet 606024 Mounting instruction Disc 480 DALI_User Manual Eulumdat file (ldt) 7021986060249_Disc 480 Black 3390lm 3000K Ra80 DALI-2

See more

Dialux file (uld) 7021986060249_Disc 480 Black 3390lm 3000K Ra80 DALI-2 Relux file (rolf) 7021986060249_Disc_480_Black_3390lm_3000K_Ra_80_DALI-2 ENEC Certificate DISC 480 DALI EPD NEPD-5033-4374_Disc-480 Revit file - Generic Disc 480 - generic Revit file - Face Based Disc 480 - face based CE Declaration Disc 480

How to specify

Text copied to clipboard

Disc 480 Black 3390lm 3000K Ra>80 DALI-2, Article code: 606024, EAN: 7021986060249, IP20, IK10, Electrical: System wattage: 30W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 35, B16: 55, C10: 55, C16: 80, Light technic: Type of light source: LED, Luminous flux: 3390lm, Efficacy: 113 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 85°, UGR: UGR<22, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Aluminium, Colour: Black, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 55, Diameter (mm) D: 470, Weight (kg) gross/net: 4.845 / 4.433, Packaging: Packaging dimensions (mm): 490 x 485 x 60

Electrical

System wattage
30W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 35, B16: 55, C10: 55, C16: 80

Light technic

Type of light source
LED
Luminous flux
3390lm
Efficacy
113 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

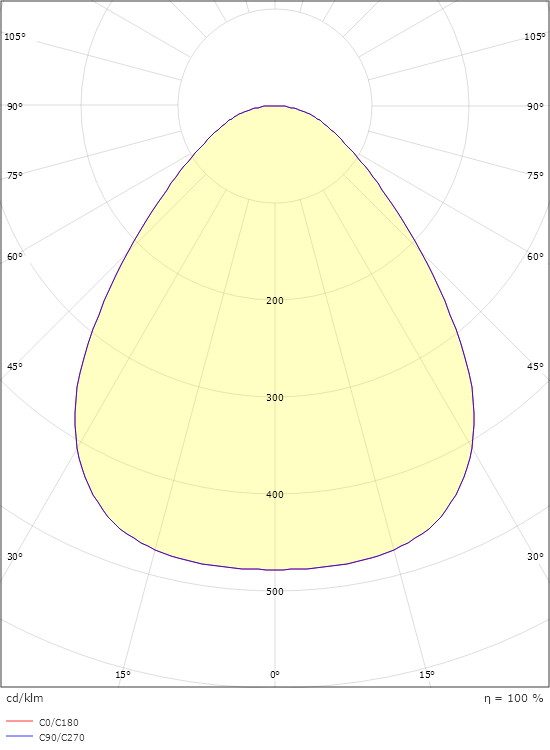

Light distribution
Direct
Optic
Opalprism
Beam angle
85°

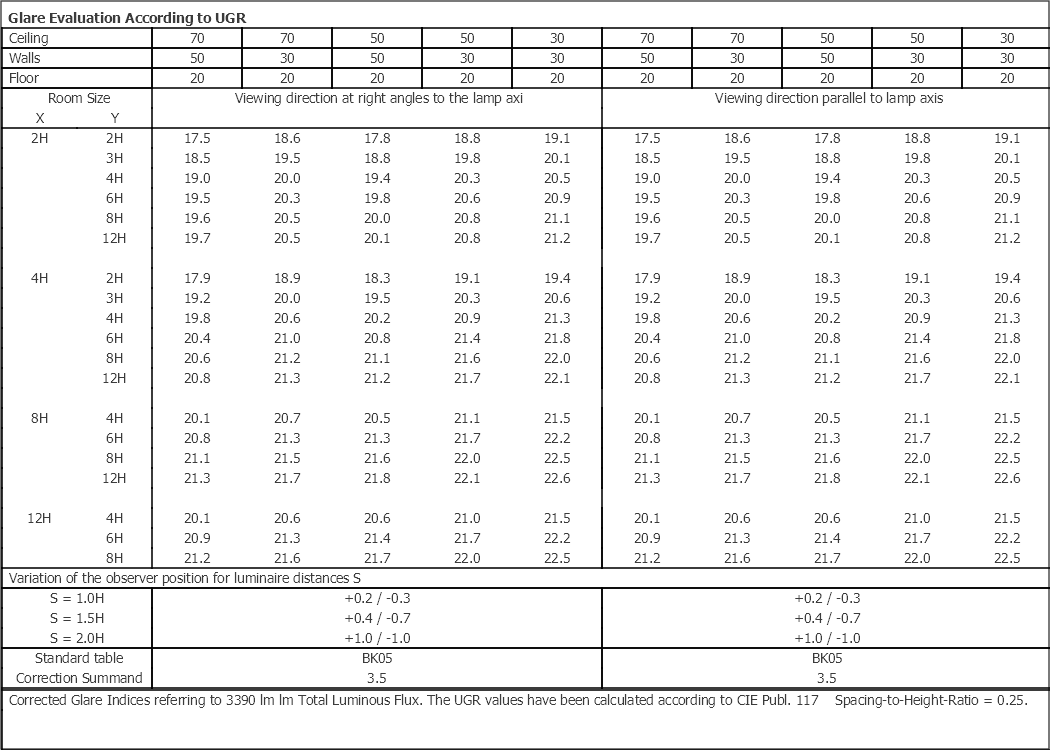

UGR
UGR<22

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Aluminium
Colour
Black
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
55
Diameter (mm) D
470
Weight (kg) gross/net
4.845 / 4.433

Packaging

Packaging dimensions (mm)
490 x 485 x 60
