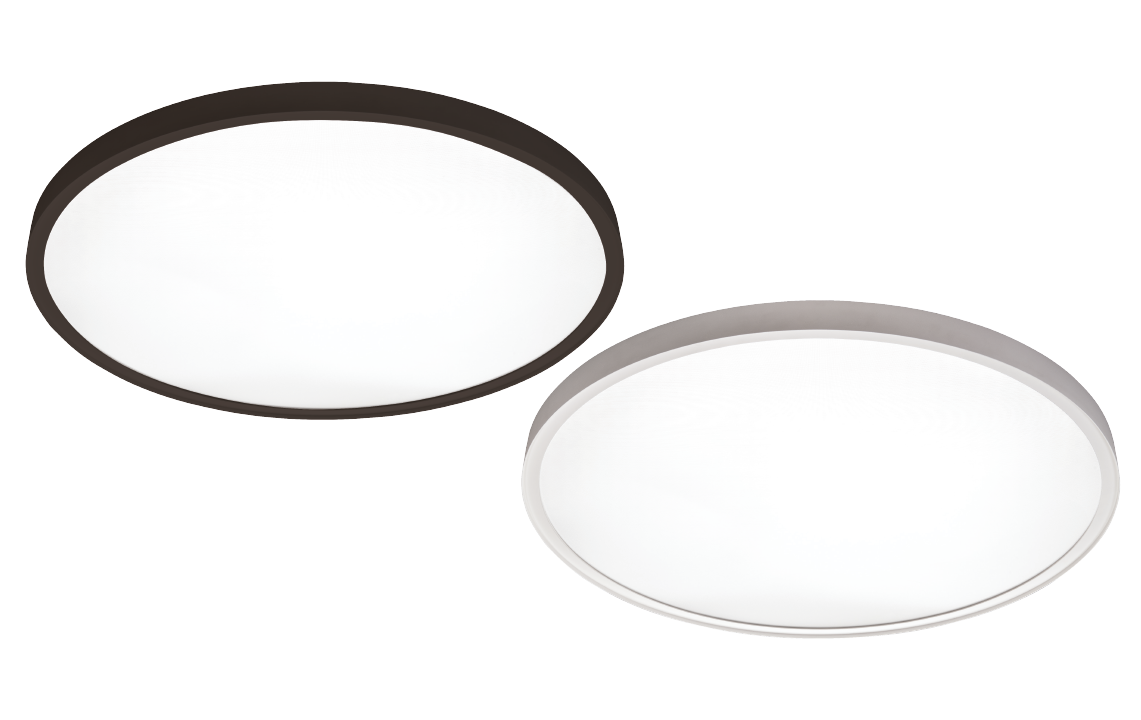

Disc 760
Disc 760 is suitable for large rooms, foyers, meeting rooms, restaurants, etc. Energy-efficient surface LED luminaires with a slim profile for a contemporary look. The Opalprismatic diffuser provides uniform light with low glare, UGR<22. This can be reduced to UGR<19 via the driver dip switches. Dimmable with DALI.Surprisingly, this large, heavy luminaire can be easily fitted by one person, first installing a ceiling bracket for the connection, then a large mounting plate, and then the front with quick connector and bayonet mount. Option for visible cabling.Opal-prismatic diffusor for low glare: UGR 19/22 depending on dip switch settings.
Article list
Disc 760
Filters
| Others | Tools | |||||||
|---|---|---|---|---|---|---|---|---|
| 2700/3000K | 55W | 6230/6330lm | DALI-2 / Push Dim | 84° |
|
|||
| 2700/3000K | 55W | 6910/7130lm | DALI-2 / Push Dim | 87° |
|
|||
| 3000K | 64W | 6870lm | DALI-2 / Push Dim | 83° |
|
|||
| 3000K | 64W | 7040lm | DALI-2 / Push Dim | 88° |
|
|||
| 4000K | 64W | 7360lm | DALI-2 / Push Dim | 83° |
|
|||
| 4000K | 64W | 7540lm | DALI-2 / Push Dim | 88° |
|
Black
White
Sorry, we couldn’t find what you are looking for.
| Others | Tools | |||||||
|---|---|---|---|---|---|---|---|---|
| 2700/3000K | 55W | 6230/6330lm | DALI-2 / Push Dim | 84° |
|
|||
| 2700/3000K | 55W | 6910/7130lm | DALI-2 / Push Dim | 87° |
|
|||
| 3000K | 64W | 6870lm | DALI-2 / Push Dim | 83° |
|
|||
| 3000K | 64W | 7040lm | DALI-2 / Push Dim | 88° |
|
|||
| 4000K | 64W | 7360lm | DALI-2 / Push Dim | 83° |
|
|||
| 4000K | 64W | 7540lm | DALI-2 / Push Dim | 88° |
|
Sorry, we couldn’t find what you are looking for.
Accessories
| Image | Article code | Description | Dimensions | Tools |
|---|---|---|---|---|
| Disc 760 Black Pendantkit Aluminium | L5000 x W102 x H22 | |||
| Disc 760 White Pendantkit Aluminium | L5000 x W102 x H22 | |||
| Sense Surface/Disc 760 2m Wire kit | L2000 |
