EcoLine Office
EcoLine Office 1200 White 4540lm 4000K Ra>80 On/Off
- Article code
- 8246090517
- EAN
- 5703821172417
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 151 lm/W
- Lumen
- 4540lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B10>
- Mounting
- Suspended, Indoor
Electrical
- System wattage
- 30W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
Light technic
- Type of light source
- LED
- Luminous flux
- 4540lm
- Efficacy
- 151 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B10>50,000

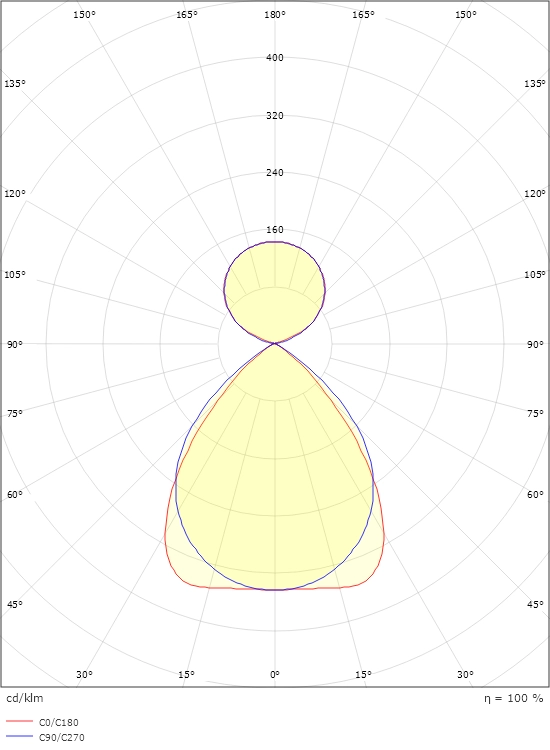

- Light distribution
- Direct/Indirect 60/40%
- Optic
- Double parabolic louvre, satin matt

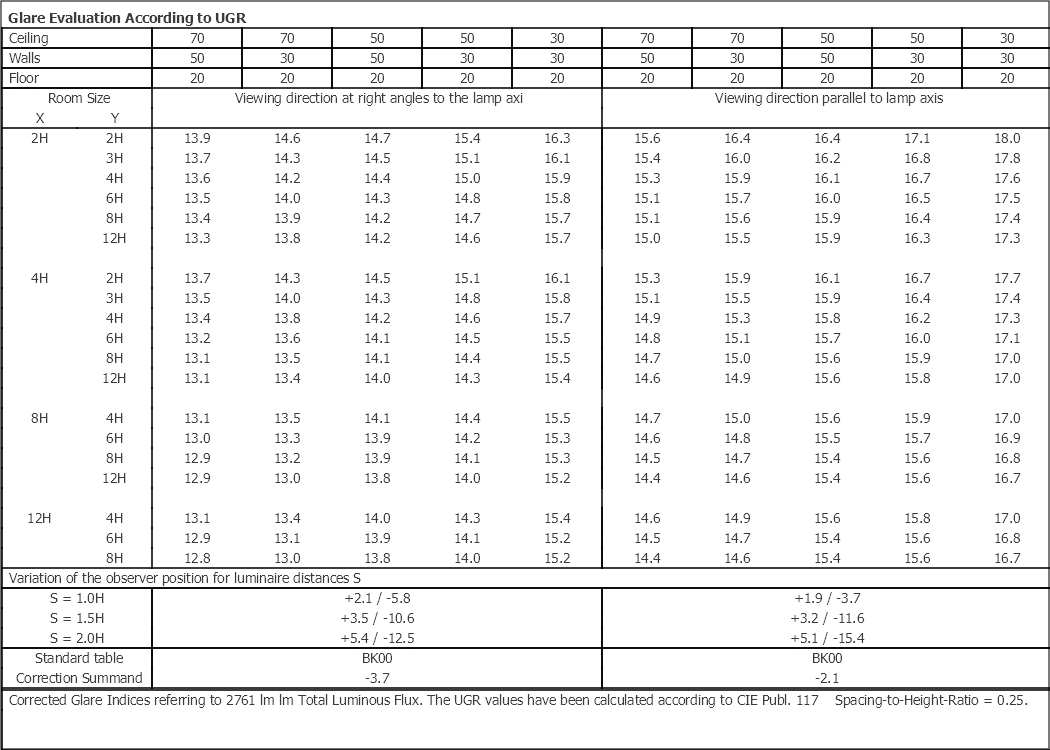

- UGR
- UGR<16
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class I
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Colour
- White (Pure white, 25% gloss)
- Optics
- Aluminium
Mounting/Connection
- Mounting
- Suspended, Indoor
- Module
- 1200
- Wire set
- 2x2m wire kit w/loop M13 w/2 brackets
- Cable
- Cable 3x0,75mm² 2,5m w/ Schuko white
- Connection
- Screwless terminal block
Dimensions
- Length (mm) L
- 1200
- Width (mm) W
- 142
- Height (mm) H
- 81
- Weight (kg) gross/net
- 6.2 / 6
Packaging
- Packaging dimensions (mm)
- 1255 x 146 x 95
