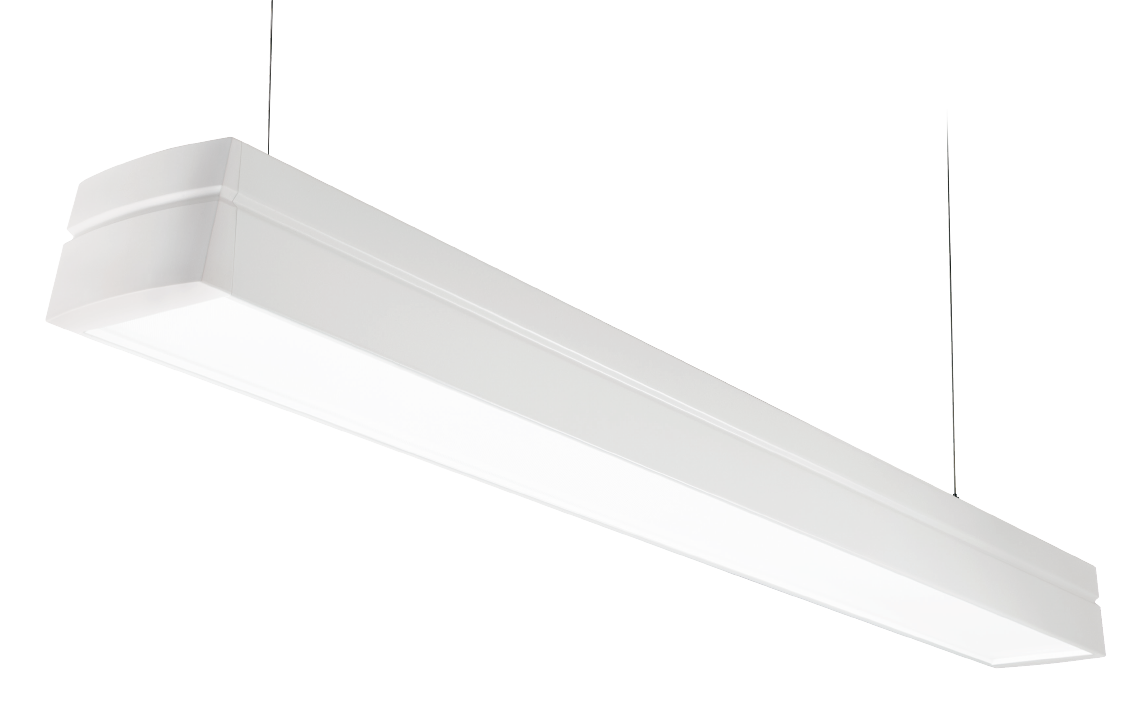

Facet II

Facet II is a slim, minimalistic luminaire with white powdercoating. With the direct/indirect light and glare-free optics in PMMA it is perfect for classrooms or open offices where light comfort is very important. The wall bracket (accessory) makes it a prefect choice for blackboard lighting. Plug-and-play solution for quick installation.

Article list

Facet II

Indoor Suspended SDCM: 3 Class I IP20 Ra>80 L80/B10> 100,000

Filters

Module

Colour temperature

System wattage

Lumen

Control gear

Filters

						Others	Tools
8241000572	1700	3000K	52W	8450lm	DALI-2	Direct/Indirect 58/42%, 163 lm/W, L1756 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090313	1200	3000K	29W	4500lm	DALI-2	Direct/Indirect 65/35%, 155 lm/W, L1196 x W112 x H80, Cable 5x0,75mm² 2,5m, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD Info Mounting instruction (PDF) (Opens in new tab) EPD
8246090339	1700	3000K	53W	6760lm	DALI-2	Direct/Indirect 30/70%, 128 lm/W, L1756 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090737	1200	3000K	18W	2020lm	DALI-2	Direct/Asymmetric, 112 lm/W, L1196 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090326	1200	3000K	18W	2020lm	On/Off	Direct/Asymmetric, 112 lm/W, L1196 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090397	1200	3000K	29W	4500lm	On/Off	Direct/Indirect 65/35%, 155 lm/W, L1196 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD Info Mounting instruction (PDF) (Opens in new tab) EPD
8246090423	1700	3000K	53W	6760lm	On/Off	Direct/Indirect 30/70%, 128 lm/W, L1756 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090410	1200	4000K	29W	4700lm	DALI-2	Direct/Indirect 65/35%, 162 lm/W, L1196 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD Info Mounting instruction (PDF) (Opens in new tab) EPD
8246090449	1700	4000K	53W	7120lm	DALI-2	Direct/Indirect 30/70%, 134 lm/W, L1756 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090740	1200	4000K	18W	2120lm	DALI-2	Direct/Asymmetric, 118 lm/W, L1196 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090384	1200	4000K	18W	2120lm	On/Off	Direct/Asymmetric, 118 lm/W, L1196 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090407	1200	4000K	29W	4700lm	On/Off	Direct/Indirect 65/35%, 162 lm/W, L1196 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD Info Mounting instruction (PDF) (Opens in new tab) EPD
8246090436	1700	4000K	53W	7120lm	On/Off	Direct/Indirect 30/70%, 134 lm/W, L1756 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

						Others	Tools
8241000572	1700	3000K	52W	8450lm	DALI-2	Direct/Indirect 58/42%, 163 lm/W, L1756 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090313	1200	3000K	29W	4500lm	DALI-2	Direct/Indirect 65/35%, 155 lm/W, L1196 x W112 x H80, Cable 5x0,75mm² 2,5m, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD Info Mounting instruction (PDF) (Opens in new tab) EPD
8246090339	1700	3000K	53W	6760lm	DALI-2	Direct/Indirect 30/70%, 128 lm/W, L1756 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090737	1200	3000K	18W	2020lm	DALI-2	Direct/Asymmetric, 112 lm/W, L1196 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090326	1200	3000K	18W	2020lm	On/Off	Direct/Asymmetric, 112 lm/W, L1196 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090397	1200	3000K	29W	4500lm	On/Off	Direct/Indirect 65/35%, 155 lm/W, L1196 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD Info Mounting instruction (PDF) (Opens in new tab) EPD
8246090423	1700	3000K	53W	6760lm	On/Off	Direct/Indirect 30/70%, 128 lm/W, L1756 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090410	1200	4000K	29W	4700lm	DALI-2	Direct/Indirect 65/35%, 162 lm/W, L1196 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD Info Mounting instruction (PDF) (Opens in new tab) EPD
8246090449	1700	4000K	53W	7120lm	DALI-2	Direct/Indirect 30/70%, 134 lm/W, L1756 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090740	1200	4000K	18W	2120lm	DALI-2	Direct/Asymmetric, 118 lm/W, L1196 x W112 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090384	1200	4000K	18W	2120lm	On/Off	Direct/Asymmetric, 118 lm/W, L1196 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090407	1200	4000K	29W	4700lm	On/Off	Direct/Indirect 65/35%, 162 lm/W, L1196 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD Info Mounting instruction (PDF) (Opens in new tab) EPD
8246090436	1700	4000K	53W	7120lm	On/Off	Direct/Indirect 30/70%, 134 lm/W, L1756 x W112 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
212198	Black T-carrier ceiling bracket	L30 x W20 x H5	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212255	T-profil White Suspension Rail 600mm	L596 x W35 x H17	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044007	Facet II White Wall bracket kit	L490 x W70 x H70	Info Mounting instruction (PDF) (Opens in new tab) EPD Info Mounting instruction (PDF) (Opens in new tab) EPD
820307	Emergency battery 3 Hours 3.0Ah - Model No: B093	L137 x W27 x H27	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042724	Ceiling box 2x2m Wire kit		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

References

References

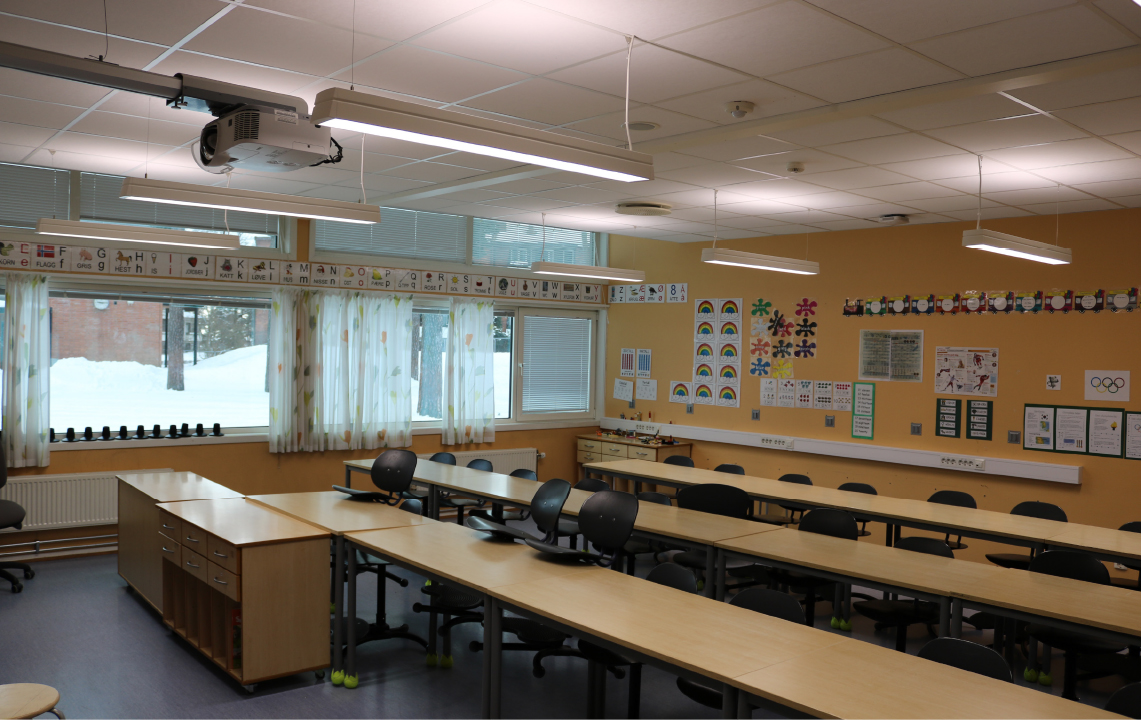

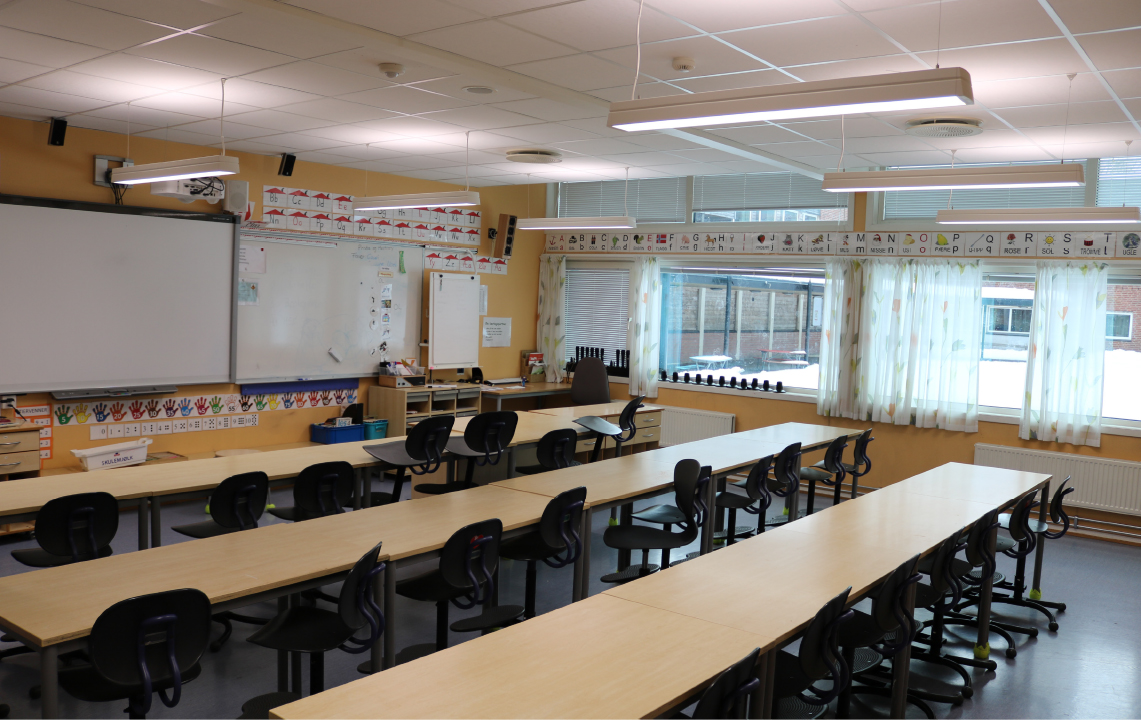

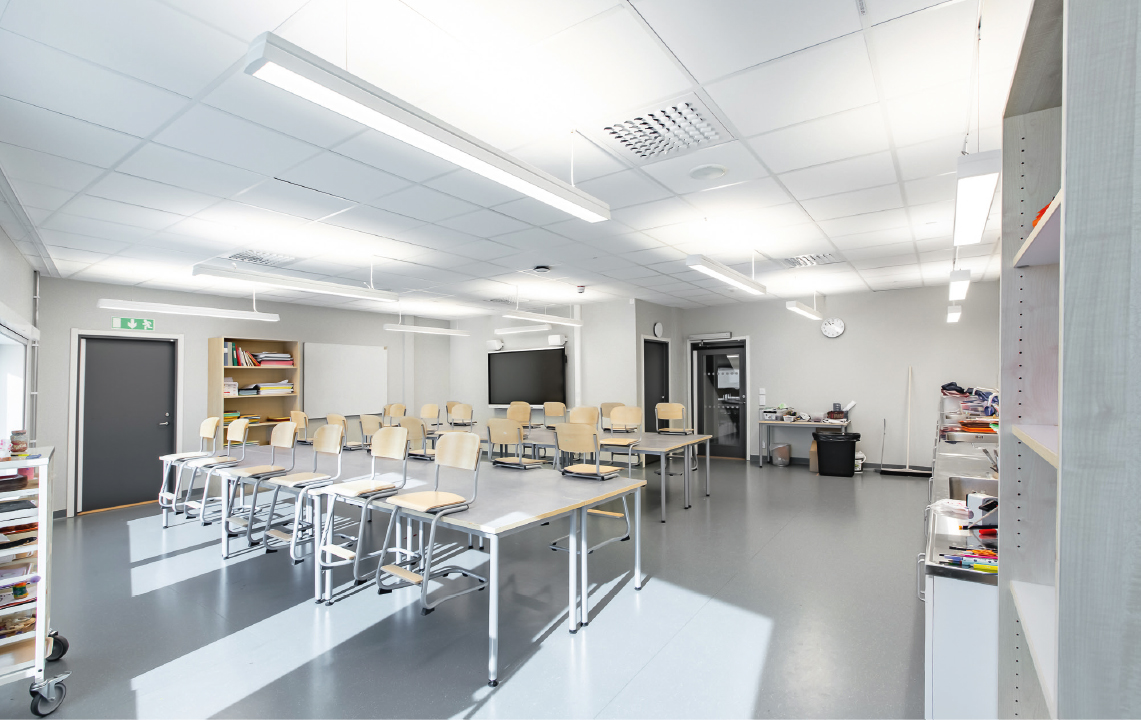

Åbyskolan is a brand new municipal primary school in Haninge municipality that was completed in autumn 2020.

Discover more
References

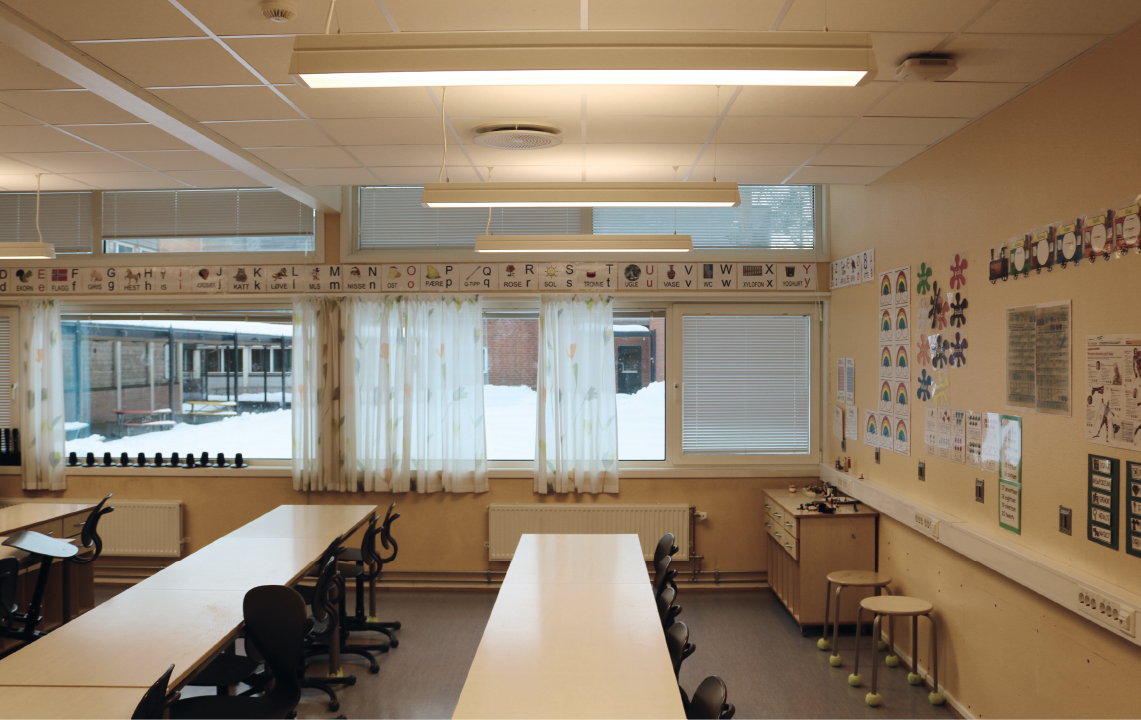

The time had come to renovate the interior of the classic Brynäs School from 1905, which had been empty for many years, and also to build a new dining room building and sports hall.

Discover more
References

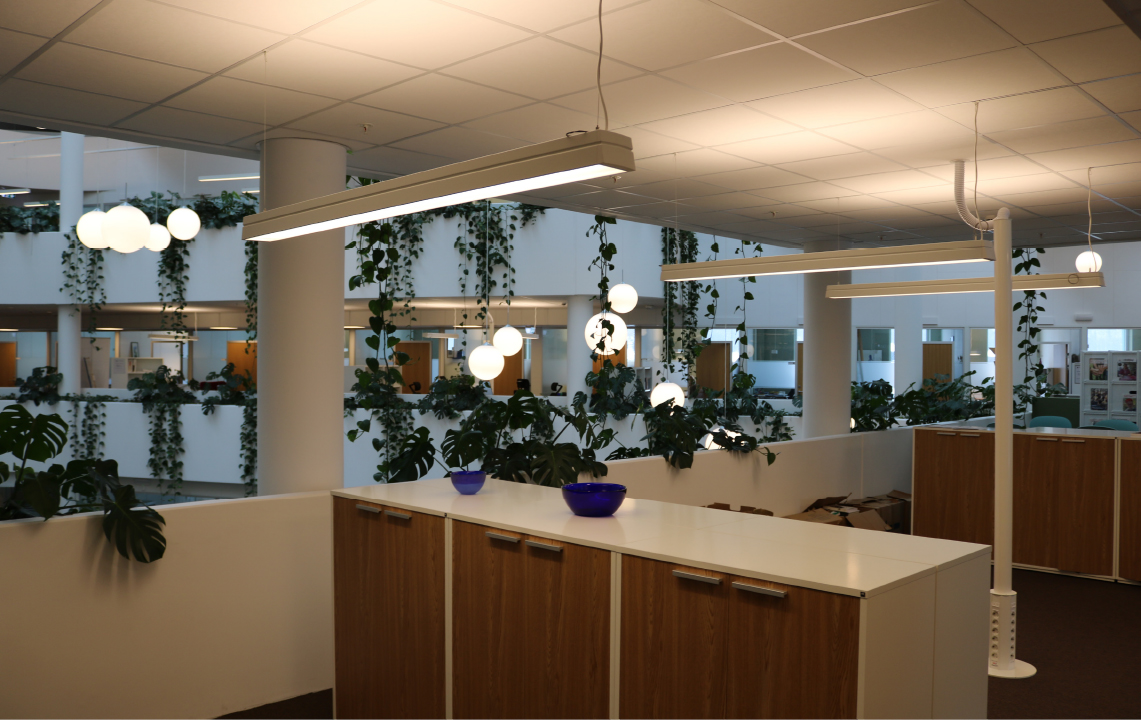

Delta Porsgrunn is a 5000 m² office building. The office concept will facilitate the development of a unified environment for higher education, research, public administration and private business.

Discover more
