EcoLine Office

EcoLine Office 1200 White 2450lm 4000K Ra>80 On/Off

Article code
8246089573
EAN
5703821176187
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
136 lm/W
Lumen
2450lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B10>
Mounting
Suspended or surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246089573 Eulumdat file (ldt) 5703821176187_EcoLine Office 1200 White 2450lm 4000K Ra80 OnOff Dialux file (uld) 5703821176187_EcoLine Office 1200 White 2450lm 4000K Ra80 OnOff

See more

Relux file (rolf) 5703821176187_EcoLine_Office_1200_White_2450lm_4000K_Ra_80_On_Off EPD NEPD-4990-4335_EcoLine-Office-1200 Revit file - Generic Box Lean D - Generic Revit file - Ceiling Based Box Lean D - Ceiling based Mounting instruction EcoLine Office_User Manual CE Declaration EcoLine Office

How to specify

Text copied to clipboard

EcoLine Office 1200 White 2450lm 4000K Ra>80 On/Off, Article code: 8246089573, EAN: 5703821176187, IP20, Electrical: System wattage: 18W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 2450lm, Efficacy: 136 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>50,000, Light distribution: Direct, Optic: Double parabolic louvre, satin matt, UGR: UGR<19, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White (Pure white, 25% gloss), Optics: Aluminium, Mounting/Connection: Mounting: Suspended or surface, Indoor, Module: 1200, Connection: Screwless terminal block, Dimensions: Length (mm) L: 1200, Width (mm) W: 142, Height (mm) H: 63, Weight (kg) gross/net: 5.7 / 5.5, Packaging: Packaging dimensions (mm): 1215 x 146 x 68

Electrical

System wattage
18W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
2450lm
Efficacy
136 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>50,000

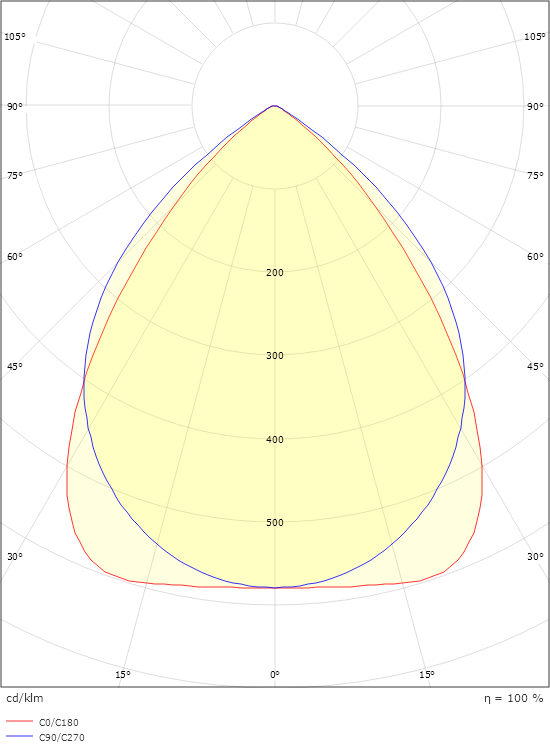

Light distribution
Direct
Optic
Double parabolic louvre, satin matt
UGR
UGR<19

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White (Pure white, 25% gloss)
Optics
Aluminium

Mounting/Connection

Mounting
Suspended or surface, Indoor
Module
1200
Connection
Screwless terminal block

Dimensions

Length (mm) L
1200
Width (mm) W
142
Height (mm) H
63
Weight (kg) gross/net
5.7 / 5.5

Packaging

Packaging dimensions (mm)
1215 x 146 x 68
