EcoLine Office
EcoLine Office 1200 White 3840lm 4000K Ra>80 On/Off
- Article code
- 8246089654
- EAN
- 5703821172370
Overview
- Efficacy
- 137 lm/W
- Lumen
- 3840lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B10>
- Mounting
- Suspended or surface, Indoor
Electrical
- System wattage
- 28W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Leakage current (mA)
- 0.55
Light technic
- Type of light source
- LED
- Luminous flux
- 3840lm
- Efficacy
- 137 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B10>50,000

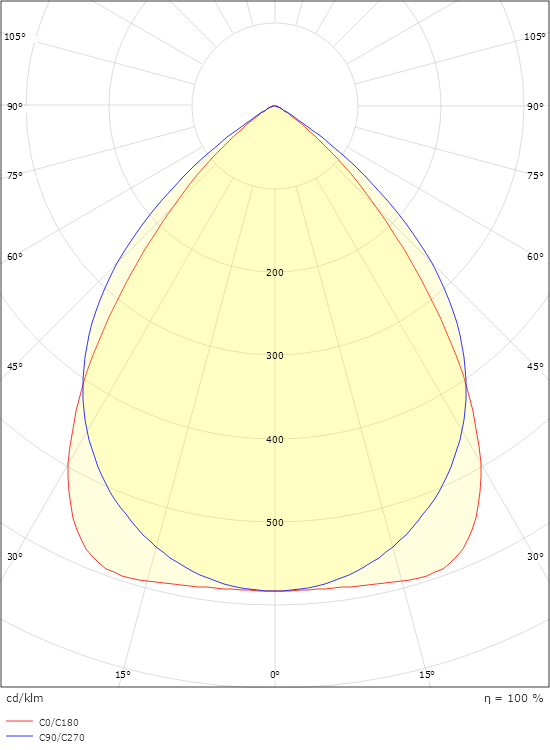

- Light distribution
- Direct
- Optic
- Double parabolic louvre, satin matt

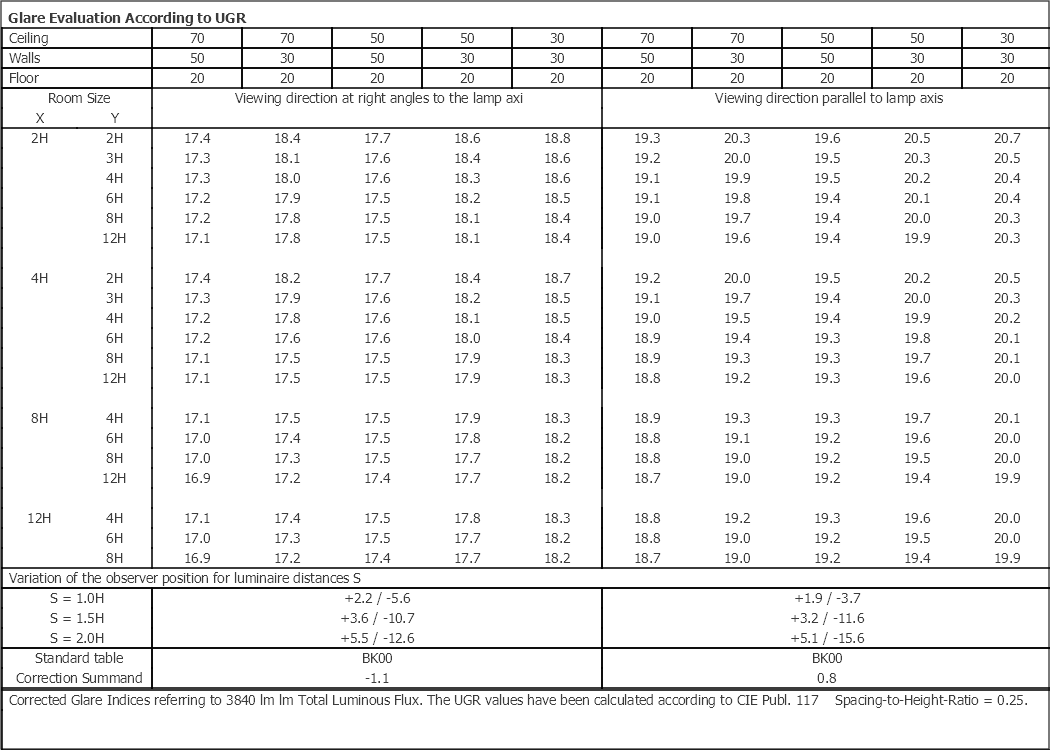

- UGR
- UGR<19
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class I
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- BVB
- Yes
- Sunda Hus
- B
Materials and finish
- Housing
- Sheet steel
- Colour
- White (Pure white, 25% gloss)
- Optics
- Aluminium
Mounting/Connection
- Mounting
- Suspended or surface, Indoor
- Module
- 1200
- Connection
- Screwless terminal block
Dimensions
- Length (mm) L
- 1200
- Width (mm) W
- 142
- Height (mm) H
- 63
- Weight (kg) gross/net
- 5.7 / 5.5
Packaging
- Packaging dimensions (mm)
- 1215 x 146 x 68
