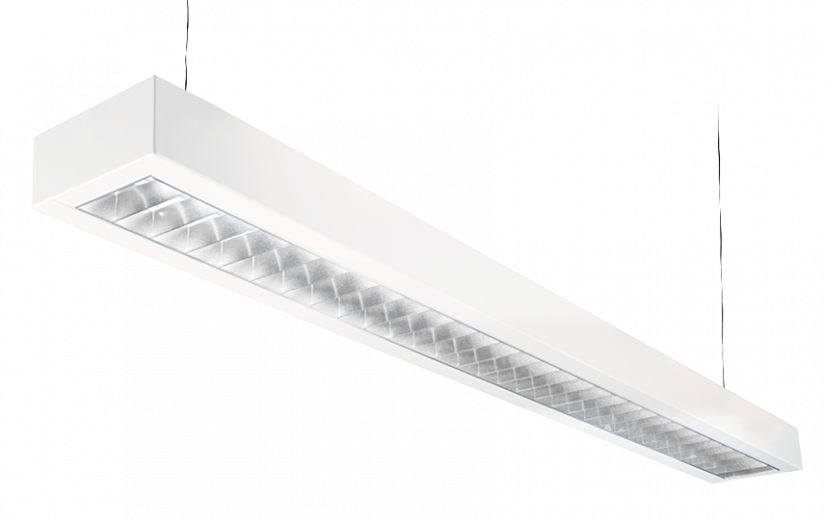

EcoLine Office

EcoLine Office 1200 3890lm 4000K Ra>80 DALI-2 / Push Dim

Article code
8246089667
EAN
5703821172387
Back to articlelist

Overview

Efficacy
139 lm/W
Lumen
3890lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B10>
Mounting
Suspended or surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246089667 Eulumdat file (ldt) 5703821172387_EcoLine Office 1200 White 3840lm 4000K Ra80 DALI Push Dim Dialux file (uld) 5703821172387_EcoLine Office 1200 White 3840lm 4000K Ra80 DALI Push Dim

See more

Relux file (rolf) 5703821172387_EcoLine_Office_1200_White_3840lm_4000K_Ra_80_DALI___Push_Dim EPD EcoLine-Office-1200-28W Revit file - Generic Box Lean D - Generic Revit file - Ceiling Based Box Lean D - Ceiling based Mounting instruction EcoLine Office_User Manual CE Declaration EcoLine Office

How to specify

Text copied to clipboard

EcoLine Office 1200 3890lm 4000K Ra>80 DALI-2 / Push Dim, Article code: 8246089667, EAN: 5703821172387, IP20, Electrical: System wattage: 28W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 17, B16: 28, C10: 27, C16: 45, Leakage current (mA): 0.30, Light technic: Type of light source: LED, Luminous flux: 3890lm, Efficacy: 139 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>50,000, Light distribution: Direct, Optic: Double parabolic louvre, satin matt, UGR: UGR<19, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: B, Materials and finish: Housing: Sheet steel, Optics: Aluminium, Mounting/Connection: Mounting: Suspended or surface, Indoor, Module: 1200, Connection: Screwless terminal block, Dimensions: Length (mm) L: 1200, Width (mm) W: 142, Height (mm) H: 63, Weight (kg) gross/net: 5.7 / 5.5, Packaging: Packaging dimensions (mm): 1215 x 146 x 68

Electrical

System wattage
28W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 17, B16: 28, C10: 27, C16: 45
Leakage current (mA)
0.30

Light technic

Type of light source
LED
Luminous flux
3890lm
Efficacy
139 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>50,000

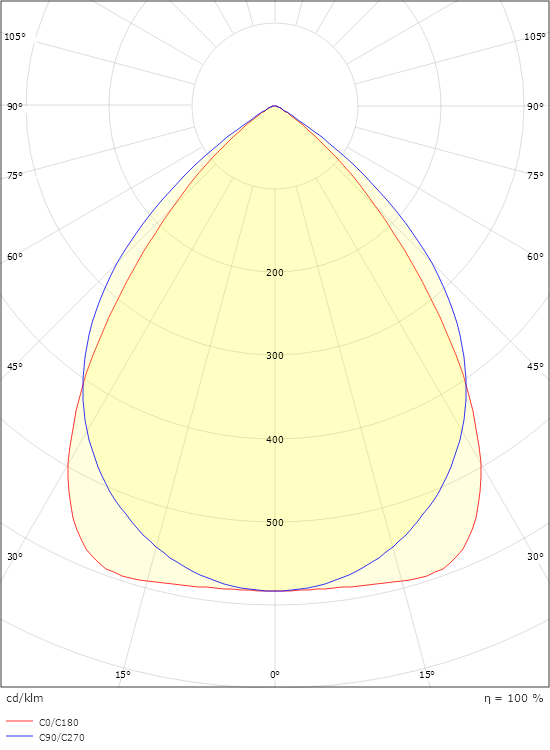

Light distribution
Direct
Optic
Double parabolic louvre, satin matt
UGR
UGR<19

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
B

Materials and finish

Housing
Sheet steel
Optics
Aluminium

Mounting/Connection

Mounting
Suspended or surface, Indoor
Module
1200
Connection
Screwless terminal block

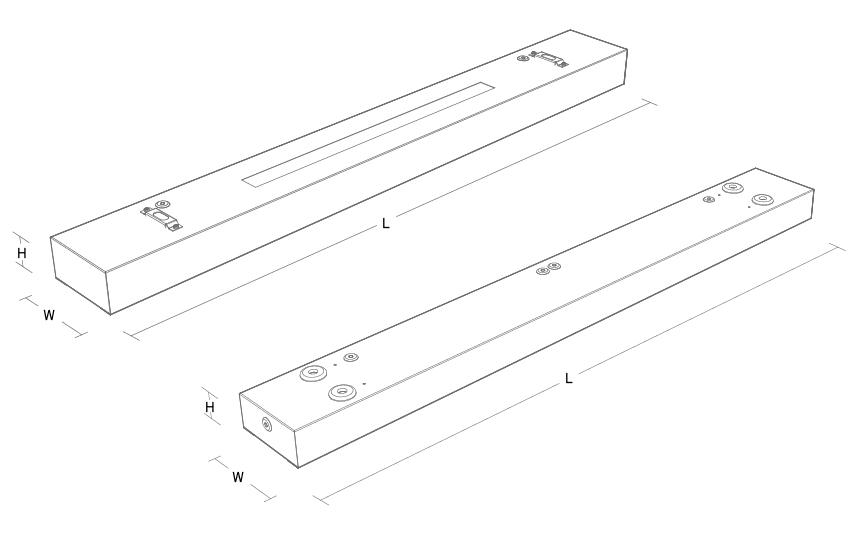

Dimensions

Length (mm) L
1200
Width (mm) W
142
Height (mm) H
63
Weight (kg) gross/net
5.7 / 5.5

Packaging

Packaging dimensions (mm)
1215 x 146 x 68
