Frosta 480

Frosta 480 White 2290lm 3000K Ra>80 Sensor Dim

Article code
211713
EAN
7021982117138
Back to articlelist

Overview

Efficacy
135 lm/W
Lumen
2290lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B10>
Mounting
Surface, Indoor
  • indoor
  • dipswitch
  • ik08
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 211713 Revit file - Generic Frosta 480 - generic Revit file - Face Based Frosta 480 - face based

See more

Mounting instruction Frosta Sensor Dim_User Manual Eulumdat file (ldt) 7021982117138_Frosta 480 White 2290lm 3000K Ra80 Sensor Dim Dialux file (uld) 7021982117138_Frosta 480 White 2290lm 3000K Ra80 Sensor Dim Relux file (rolf) 7021982117138_Frosta_480_White_2290lm_3000K_Ra_80_Sensor_Dim EPD Frosta-480-Sensor-Dim CE Declaration Frosta 480

How to specify

Text copied to clipboard

Frosta 480 White 2290lm 3000K Ra>80 Sensor Dim, Article code: 211713, EAN: 7021982117138, IP20, IK08, Electrical: System wattage: 17W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 43, B16: 69, C10: 68, C16: 110, Light technic: Type of light source: LED, Luminous flux: 2290lm, Efficacy: 135 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Lifetime: L90>60,000, Light distribution: Direct/Indirect 92/8%, Optic: Acrylic diffuser, Beam angle: 117°, Photobiological safety: RG 0, Control/Dimming: Type: Sensor Dim, Protection: Luminaire class: Class II, IK Class: IK08, IP Class: IP20, Energy and approvals: Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 90, Diameter (mm) D: 480, Weight (kg) gross/net: 4.94 / 2.65, Packaging: Packaging dimensions (mm): 570 x 560 x 155

Electrical

System wattage
17W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 43, B16: 69, C10: 68, C16: 110

Light technic

Type of light source
LED
Luminous flux
2290lm
Efficacy
135 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000
Lifetime
L90>60,000

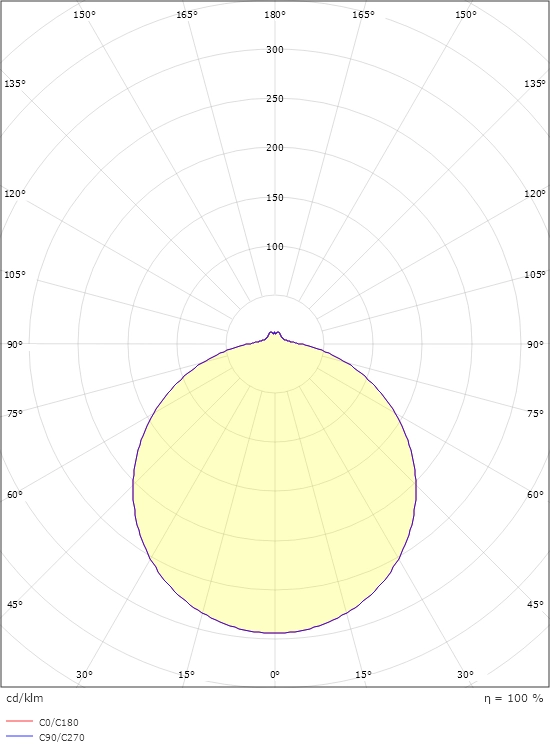

Light distribution
Direct/Indirect 92/8%
Optic
Acrylic diffuser
Beam angle
117°
Photobiological safety
RG 0

Control/Dimming

Type
Sensor Dim

Protection

Luminaire class
Class II
IK Class
IK08
IP Class
IP20

Energy and approvals

Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Steel
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
90
Diameter (mm) D
480
Weight (kg) gross/net
4.94 / 2.65

Packaging

Packaging dimensions (mm)
570 x 560 x 155
