Inspire R

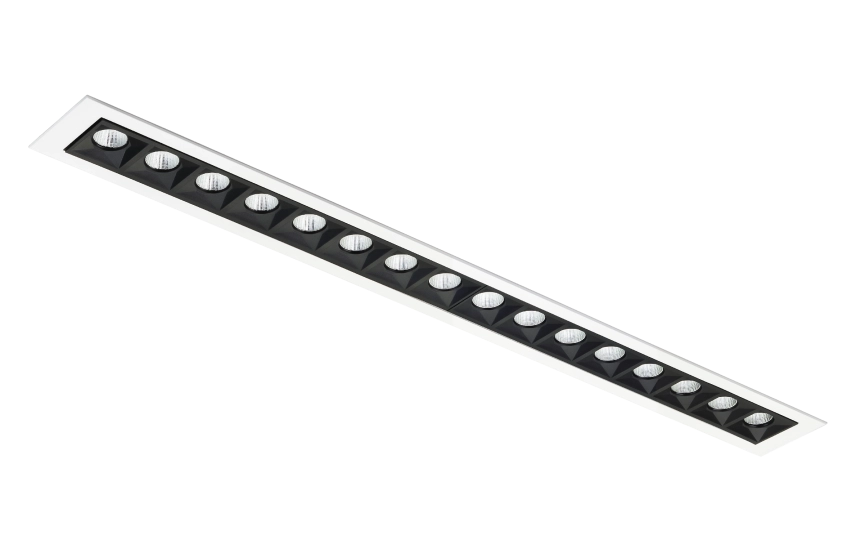

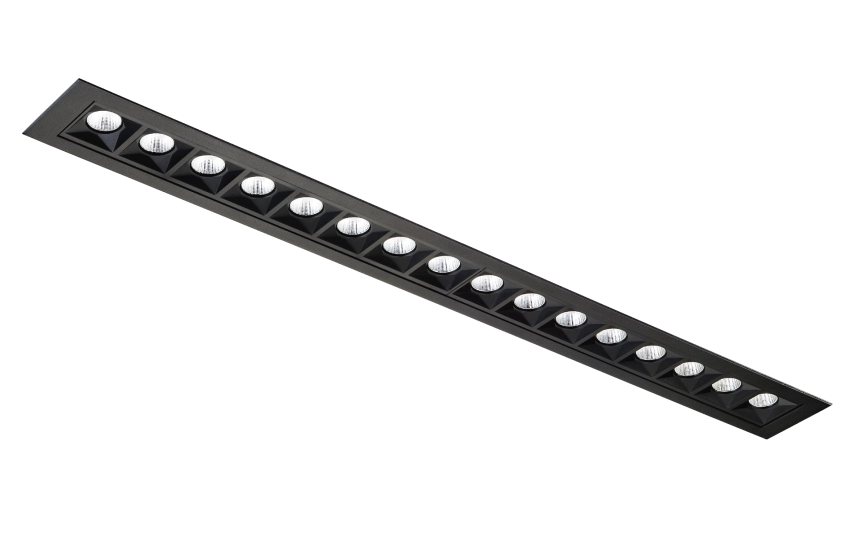

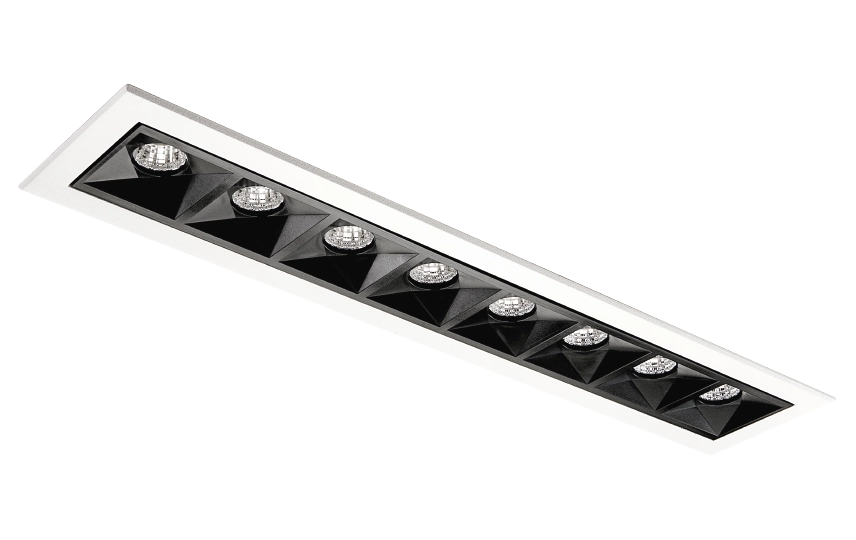

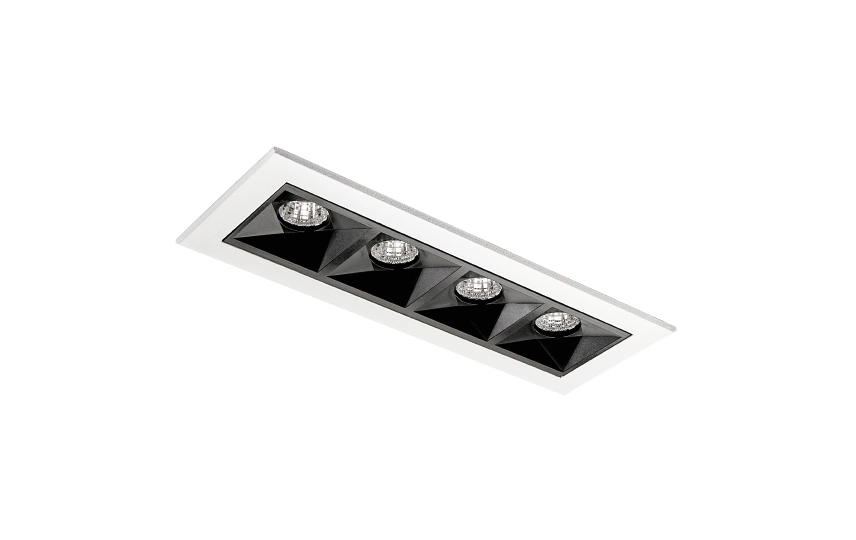

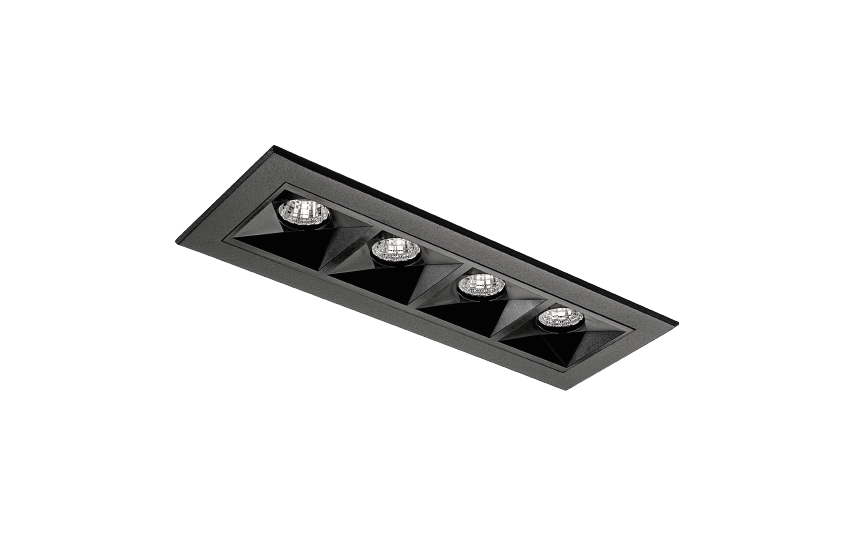

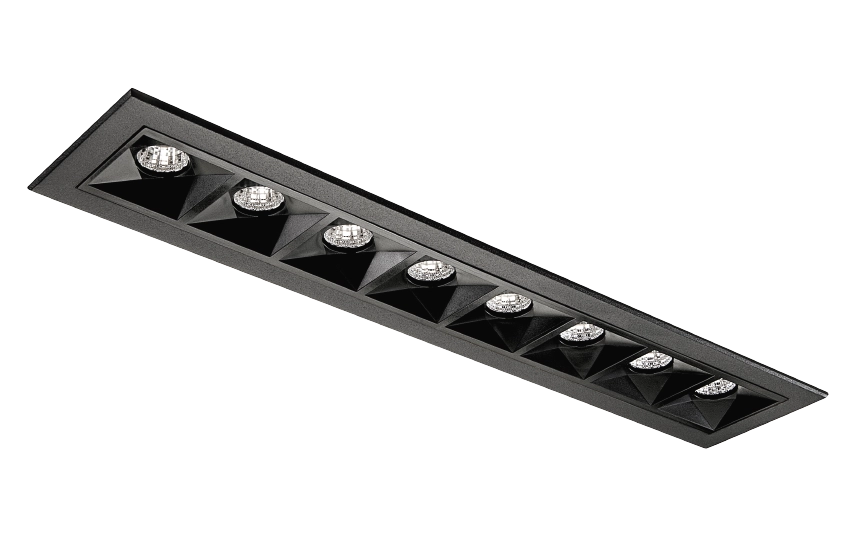

Inspire R is a rectangular recessed downlight for indoor use. With cubist black reflectors it has very low glare and harmonious non-flickering light with a well-defined light pattern.Inspire R is suitable for use in high-end residential and commercial environments.

Article list

Inspire R

Indoor Direct Recessed SDCM: 2, 3 Class II SELV IP20 Ra 98, Ra>80 Beam angle: 55°, 60° L90/B10> 100,000, L70/B10> 100,000

Filters

Color

Version

Colour temperature

System wattage

Lumen

Control gear

Filters

						Others	Tools
212422	150	2700K	8W	450lm	DALI-2 / Push Dim	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212428	300	2700K	15W	900lm	DALI-2 / Push Dim	60 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212421	150	2700K	8W	450lm	Trailing edge	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212427	300	2700K	15W	900lm	Trailing edge	60 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212416	150	2700K	8W	450lm	DALI-2 / Push Dim	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212434	300	2700K	15W	900lm	DALI-2 / Push Dim	60 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212415	150	2700K	8W	450lm	Trailing edge	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212433	300	2700K	15W	900lm	Trailing edge	60 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212424	150	3000K	8W	470lm	DALI-2 / Push Dim	59 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212430	300	3000K	15W	950lm	DALI-2 / Push Dim	63 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212423	150	3000K	8W	470lm	Trailing edge	59 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212429	300	3000K	15W	950lm	Trailing edge	63 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320900		3000K	23W	2980lm	Trailing edge / Linect	130 lm/W, L595 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212418	150	3000K	8W	470lm	DALI-2 / Push Dim	59 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212436	300	3000K	15W	950lm	DALI-2 / Push Dim	63 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212417	150	3000K	8W	470lm	Trailing edge	59 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212435	300	3000K	15W	950lm	Trailing edge	63 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320904		3000K	23W	2980lm	Trailing edge / Linect	130 lm/W, L595 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212426	150	4000K	8W	490lm	DALI-2 / Push Dim	61 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212432	300	4000K	15W	980lm	DALI-2 / Push Dim	65 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212425	150	4000K	8W	490lm	Trailing edge	61 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212431	300	4000K	15W	980lm	Trailing edge	65 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212420	150	4000K	8W	490lm	DALI-2 / Push Dim	61 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212438	300	4000K	15W	980lm	DALI-2 / Push Dim	65 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212419	150	4000K	8W	490lm	Trailing edge	61 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212437	300	4000K	15W	980lm	Trailing edge	65 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
212422	150	2700K	8W	450lm	DALI-2 / Push Dim	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212428	300	2700K	15W	900lm	DALI-2 / Push Dim	60 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212421	150	2700K	8W	450lm	Trailing edge	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212427	300	2700K	15W	900lm	Trailing edge	60 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212416	150	2700K	8W	450lm	DALI-2 / Push Dim	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212434	300	2700K	15W	900lm	DALI-2 / Push Dim	60 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212415	150	2700K	8W	450lm	Trailing edge	56 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212433	300	2700K	15W	900lm	Trailing edge	60 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212424	150	3000K	8W	470lm	DALI-2 / Push Dim	59 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212430	300	3000K	15W	950lm	DALI-2 / Push Dim	63 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212423	150	3000K	8W	470lm	Trailing edge	59 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212429	300	3000K	15W	950lm	Trailing edge	63 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320900		3000K	23W	2980lm	Trailing edge / Linect	130 lm/W, L595 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212418	150	3000K	8W	470lm	DALI-2 / Push Dim	59 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212436	300	3000K	15W	950lm	DALI-2 / Push Dim	63 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212417	150	3000K	8W	470lm	Trailing edge	59 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212435	300	3000K	15W	950lm	Trailing edge	63 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320904		3000K	23W	2980lm	Trailing edge / Linect	130 lm/W, L595 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212426	150	4000K	8W	490lm	DALI-2 / Push Dim	61 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212432	300	4000K	15W	980lm	DALI-2 / Push Dim	65 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212425	150	4000K	8W	490lm	Trailing edge	61 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212431	300	4000K	15W	980lm	Trailing edge	65 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212420	150	4000K	8W	490lm	DALI-2 / Push Dim	61 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212438	300	4000K	15W	980lm	DALI-2 / Push Dim	65 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212419	150	4000K	8W	490lm	Trailing edge	61 lm/W, L163 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212437	300	4000K	15W	980lm	Trailing edge	65 lm/W, L303 x W62 x H40, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools

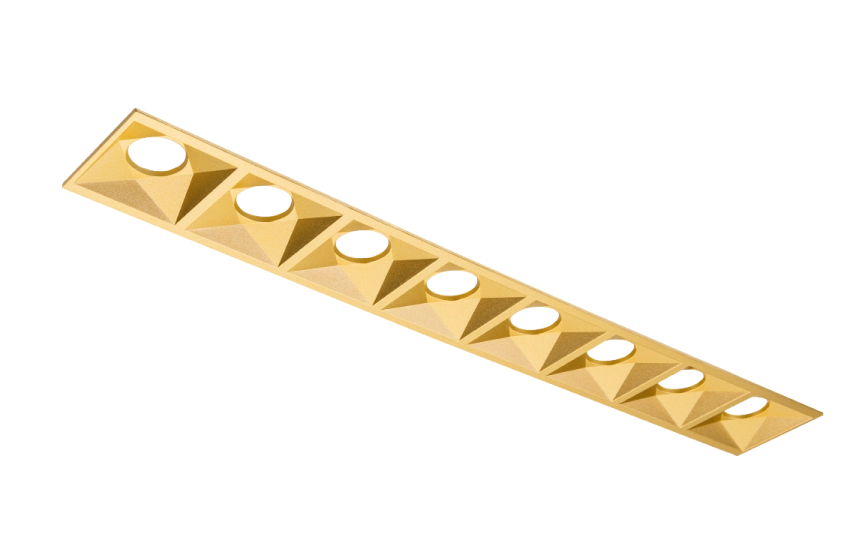

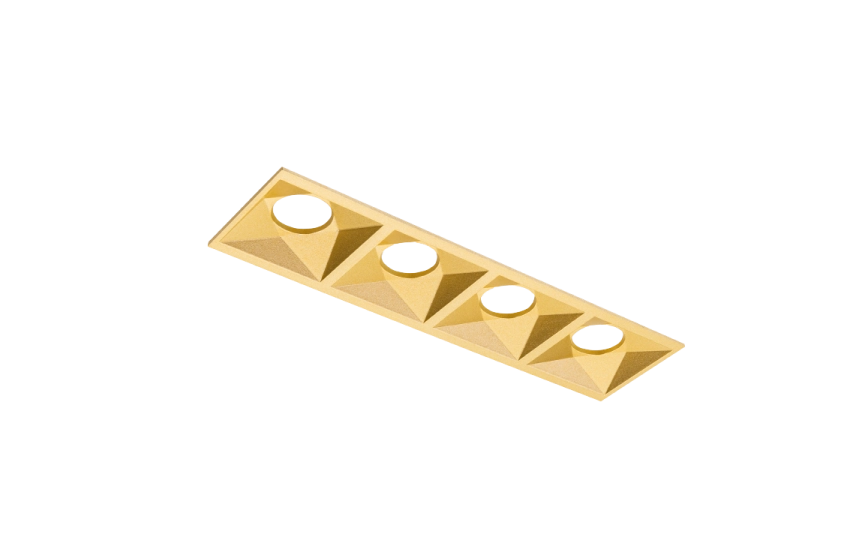

212482	Inspire Gold 150 Reflector	L140 x W38 x H16	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212483	Inspire Gold 300 Reflector	L280 x W38 x H16	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

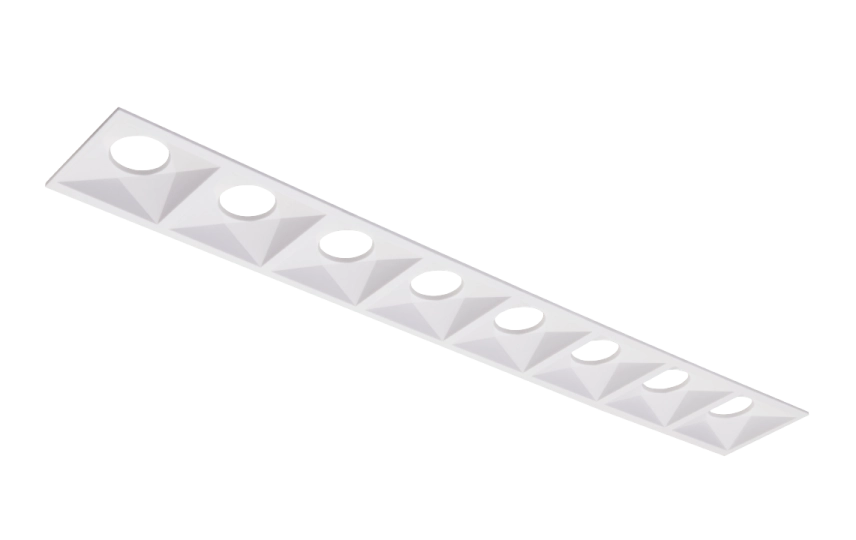

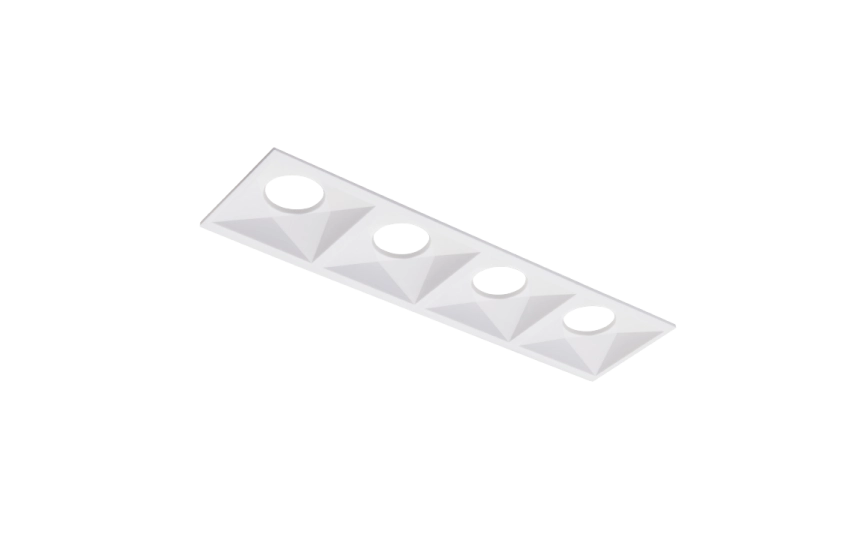

212480	Inspire White 150 Reflector	L140 x W38 x H16	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212481	Inspire White 300 Reflector	L280 x W38 x H16	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820090	Emergencybox Adapter kit for downlight	L250 x W13 x H13	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094364	Emergencybox On-Off/Trailing edge / EM Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094500	Emergencybox Driver DALI / EM DALI/Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

References

References

Since last autumn, the Grand Hotel in Halmstad has undergone a complete renovation. Among other things, the hotel now has completely new interior lighting with luminaires from SG.

Discover more
References

AB Elektro is an electrical contractor based in Alta. They have been delivering electrical installations throughout North Norway since 1995, taking a genuine interest and pride in their trade.

Discover more
References

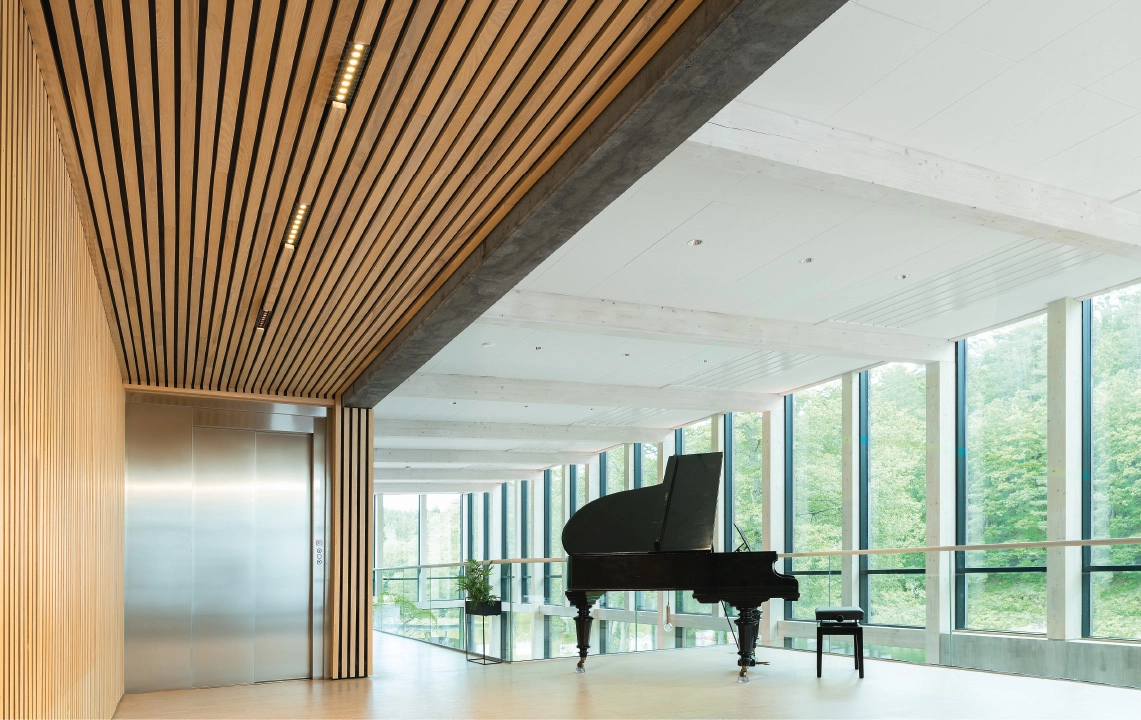

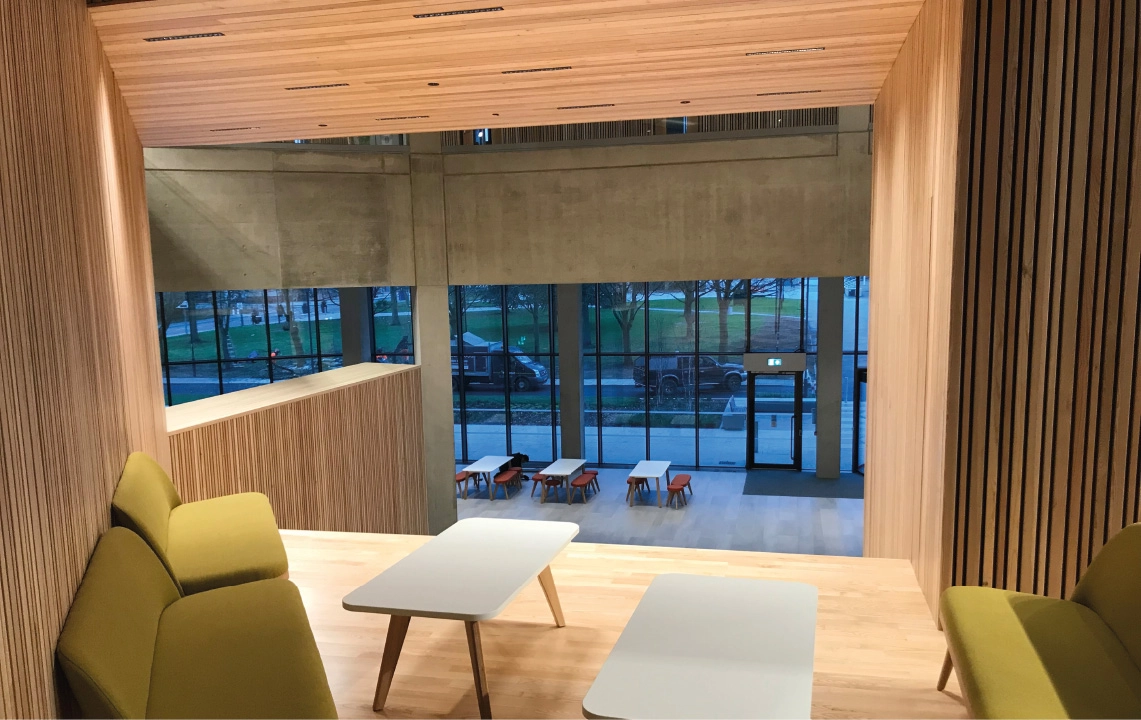

HasleTre is a spectacular wooden building adapted to the Nordic climate and located in Hasle, Oslo.

Discover more
References

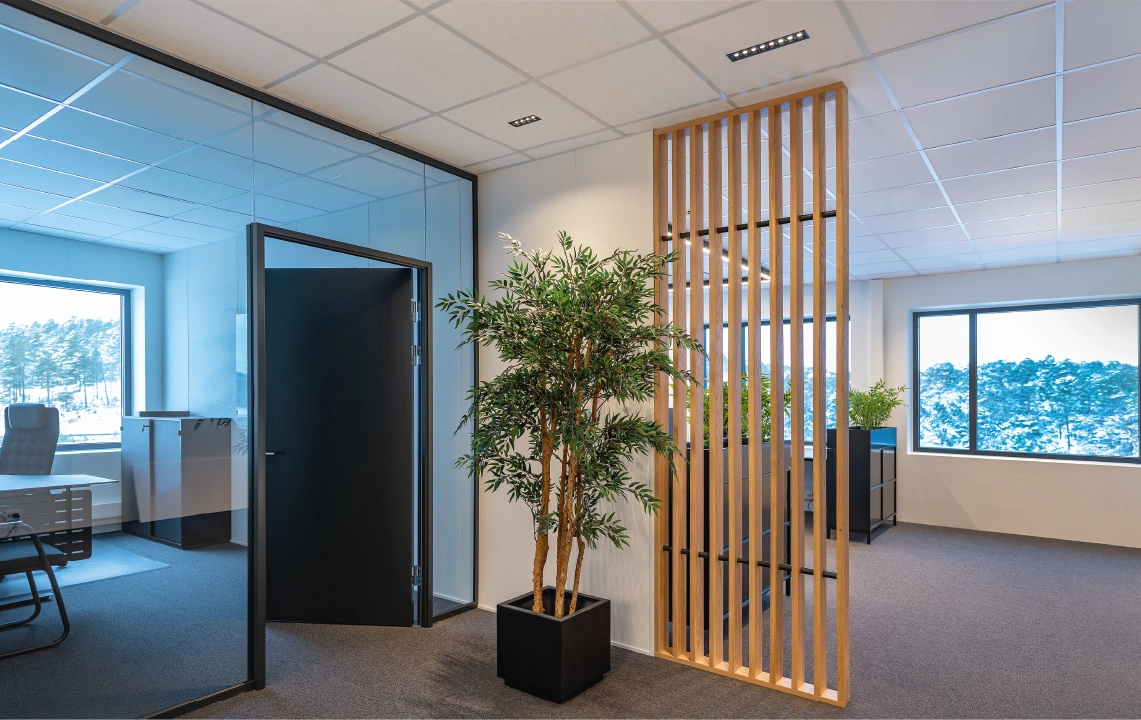

SG Lighting has delivered a complete lighting solution for a new commercial building in Rørvik, Norway.

Discover more
