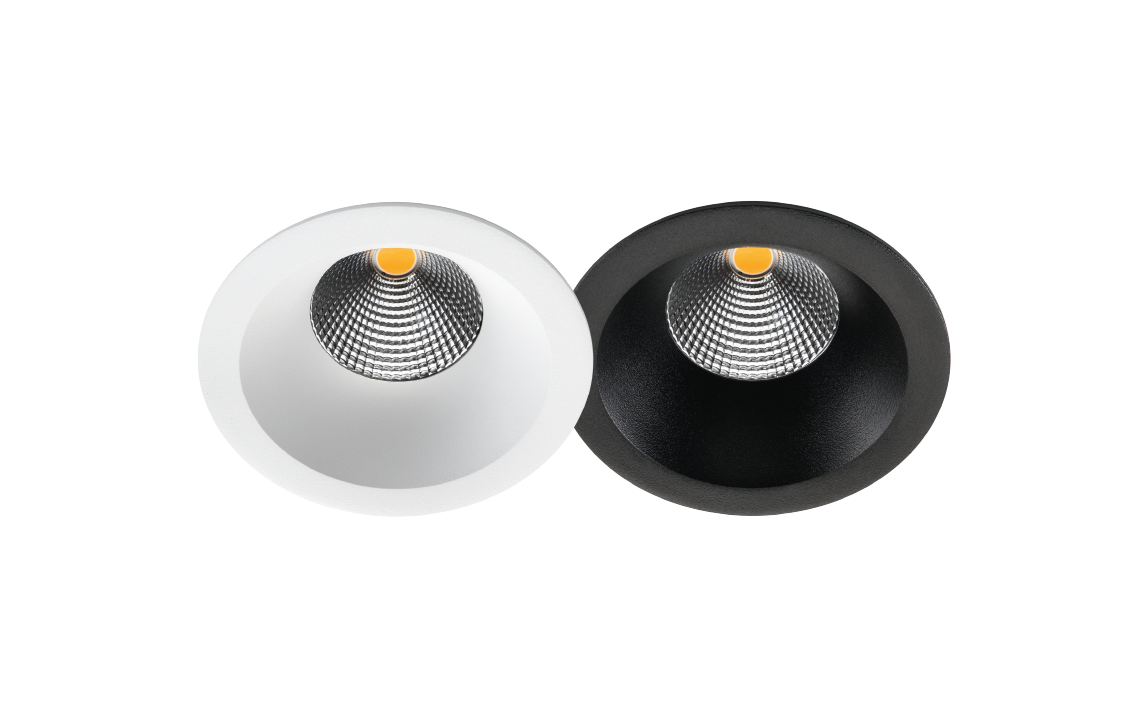

Junistar Soft

Attractive exclusive downlight for indoor or outdoor use, particularly well suited to basic lighting due to its very low unified glare rating. Well integrated LED chip and associated dimmable driver. Made of die-cast powder-coated aluminium, glass diffuser. 42° beam angle angle. Low recessed downlight with hole size Ø83mm

Article list

Junistar Soft

Direct Recessed SDCM: 2 Class II SELV IP54/IP20 Ra 98 Beam angle: 42° L90/B10> 100,000

Filters

Color

Colour temperature

Lumen

Control gear

					Others	Tools
903317	2700K	11W	740lm	DALI-2	Indoor, Outdoor, 67 lm/W, Ø94 x H53, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903213	2700K	11W	740lm	Trailing edge / Linect	Indoor, Outdoor, 67 lm/W, Ø94 x H53, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903219	2700K	11W	830lm	DALI-2	Indoor, Outdoor, 75 lm/W, Ø94 x H53, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903211	2700K	11W	830lm	Trailing edge / Linect	Indoor, Outdoor, 75 lm/W, Ø94 x H53, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903316	3000K	11W	760lm	DALI-2	Indoor, Outdoor, 69 lm/W, Ø94 x H53, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903313	3000K	11W	760lm	Trailing edge / Linect	Indoor, Outdoor, 69 lm/W, Ø94 x H53, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903312	3000K	11W	790lm	Trailing edge	Indoor, 72 lm/W, Ø94 x H53, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903319	3000K	11W	850lm	DALI-2	Indoor, Outdoor, 77 lm/W, Ø94 x H53, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903311	3000K	11W	850lm	Trailing edge / Linect	Indoor, Outdoor, 77 lm/W, Ø94 x H53, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903419	4000K	11W	880lm	DALI-2	Indoor, Outdoor, 80 lm/W, Ø94 x H53, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903411	4000K	11W	880lm	Trailing edge / Linect	Indoor, Outdoor, 80 lm/W, Ø94 x H53, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

					Others	Tools
903317	2700K	11W	740lm	DALI-2	Indoor, Outdoor, 67 lm/W, Ø94 x H53, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903213	2700K	11W	740lm	Trailing edge / Linect	Indoor, Outdoor, 67 lm/W, Ø94 x H53, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903219	2700K	11W	830lm	DALI-2	Indoor, Outdoor, 75 lm/W, Ø94 x H53, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903211	2700K	11W	830lm	Trailing edge / Linect	Indoor, Outdoor, 75 lm/W, Ø94 x H53, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903316	3000K	11W	760lm	DALI-2	Indoor, Outdoor, 69 lm/W, Ø94 x H53, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903313	3000K	11W	760lm	Trailing edge / Linect	Indoor, Outdoor, 69 lm/W, Ø94 x H53, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903312	3000K	11W	790lm	Trailing edge	Indoor, 72 lm/W, Ø94 x H53, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903319	3000K	11W	850lm	DALI-2	Indoor, Outdoor, 77 lm/W, Ø94 x H53, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903311	3000K	11W	850lm	Trailing edge / Linect	Indoor, Outdoor, 77 lm/W, Ø94 x H53, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903419	4000K	11W	880lm	DALI-2	Indoor, Outdoor, 80 lm/W, Ø94 x H53, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903411	4000K	11W	880lm	Trailing edge / Linect	Indoor, Outdoor, 80 lm/W, Ø94 x H53, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
9143	Rehab Ring Black 133mm for Junistar, Uniled, Soft & Jupiter Stainless steel	L133 x W133 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9236	Rehab Ring Black 180mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø180 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9973	Rehab Ring Brushed steel 133mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø133 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9233	Rehab Ring Graphite 133mm for Junistar, Uniled, Soft & Jupiter Stainless steel	L133 x W133 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9234	Rehab Ring Graphite 180mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø180 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9327	Rehab Ring Graphite 250mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø250 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9223	Rehab Ring White 133mm for Junistar, Uniled, Soft & Jupiter Stainless steel	L133 x W133 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9224	Rehab Ring White 180mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø180 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9227	Rehab Ring White 250mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø250 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
820489	Sensor Dim Box White 200VA 200VA	L220 x W75 x H34	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094429	Emergencybox Driver DALI / EM Self test, DALI Emergency 3H	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820090	Emergencybox Adapter kit for downlight	L250 x W13 x H13	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094364	Emergencybox On-Off/Trailing edge / EM Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094500	Emergencybox Driver DALI / EM DALI/Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.
