Soft Slim

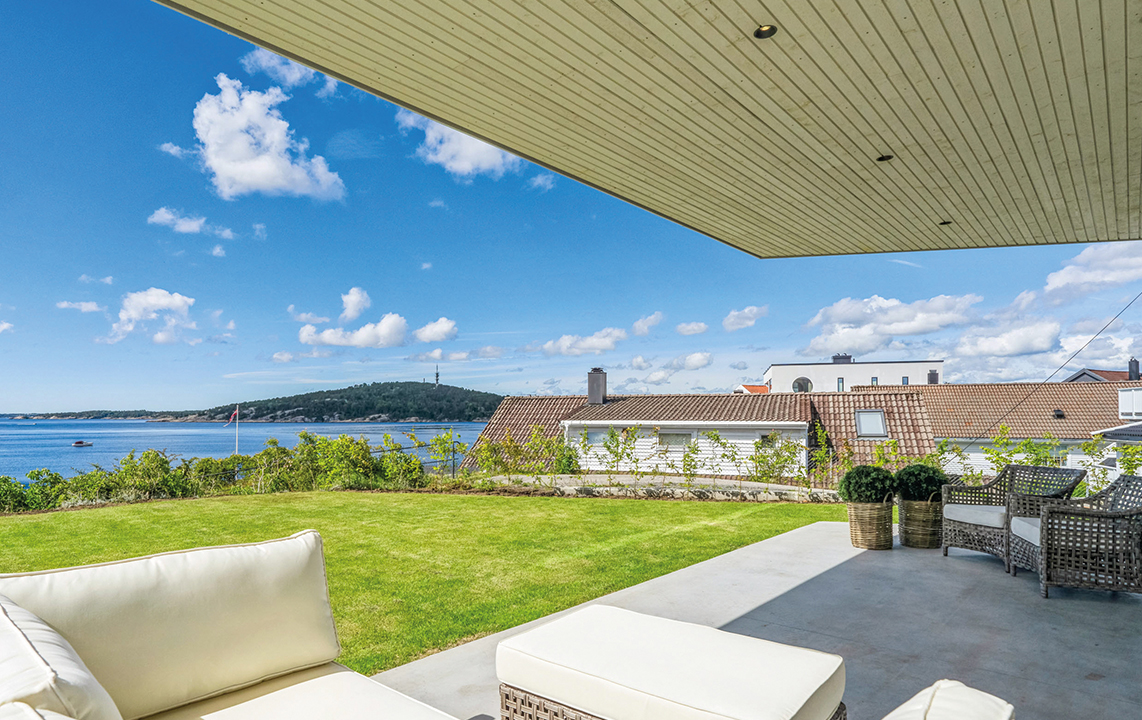

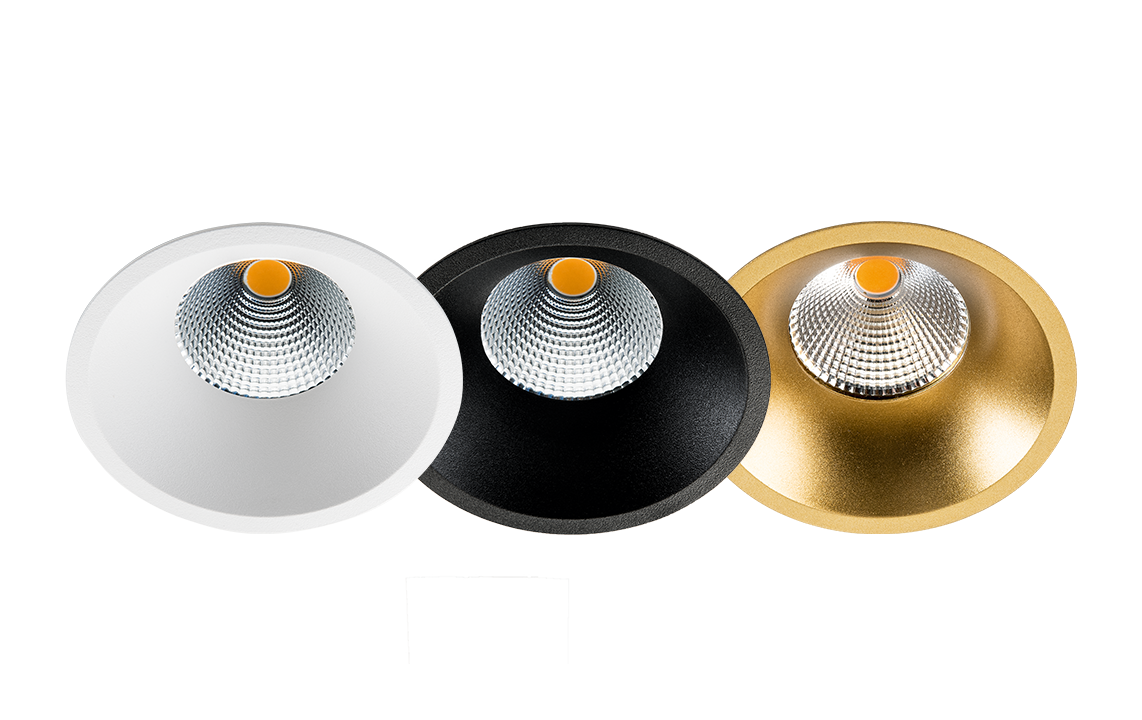

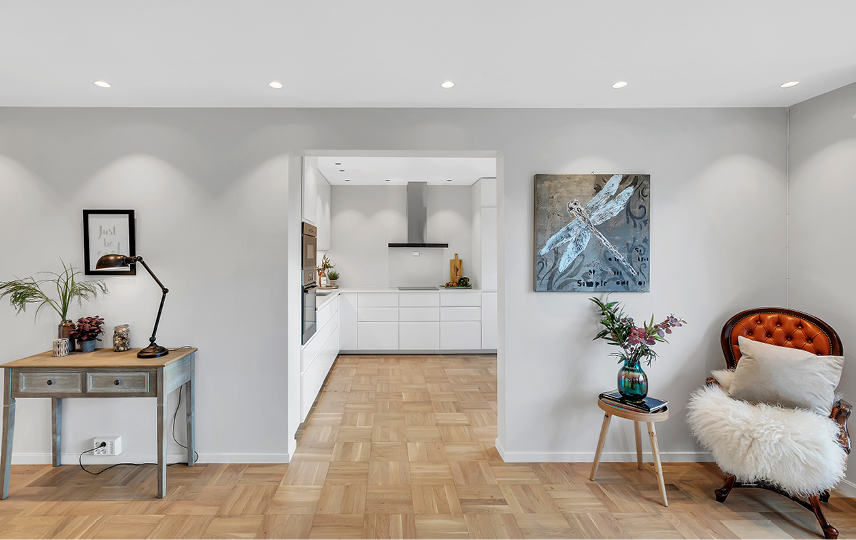

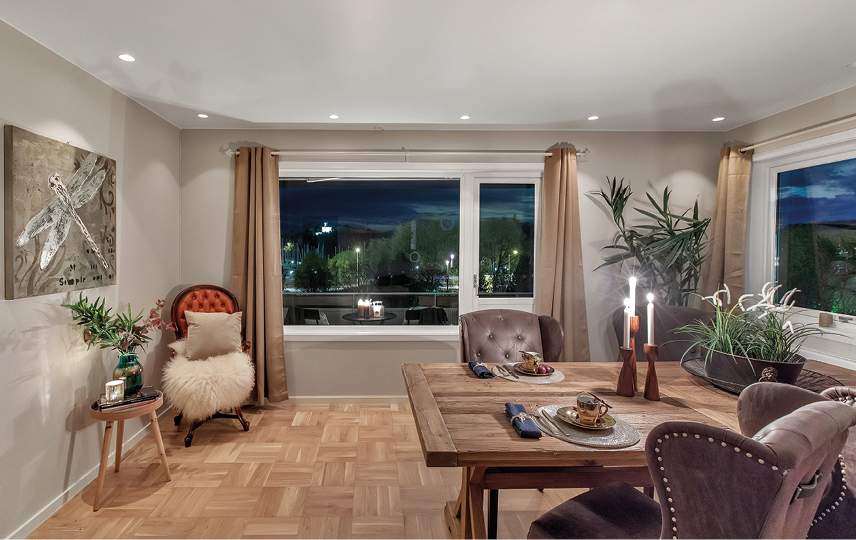

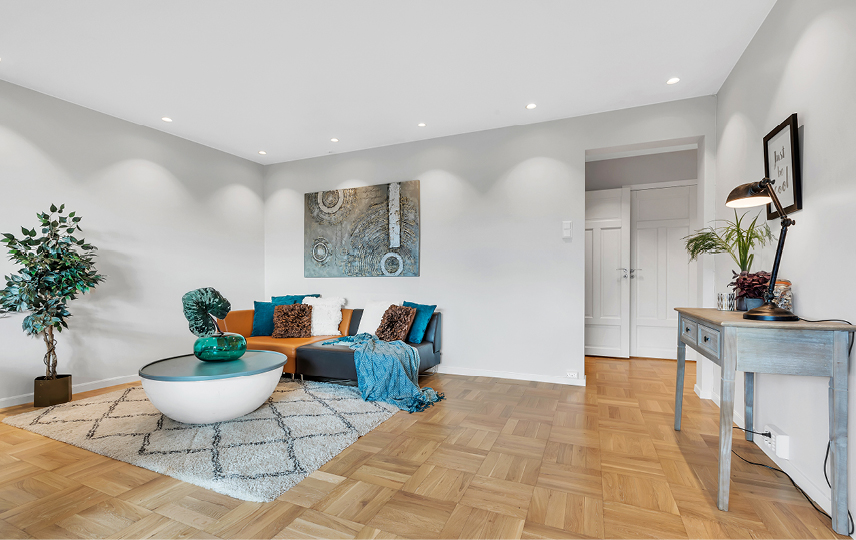

Attractive exclusive downlight for indoor and outdoor use (gold only for indoor use), particularly well suited to basic lighting due to its very low unified glare rating. Well integrated LED chip and associated dimmable driver. Made of die-cast powder-coated aluminium, glass diffuser. 42° beam angle. Low recessed downlight with hole size Ø83mm. Our IsoSafe products can be mounted directly in insulation (IsoSafe).

Article list

Soft Slim

Direct Recessed Class II SELV IP54/IP20 Beam angle: 42°

Filters

Color

Colour temperature

System wattage

Lumen

Control gear

Colour rendering (Ra)

Filters

						Others	Tools
903224	2000-2800K	8W	550lm	DALI-2	Ra>95	SDCM: 3, DimToWarm, Indoor, Outdoor, 69 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903216	2000-2800K	8W	550lm	Trailing edge	Ra>95	SDCM: 3, DimToWarm, Indoor, Outdoor, 69 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903225	2700K	11W	740lm	DALI-2	Ra 98	SDCM: 2, Indoor, Outdoor, 67 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903217	2700K	11W	740lm	Trailing edge / Linect	Ra 98	SDCM: 2, Indoor, Outdoor, 67 lm/W, Ø90 x H52, 3 pol Linect / screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903232	2700K	11W	810lm	DALI-2	Ra 98	SDCM: 2, Indoor, 74 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903234	2700K	11W	810lm	Trailing edge / Linect	Ra 98	SDCM: 2, Indoor, 74 lm/W, Ø90 x H52, 3 pol Linect / screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903230	2700K	11W	830lm	DALI-2	Ra 98	SDCM: 2, Indoor, Outdoor, 75 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903214	2700K	11W	830lm	Trailing edge / Linect	Ra 98	SDCM: 2, Indoor, Outdoor, 75 lm/W, Ø90 x H52, 3 pol Linect / screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903243	3000K	11W	760lm	Trailing edge / Linect	Ra 98	SDCM: 2, Indoor, Outdoor, 69 lm/W, Ø90 x H52, 3 pol Linect / screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903222	3000K	11W	850lm	DALI-2	Ra 98	SDCM: 2, Indoor, Outdoor, 77 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903215	3000K	11W	850lm	Trailing edge	Ra 98	SDCM: 2, Indoor, Outdoor, 77 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
903224	2000-2800K	8W	550lm	DALI-2	Ra>95	SDCM: 3, DimToWarm, Indoor, Outdoor, 69 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903216	2000-2800K	8W	550lm	Trailing edge	Ra>95	SDCM: 3, DimToWarm, Indoor, Outdoor, 69 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903225	2700K	11W	740lm	DALI-2	Ra 98	SDCM: 2, Indoor, Outdoor, 67 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903217	2700K	11W	740lm	Trailing edge / Linect	Ra 98	SDCM: 2, Indoor, Outdoor, 67 lm/W, Ø90 x H52, 3 pol Linect / screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903232	2700K	11W	810lm	DALI-2	Ra 98	SDCM: 2, Indoor, 74 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903234	2700K	11W	810lm	Trailing edge / Linect	Ra 98	SDCM: 2, Indoor, 74 lm/W, Ø90 x H52, 3 pol Linect / screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903230	2700K	11W	830lm	DALI-2	Ra 98	SDCM: 2, Indoor, Outdoor, 75 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903214	2700K	11W	830lm	Trailing edge / Linect	Ra 98	SDCM: 2, Indoor, Outdoor, 75 lm/W, Ø90 x H52, 3 pol Linect / screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903243	3000K	11W	760lm	Trailing edge / Linect	Ra 98	SDCM: 2, Indoor, Outdoor, 69 lm/W, Ø90 x H52, 3 pol Linect / screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903222	3000K	11W	850lm	DALI-2	Ra 98	SDCM: 2, Indoor, Outdoor, 77 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
903215	3000K	11W	850lm	Trailing edge	Ra 98	SDCM: 2, Indoor, Outdoor, 77 lm/W, Ø90 x H52, Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
8246094429	Emergencybox Driver DALI / EM Self test, DALI Emergency 3H	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820090	Emergencybox Adapter kit for downlight	L250 x W13 x H13	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094364	Emergencybox On-Off/Trailing edge / EM Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094500	Emergencybox Driver DALI / EM DALI/Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
