Arena

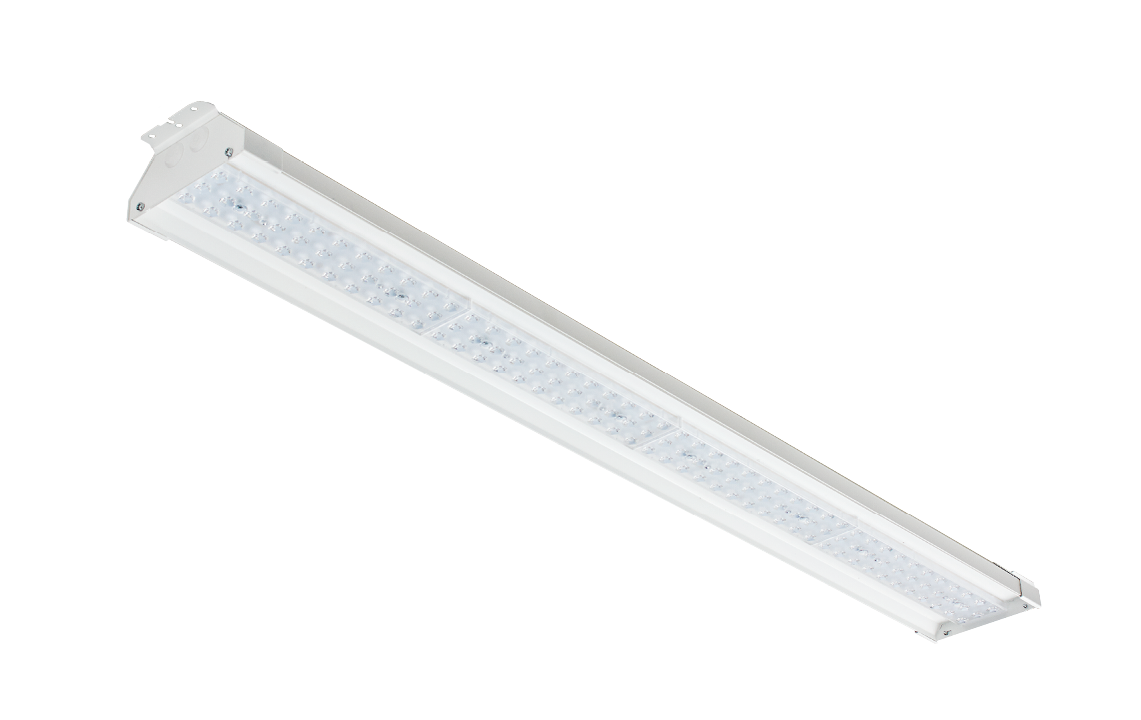

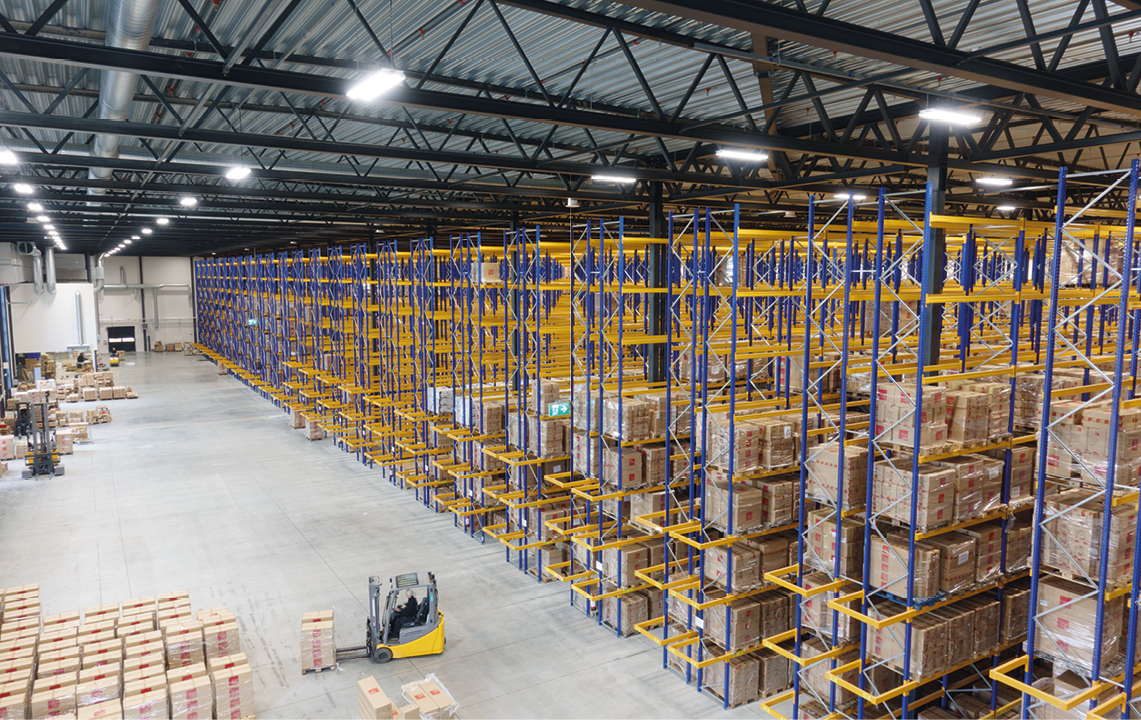

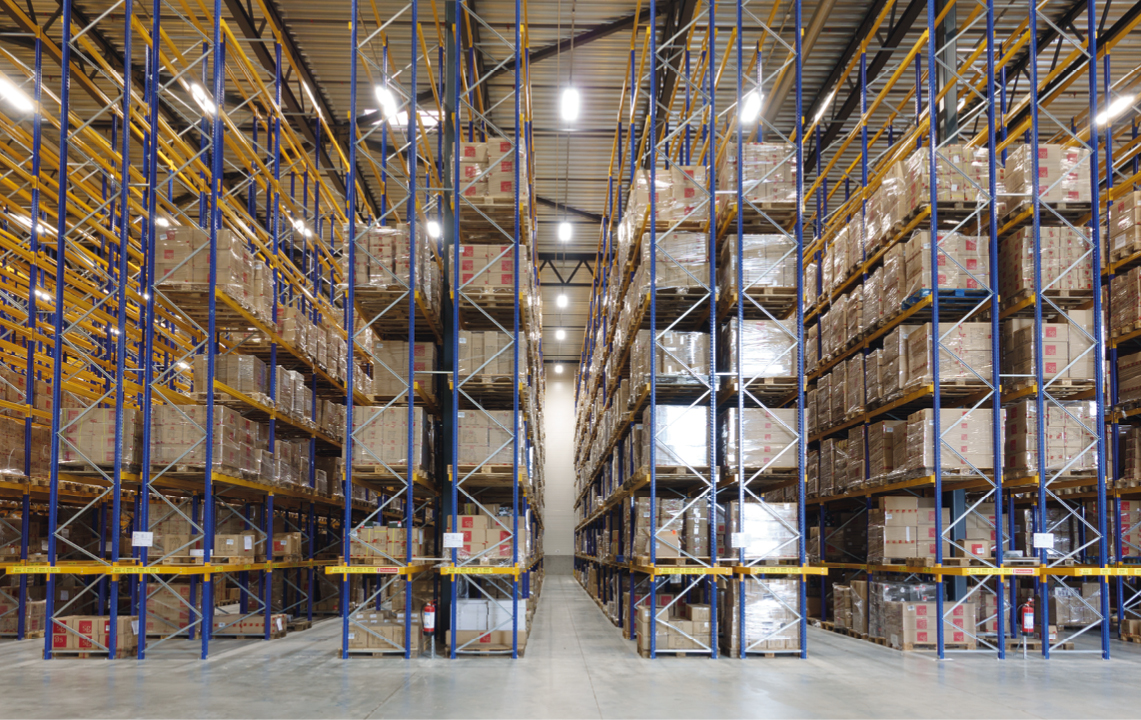

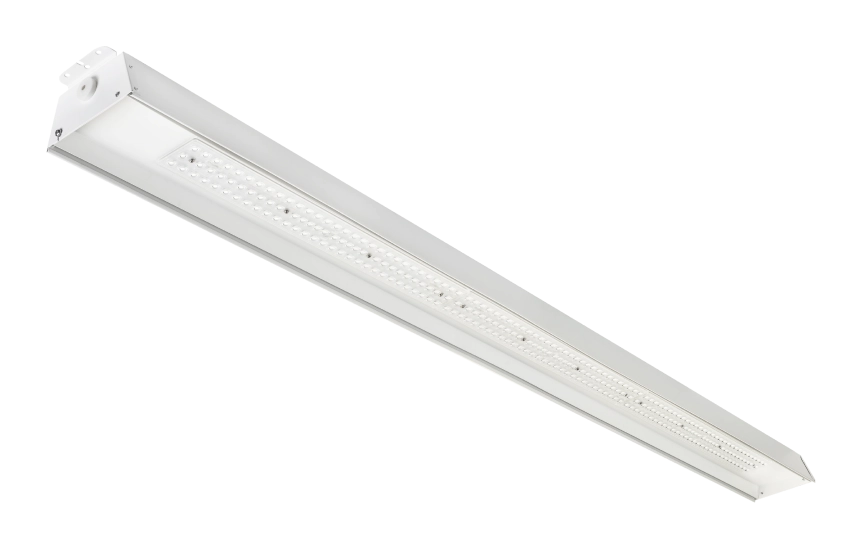

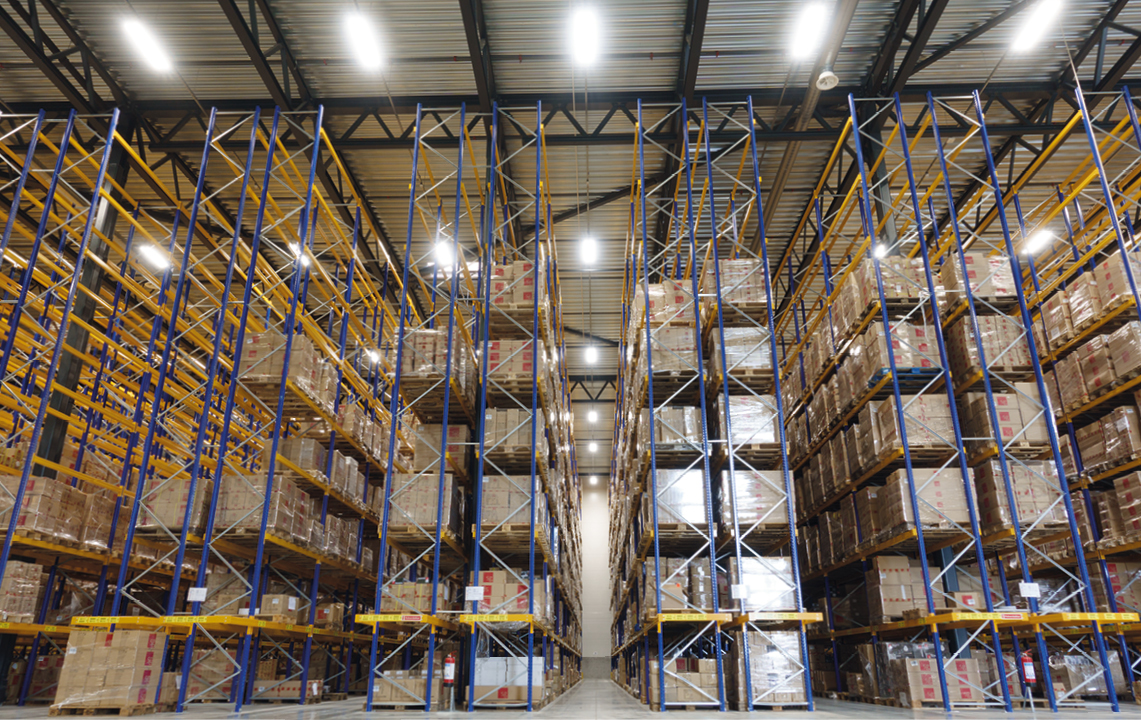

Arena is an energy efficient surface mounted IP23 lumninaire for use in industry and storage. It is easy to install with hinged gear tray, and can be mounted either direct on ceiling (screws) or by using the mounting hooks for horizontal wiring. Arena is available in two lengths and with three different light distributions.5/7-pole terminal block with 5/7x2,5mm² through wiring. Cable entry in end caps trough grommet.

Article list

Arena

Indoor Suspended or surface Direct 4000K SDCM: 3 Class I IK08 IP23 Ra>80 L90/B10> 70,000, L90/B10> 50,000

Filters

Module

Beam angle

System wattage

Lumen

Control gear

Filters

						Others	Tools
8246092489	1200	Medium	71W	11720lm	DALI-2	165 lm/W, L1194 x W138 x H63, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093530	1200	Medium	57W	9000lm	DALI-2	158 lm/W, L1194 x W138 x H63, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093572	1200	Narrow	57W	9060/11910lm	DALI-2	159 lm/W, L1269 x W137 x H57, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246093598	1200	Wide	57W	8980/11800lm	DALI-2	158 lm/W, L1194 x W138 x H63, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246093873	1200	Medium	144W	23580lm	DALI-2	164 lm/W, L1256 x W295 x H57, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093912	1200	Narrow	144W	23530lm	DALI-2	163 lm/W, L1256 x W295 x H57, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093938	1200	Wide	144W	23230lm	DALI-2	161 lm/W, L1256 x W295 x H57, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246092476	1200	Medium	79W	11830lm	On/Off	150 lm/W, L1194 x W138 x H63, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093527	1200	Medium	57W	9000lm	On/Off	158 lm/W, L1194 x W138 x H63, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093569	1200	Narrow	57W	9060/11910lm	On/Off	159 lm/W, L1269 x W137 x H57, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246093860	1200	Medium	140W	23580lm	On/Off	168 lm/W, L1256 x W295 x H57, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093909	1200	Narrow	140W	23530lm	On/Off	168 lm/W, L1256 x W295 x H57, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093925	1200	Wide	140W	23230lm	On/Off	166 lm/W, L1256 x W295 x H57, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094212	1200	Wide	57W	8980lm	On/Off	158 lm/W, L1194 x W138 x H63, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094539	1200	Wide	79W	11800lm	On/Off	149 lm/W, L1194 x W138 x H63, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094762	1500	Wide	79W	11800lm	On/Off	149 lm/W, L1769 x W137 x H57, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094801	1700	Wide	113W	16830lm	On/Off	149 lm/W, L1842 x W137 x H59, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

						Others	Tools
8246092489	1200	Medium	71W	11720lm	DALI-2	165 lm/W, L1194 x W138 x H63, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093530	1200	Medium	57W	9000lm	DALI-2	158 lm/W, L1194 x W138 x H63, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093572	1200	Narrow	57W	9060/11910lm	DALI-2	159 lm/W, L1269 x W137 x H57, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246093598	1200	Wide	57W	8980/11800lm	DALI-2	158 lm/W, L1194 x W138 x H63, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246093873	1200	Medium	144W	23580lm	DALI-2	164 lm/W, L1256 x W295 x H57, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093912	1200	Narrow	144W	23530lm	DALI-2	163 lm/W, L1256 x W295 x H57, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093938	1200	Wide	144W	23230lm	DALI-2	161 lm/W, L1256 x W295 x H57, 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246092476	1200	Medium	79W	11830lm	On/Off	150 lm/W, L1194 x W138 x H63, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093527	1200	Medium	57W	9000lm	On/Off	158 lm/W, L1194 x W138 x H63, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093569	1200	Narrow	57W	9060/11910lm	On/Off	159 lm/W, L1269 x W137 x H57, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246093860	1200	Medium	140W	23580lm	On/Off	168 lm/W, L1256 x W295 x H57, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093909	1200	Narrow	140W	23530lm	On/Off	168 lm/W, L1256 x W295 x H57, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246093925	1200	Wide	140W	23230lm	On/Off	166 lm/W, L1256 x W295 x H57, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094212	1200	Wide	57W	8980lm	On/Off	158 lm/W, L1194 x W138 x H63, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094539	1200	Wide	79W	11800lm	On/Off	149 lm/W, L1194 x W138 x H63, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094762	1500	Wide	79W	11800lm	On/Off	149 lm/W, L1769 x W137 x H57, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094801	1700	Wide	113W	16830lm	On/Off	149 lm/W, L1842 x W137 x H59, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
8249045174	Shopline DALI White Adapter kit		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249045187	Shopline White Adapter kit		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820259	Start current limiter DIN 16A	L90 x W18 x H58	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044900	Wirekit 2x5m	L19 x W25 x H150	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044913	Mounting kit for adjustable angulation	L100 x W98 x H95	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

References

References

Bunnpris is a leading grocery chain in Norway. SG has delivered the new Arena lighting solution to several of the chain's stores.

Discover more
References

In May 2023, XL-BYGG/A-TRÄ in Landskrona suffered a fire and the large store had to be rebuilt from scratch. A year later, the company was able to open the doors to the store again, which is now lit up with lighting from SG Armaturen.

Discover more
References

SG Lighting has been involved in upgrading the lighting at the Oslo School of Architecture and Design for a number of years. The workshops, corridors and library have been upgraded with Arena.

Discover more
References

Vattenfall's energy research laboratory is located in Älvkarleby. The laboratory consists of many different types of premises,

Discover more
References

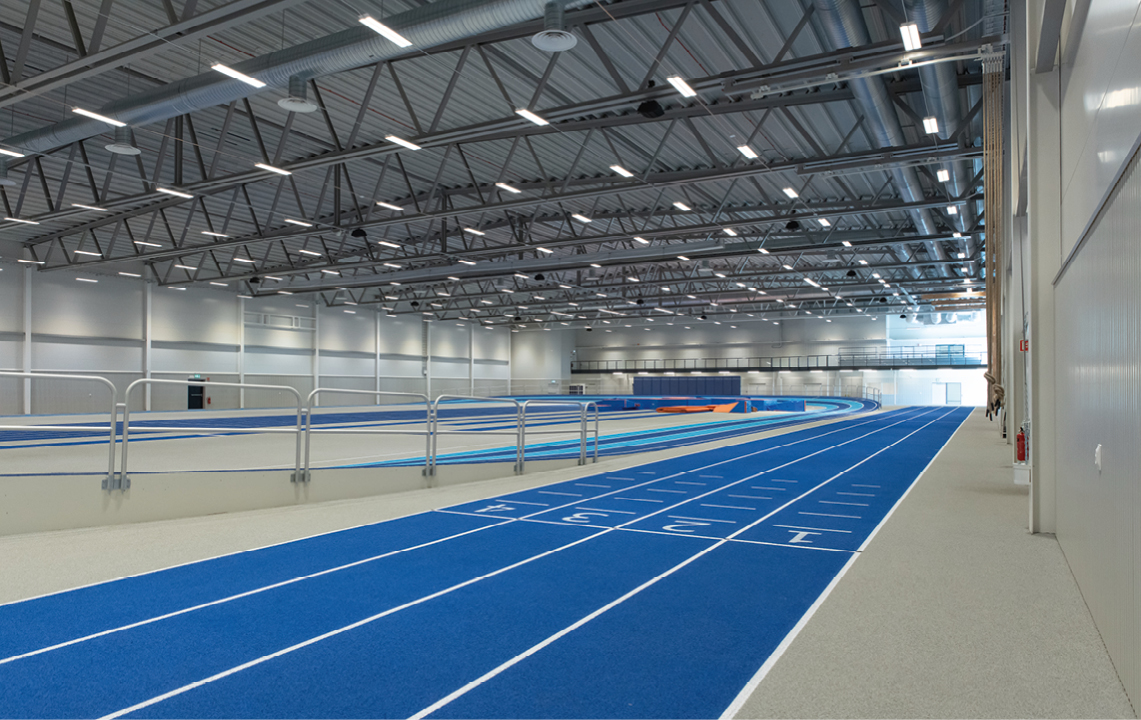

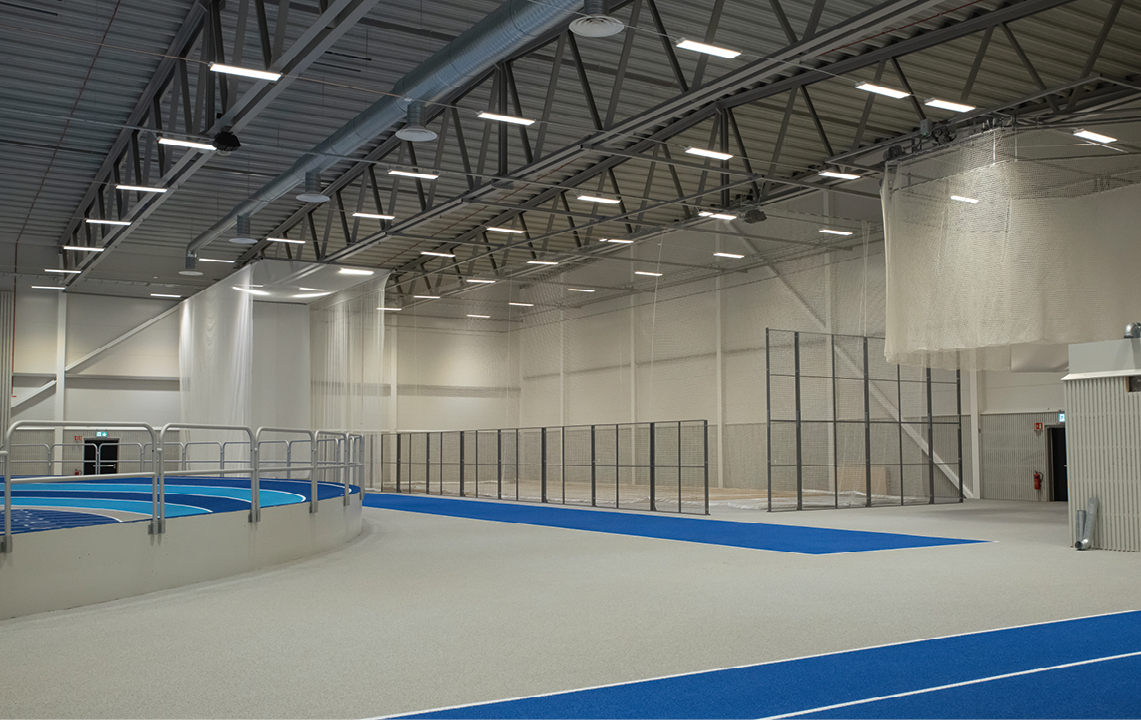

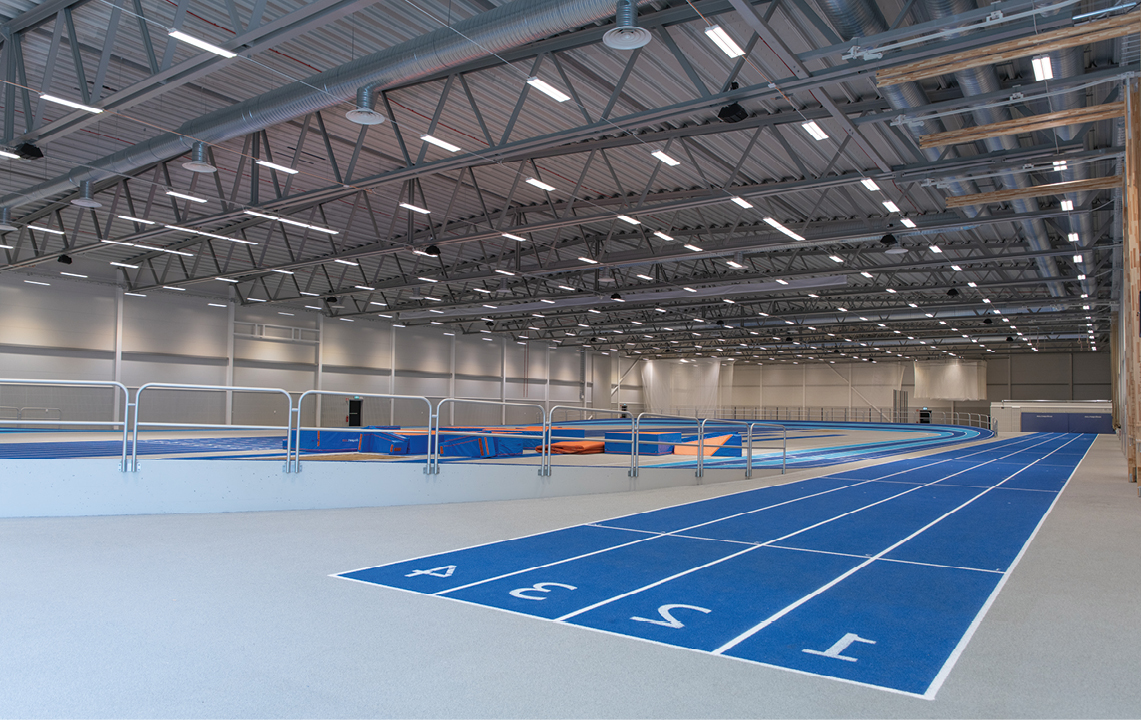

Skellefteå Municipality has built a brand new athletics hall that also houses a sports hall.
