Arena Eco

Arena ECO 1200 Wide 10960lm 4000K Ra>80 DALI-2

Article code
607018
EAN
7021986070187
Back to articlelist

Overview

Wattage
76W
Efficacy
144 lm/W
Lumen
10960lm
IP Class
IP23
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • flickerfree
  • ik10
  • ip23
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 607018 Mounting instruction Arena Eco DALI 1200 1500_User Manual Eulumdat file (ldt) 7021986070187_Arena Eco 1200 Wide 10960lm 4000K Ra80 DALI

See more

Dialux file (uld) 7021986070187_Arena Eco 1200 Wide 10960lm 4000K Ra80 DALI Relux file (rolf) 7021986070187_Arena_Eco_1200_Wide_10960lm_4000K_Ra_80_DALI EPD NEPD-9122-8686_Arena-Eco-1200-Wide-11000Lm-4000K-Dali Revit file - Generic Arena ECO_1200 - generic Revit file - Ceiling Based Arena Eco 1200 - ceiling based CE Declaration Arena Eco ENEC Certificate Arena Eco

How to specify

Text copied to clipboard

Arena ECO 1200 Wide 10960lm 4000K Ra>80 DALI-2, Article code: 607018, EAN: 7021986070187, IP23, IK10, Electrical: Wattage: 76W, System wattage: 76W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 9, B16: 15, C10: 16, C16: 25, Leakage current (mA): 0.22, Light technic: Light source included: Yes, Luminous flux: 10960lm, Efficacy: 144 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Beam angle: 90°, Photobiological safety: RG 1, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP23, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Module: 1200, Connection: 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring, Dimensions: Length (mm) L: 1184, Width (mm) W: 134, Height (mm) H: 72, Weight (kg) gross/net: 3.7 / 3.2, Packaging: Packaging dimensions (mm): 1192 x 76 x 143

Electrical

Wattage
76W
System wattage
76W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 9, B16: 15, C10: 16, C16: 25
Leakage current (mA)
0.22

Light technic

Light source included
Yes
Luminous flux
10960lm
Efficacy
144 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000
Minimum ambient temperature
-25°C

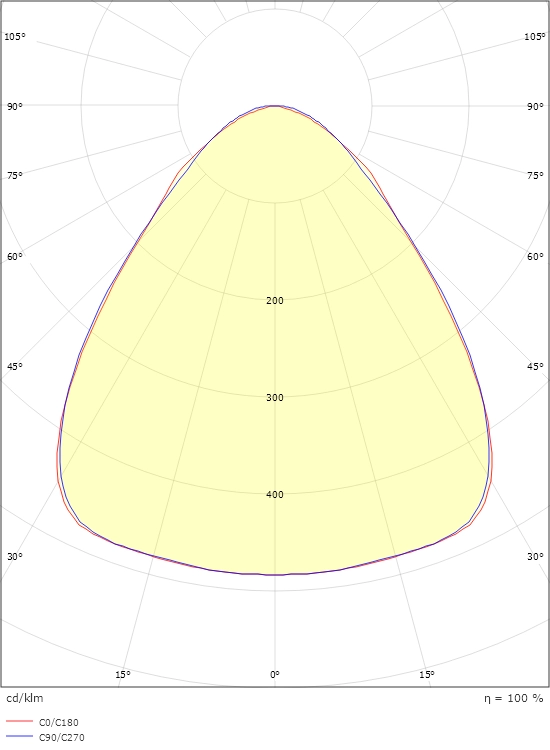

Light distribution
Direct
Beam angle
90°
Photobiological safety
RG 1

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP23

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Steel
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Module
1200
Connection
7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring

Dimensions

Length (mm) L
1184
Width (mm) W
134
Height (mm) H
72
Weight (kg) gross/net
3.7 / 3.2

Packaging

Packaging dimensions (mm)
1192 x 76 x 143
