Arena ECO 1500 Medium 11370lm 4000K Ra>80 DALI-2

Article code
607019
EAN
7021986070194
Back to articlelist

Overview

Wattage
76W
Efficacy
150 lm/W
Lumen
11370lm
IP Class
IP23
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • flickerfree
  • ik10
  • ip23
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 607019 Mounting instruction Arena Eco DALI 1200 1500_User Manual Eulumdat file (ldt) 7021986070194_Arena Eco 1500 Medium 11370lm 4000K Ra80 DALI

See more

Dialux file (uld) 7021986070194_Arena Eco 1500 Medium 11370lm 4000K Ra80 DALI Relux file (rolf) 7021986070194_Arena_Eco_1500_Medium_11370lm_4000K_Ra_80_DALI EPD NEPD-6455-5717_Arena-Eco-1500-Dali Revit file - Generic Arena ECO_1200 - generic Revit file - Ceiling Based Arena Eco 1200 - ceiling based CE Declaration Arena Eco ENEC Certificate Arena Eco

How to specify

Text copied to clipboard

Arena ECO 1500 Medium 11370lm 4000K Ra>80 DALI-2, Article code: 607019, EAN: 7021986070194, IP23, IK10, Electrical: Wattage: 76W, System wattage: 76W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 25, C16: 40, Leakage current (mA): 0.39, Light technic: Luminous flux: 11370lm, Efficacy: 150 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Beam angle: 60°, UGR: UGR<25, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP23, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Module: 1500, Connection: 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring, Dimensions: Length (mm) L: 1552, Width (mm) W: 134, Height (mm) H: 72, Weight (kg) gross/net: 4.1 / 3.8, Packaging: Packaging dimensions (mm): 1596 x 76 x 148

Electrical

Wattage
76W
System wattage
76W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 15, B16: 24, C10: 25, C16: 40
Leakage current (mA)
0.39

Light technic

Luminous flux
11370lm
Efficacy
150 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000
Minimum ambient temperature
-25°C

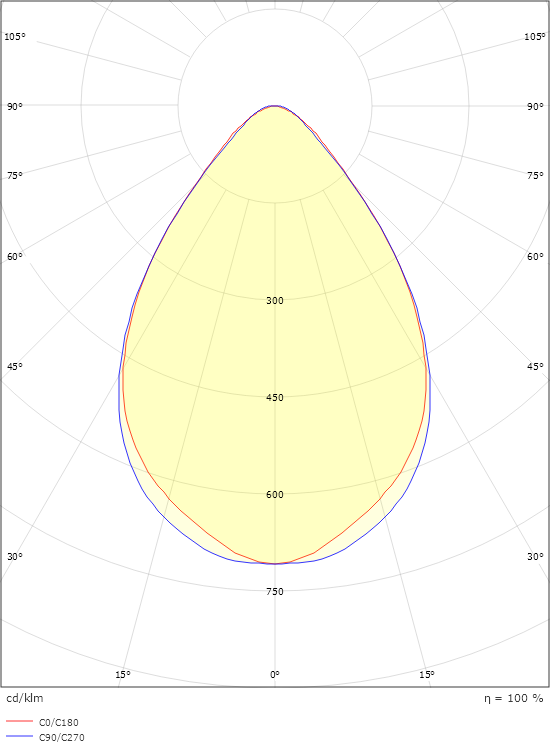

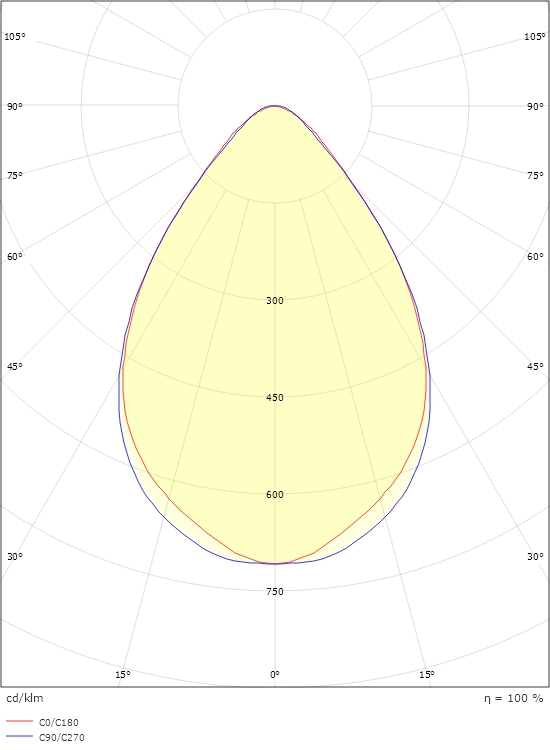

Light distribution
Direct
Beam angle
60°
UGR
UGR<25

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP23

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Steel
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Module
1500
Connection
7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring

Dimensions

Length (mm) L
1552
Width (mm) W
134
Height (mm) H
72
Weight (kg) gross/net
4.1 / 3.8

Packaging

Packaging dimensions (mm)
1596 x 76 x 148
