Arena Sport
Arena Sport 1200 296mm White Medium 22190lm 4000K Ra>80 DALI-2
- Article code
- 8246094296
- EAN
- 5703821177191
Overview
- Efficacy
- 143 lm/W
- Lumen
- 22190lm
- IP Class
- IP23
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
Electrical
- System wattage
- 155W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 7, B16: 12, C10: 12, C16: 20
- Leakage current (mA)
- 0.78
Light technic
- Type of light source
- LED
- Luminous flux
- 22190lm
- Efficacy
- 143 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B20>100,000
- Lifetime
- L90/B10>70,000
- Minimum ambient temperature
- -25°C

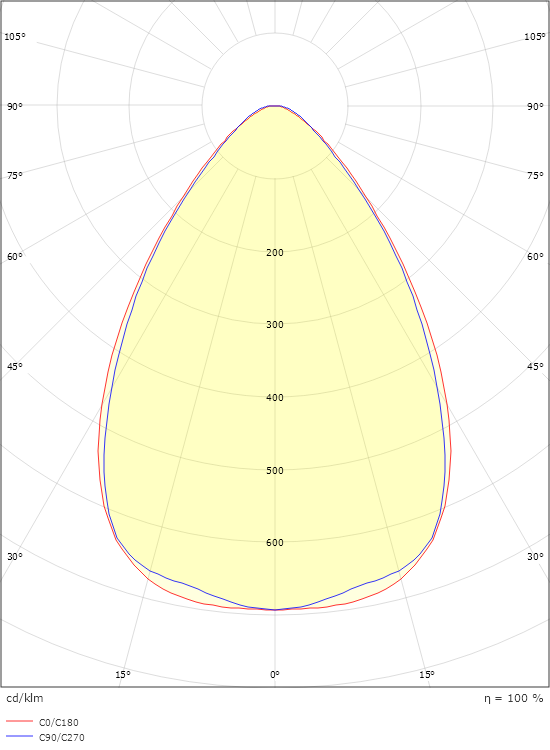

- Light distribution
- Direct
- Optic
- Lens Medium
- Beam angle
- Medium

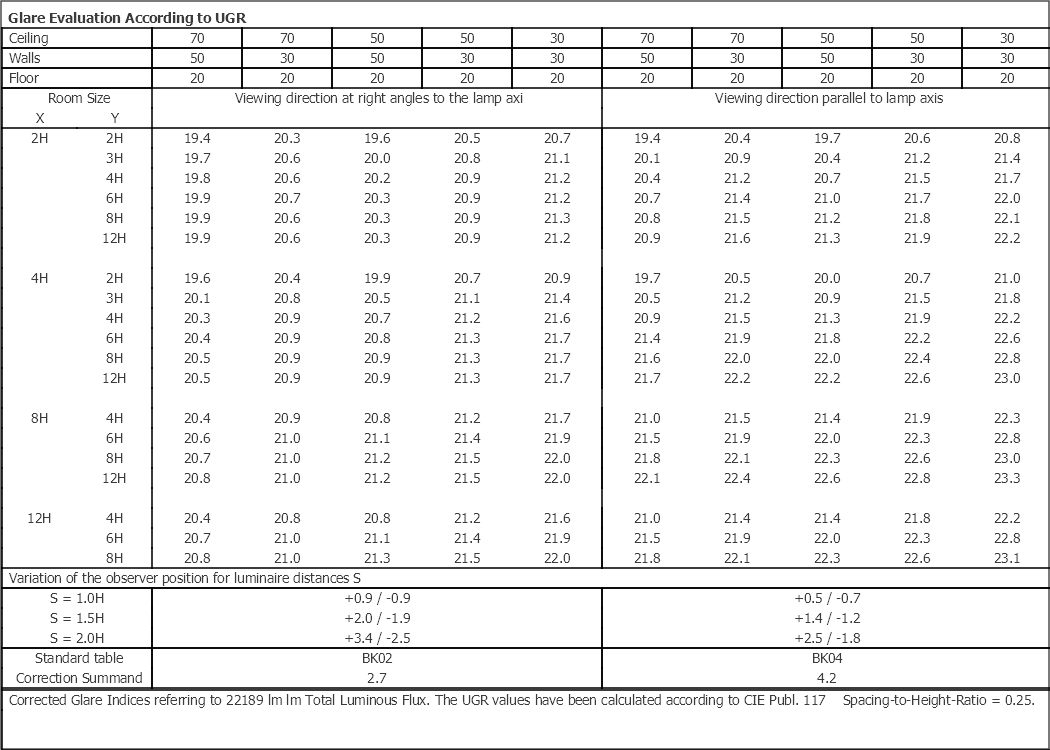

- UGR
- UGR<22
- Photobiological safety
- RG 1
Control/Dimming
- Type
- DALI-2
Protection
- Luminaire class
- Class I
- IK Class
- IK10
- IP Class
- IP23
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- BVB
- Yes
- Sunda Hus
- B
Materials and finish
- Housing
- Sheet steel
- Colour
- White (RAL 9010, 20% gloss)
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Surface, Indoor
- Module
- 1200 296mm
- Connection
- 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring
Dimensions
- Length (mm) L
- 1263
- Width (mm) W
- 296
- Height (mm) H
- 80
- Weight (kg) gross/net
- 10.2 / 10
Packaging
- Packaging dimensions (mm)
- 1270 x 314 x 85
