Arena Sport

Arena Sport 1500 156mm White Medium 10950lm 4000K Ra>80 On/Off

Article code
8246094348
EAN
5703821177245

Overview

Efficacy
139 lm/W
Lumen
10950lm
IP Class
IP23
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty 1 ball test warranty
  • indoor
  • el
  • ik10
  • ip23
  • klasse_1
  • ce

Tools

How to specify

Text copied to clipboard

Arena Sport 1500 156mm White Medium 10950lm 4000K Ra>80 On/Off, Article code: 8246094348, EAN: 5703821177245, IP23, IK10, Electrical: System wattage: 79W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 10, B16: 16, C10: 17, C16: 27, Leakage current (mA): 0.31, Light technic: Type of light source: LED, Luminous flux: 10950lm, Efficacy: 139 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90/B10>70,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Lens Medium, Beam angle: Medium, UGR: UGR<19, Photobiological safety: RG 1, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP23, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White (RAL 9010, 20% gloss), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Module: 1500 156mm, Connection: 5-pole screwless terminal block with 5x2,5mm2 through wiring, Dimensions: Length (mm) L: 1763, Width (mm) W: 156, Height (mm) H: 80, Weight (kg) gross/net: 9 / 8.8, Packaging: Packaging dimensions (mm): 1785 x 174 x 85

Electrical

System wattage
79W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 10, B16: 16, C10: 17, C16: 27
Leakage current (mA)
0.31

Light technic

Type of light source
LED
Luminous flux
10950lm
Efficacy
139 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90/B10>70,000
Minimum ambient temperature
-25°C

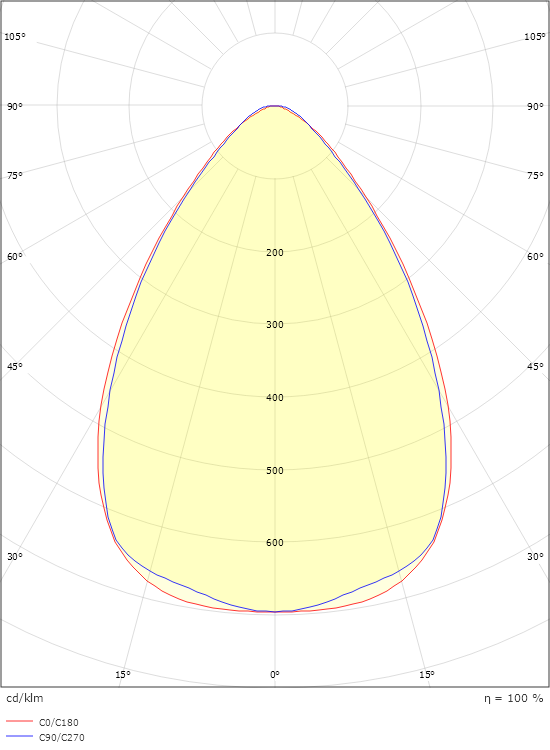

Light distribution
Direct
Optic
Lens Medium
Beam angle
Medium

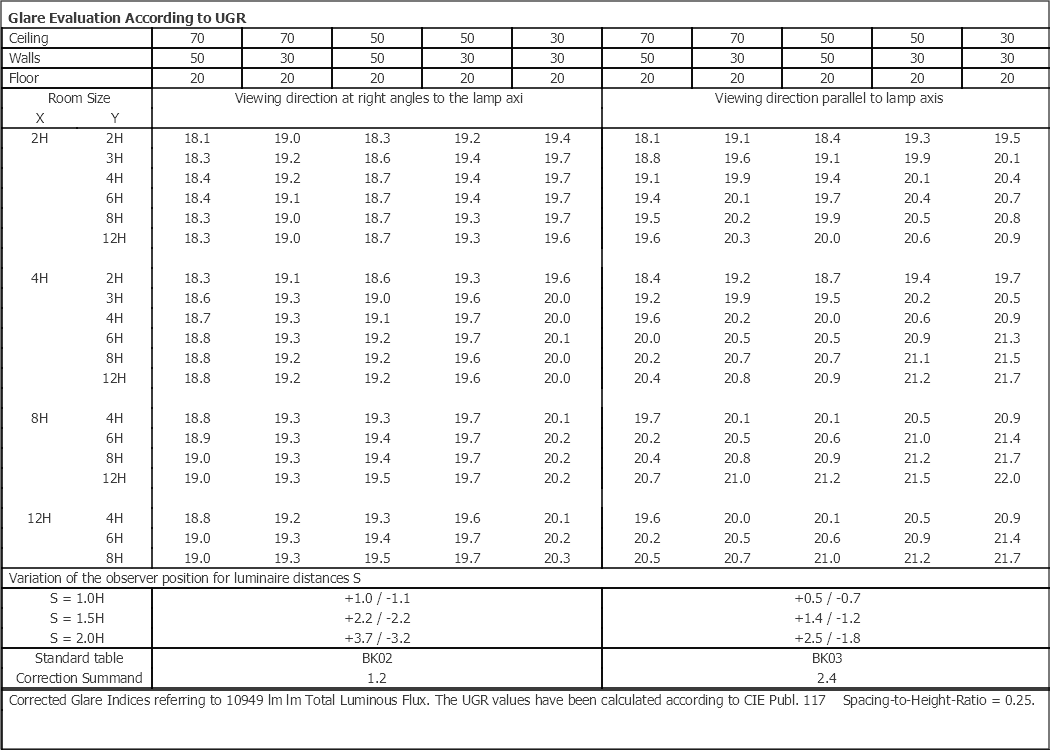

UGR
UGR<19
Photobiological safety
RG 1

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP23

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White (RAL 9010, 20% gloss)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Module
1500 156mm
Connection
5-pole screwless terminal block with 5x2,5mm2 through wiring

Dimensions

Length (mm) L
1763
Width (mm) W
156
Height (mm) H
80
Weight (kg) gross/net
9 / 8.8

Packaging

Packaging dimensions (mm)
1785 x 174 x 85
