Farm 66

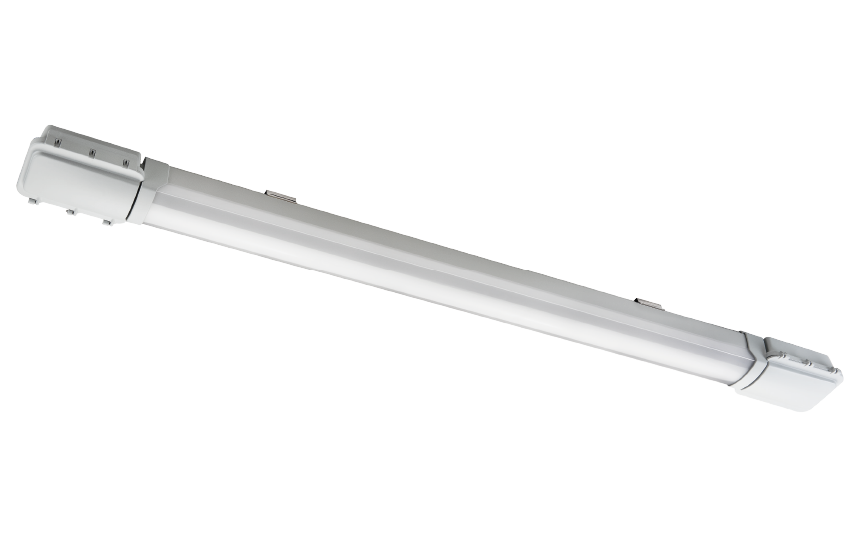

Farm 66 1500 Grey 5860lm 4000K Ra>80 DALI-2 / Push Dim

Article code
120012
EAN
7021981200121
Back to articlelist

Overview

Efficacy
136 lm/W
Lumen
5860lm
IP Class
IP66
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L90/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • d
  • el
  • ik08
  • ip66
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 120012 Revit file - Generic Farm 66 1500 - generic Revit file - Face Based Farm 66 1500 - face based

See more

Eulumdat file (ldt) 7021981200121_Farm 66 1500 Grey 5860lm 4000K Ra80 DALI Push Dim Dialux file (uld) 7021981200121_Farm 66 1500 Grey 5860lm 4000K Ra80 DALI Push Dim Relux file (rolf) 7021981200121_Farm_66_1500_Grey_5860lm_4000K_Ra_80_DALI_Push_Dim Mounting instruction Farm 66_User Manual HACCP 4724055-240003_Test Attestation (SG Armaturen AS - Farm 66) CE Declaration Farm 66

How to specify

Text copied to clipboard

Farm 66 1500 Grey 5860lm 4000K Ra>80 DALI-2 / Push Dim, Article code: 120012, EAN: 7021981200121, IP66, IK08, Electrical: System wattage: 43W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 25, C16: 40, Leakage current (mA): 0.32, Light technic: Type of light source: LED, Luminous flux: 5860lm, Efficacy: 136 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B50>50,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Opal, UGR: UGR<28, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP66, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Food Safety approved (IFS and HACCP): Yes, Materials and finish: Housing: PC with ammonia-protection coating, end caps in ASA, Colour: Grey, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Surface, Indoor, Module: 1500, Connection: 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring, Dimensions: Length (mm) L: 1460, Width (mm) W: 112, Height (mm) H: 67, Weight (kg) gross/net: 2.236 / 1.885, Packaging: Packaging dimensions (mm): 1466 x 114 x 71

Electrical

System wattage
43W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 15, B16: 24, C10: 25, C16: 40
Leakage current (mA)
0.32

Light technic

Type of light source
LED
Luminous flux
5860lm
Efficacy
136 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B50>50,000
Minimum ambient temperature
-25°C

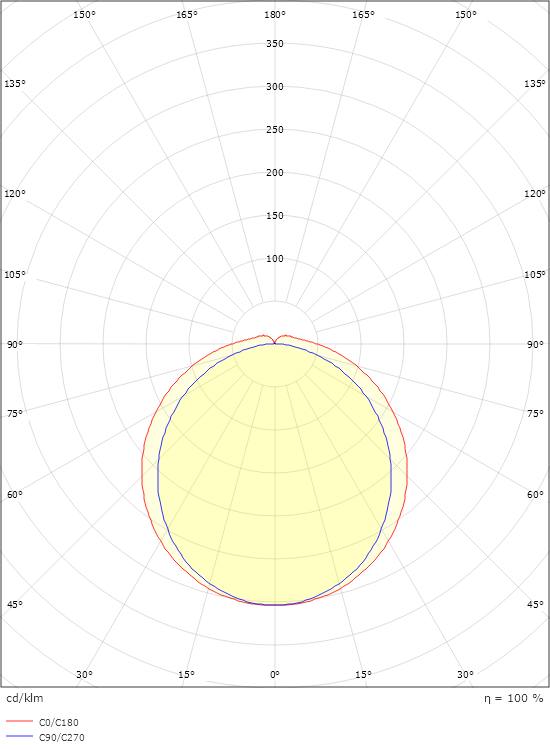

Light distribution
Direct
Optic
Opal
UGR
UGR<28

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP66
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
Food Safety approved (IFS and HACCP)
Yes

Materials and finish

Housing
PC with ammonia-protection coating, end caps in ASA
Colour
Grey
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Surface, Indoor
Module
1500
Connection
7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring

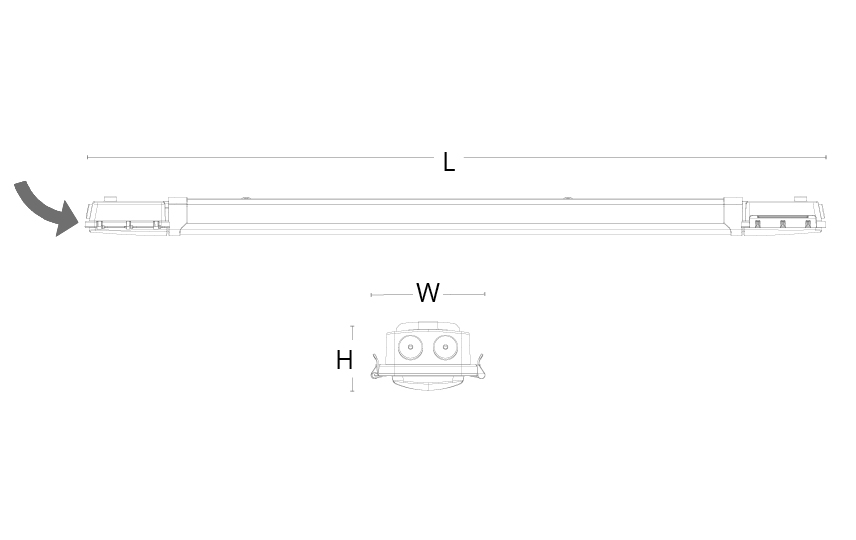

Dimensions

Length (mm) L
1460
Width (mm) W
112
Height (mm) H
67
Weight (kg) gross/net
2.236 / 1.885

Packaging

Packaging dimensions (mm)
1466 x 114 x 71
