Tysnes 66

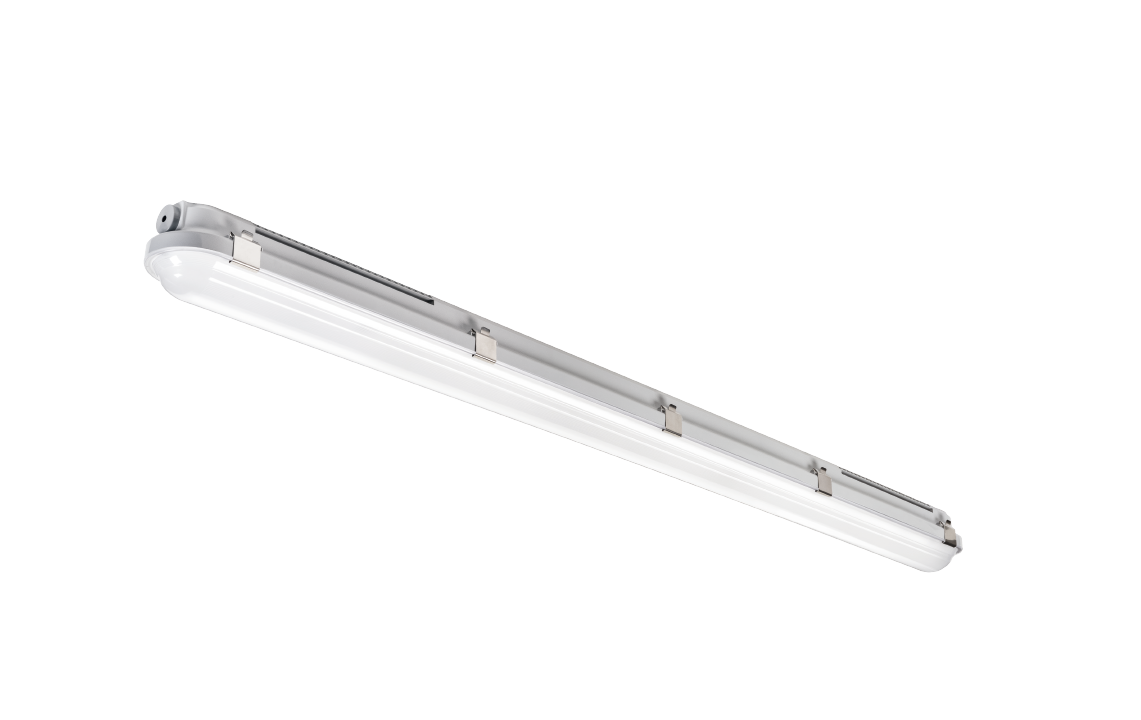

Tysnes 66 is a tri-proof luminaire for garages, storage rooms and production facilities. It has low power consumption, high lumen output and long lifetime.It can easily be mounted on ceilings with clips or suspended in wires. Sturdy steel clips attached to the luminaire holds the diffuser. It has cable entries in both ends and weakening for cabling from the back.Tysnes 66 comes in 3 lengths and has dip switches on the driver that allows setting the required light level. Also available as emergency light, with a 3-hour battery pack.

Article list

Tysnes 66

Indoor Surface Direct 3000K, 4000K SDCM: 3 Class I IK10 IP66 Ra>80 L80/B20> 100,000

Filters

Module

System wattage

Lumen

Control gear

Beam angle

Filters

						Others	Tools
120072	1500	43W	6720lm	DALI-2	117°	156 lm/W, L1500 x W85 x H80, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
120037	1500	40W	6400lm	DALI-2	117°	160 lm/W, L1500 x W85 x H80, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120038	650	14W	2060lm	DALI-2	121°	147 lm/W, L650 x W85 x H80, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120039	1200	34W	5510lm	DALI-2	116°	162 lm/W, L1200 x W85 x H80, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120030	650	14W	2060lm	On/Off	121°	147 lm/W, L650 x W85 x H80, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120031	1200	34W	5510lm	On/Off	116°	162 lm/W, L1200 x W85 x H80, 3-pole screwless terminal block with 3x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120032	1500	40W	6400lm	On/Off	117°	160 lm/W, L1500 x W85 x H80, 3-pole screwless terminal block with 3x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120035	1200	34W	5510lm	Sensor	117°	162 lm/W, L1200 x W85 x H80, 5-pole screwless terminal block with 3x2,5mm2 and 2x1,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120036	1500	40W	6400lm	Sensor	117°	160 lm/W, L1500 x W85 x H80, 5-pole screwless terminal block with 3x2,5mm2 and 2x1,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
120072	1500	43W	6720lm	DALI-2	117°	156 lm/W, L1500 x W85 x H80, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
120037	1500	40W	6400lm	DALI-2	117°	160 lm/W, L1500 x W85 x H80, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120038	650	14W	2060lm	DALI-2	121°	147 lm/W, L650 x W85 x H80, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120039	1200	34W	5510lm	DALI-2	116°	162 lm/W, L1200 x W85 x H80, 5-pole screwless terminal block with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120030	650	14W	2060lm	On/Off	121°	147 lm/W, L650 x W85 x H80, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120031	1200	34W	5510lm	On/Off	116°	162 lm/W, L1200 x W85 x H80, 3-pole screwless terminal block with 3x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120032	1500	40W	6400lm	On/Off	117°	160 lm/W, L1500 x W85 x H80, 3-pole screwless terminal block with 3x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120035	1200	34W	5510lm	Sensor	117°	162 lm/W, L1200 x W85 x H80, 5-pole screwless terminal block with 3x2,5mm2 and 2x1,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
120036	1500	40W	6400lm	Sensor	117°	160 lm/W, L1500 x W85 x H80, 5-pole screwless terminal block with 3x2,5mm2 and 2x1,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
120063	Tysnes 66 45° Fastening Steel	L45 x W43 x H43	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044900	Wirekit 2x5m	L19 x W25 x H150	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044913	Mounting kit for adjustable angulation	L100 x W98 x H95	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
