Farm 66

Farm 66 Pro 1500 Grey 9820lm 4000K Ra>80 DALI-2 / Push Dim

Article code
120014
EAN
7021981200145
Back to articlelist

Overview

Efficacy
151 lm/W
Lumen
9820lm
IP Class
IP66
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • d
  • el
  • ik08
  • ip66
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 120014 Mounting instruction Farm 66_User Manual CE Declaration Farm 66 Relux file (rolf) 7021981200145_Farm_66_Pro_1500_Grey_9820lm_4000K_Ra_80_DALI___Push_Dim Eulumdat file (ldt) 7021981200145_Farm 66 Pro 1500 Grey 9820lm 4000K Ra80 DALI Push Dim Dialux file (uld) 7021981200145_Farm 66 Pro 1500 Grey 9820lm 4000K Ra80 DALI Push Dim Revit file - Generic Farm 66 1500 - generic Revit file - Face Based Farm 66 1500 - face based HACCP 4724055-240003_Test Attestation (SG Armaturen AS - Farm 66)

How to specify

Text copied to clipboard

Farm 66 Pro 1500 Grey 9820lm 4000K Ra>80 DALI-2 / Push Dim, Article code: 120014, EAN: 7021981200145, IP66, IK08, Electrical: System wattage: 65W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 20, B16: 32, C10: 33, C16: 54, Leakage current (mA): 0.32, Light technic: Type of light source: LED, Luminous flux: 9820lm, Efficacy: 151 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Minimum ambient temperature: -40°C, Light distribution: Direct, Optic: Opal, UGR: UGR>28, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP66, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: B, Food Safety approved (IFS and HACCP): Yes, Materials and finish: Colour: Grey, Mounting/Connection: Mounting: Surface, Indoor, Module: 1500, Connection: 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring, Dimensions: Length (mm) L: 1460, Width (mm) W: 112, Height (mm) H: 67, Weight (kg) gross/net: 2.236 / 1.885, Packaging: Packaging dimensions (mm): 1466 x 114 x 71

Electrical

System wattage
65W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 20, B16: 32, C10: 33, C16: 54
Leakage current (mA)
0.32

Light technic

Type of light source
LED
Luminous flux
9820lm
Efficacy
151 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000
Minimum ambient temperature
-40°C

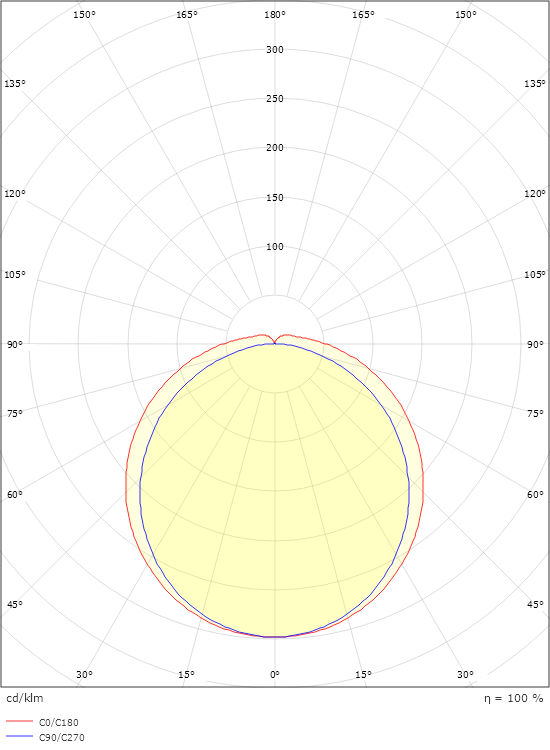

Light distribution
Direct
Optic
Opal
UGR
UGR>28

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP66
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
B
Food Safety approved (IFS and HACCP)
Yes

Materials and finish

Colour
Grey

Mounting/Connection

Mounting
Surface, Indoor
Module
1500
Connection
7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring

Dimensions

Length (mm) L
1460
Width (mm) W
112
Height (mm) H
67
Weight (kg) gross/net
2.236 / 1.885

Packaging

Packaging dimensions (mm)
1466 x 114 x 71
