Tube Micro R

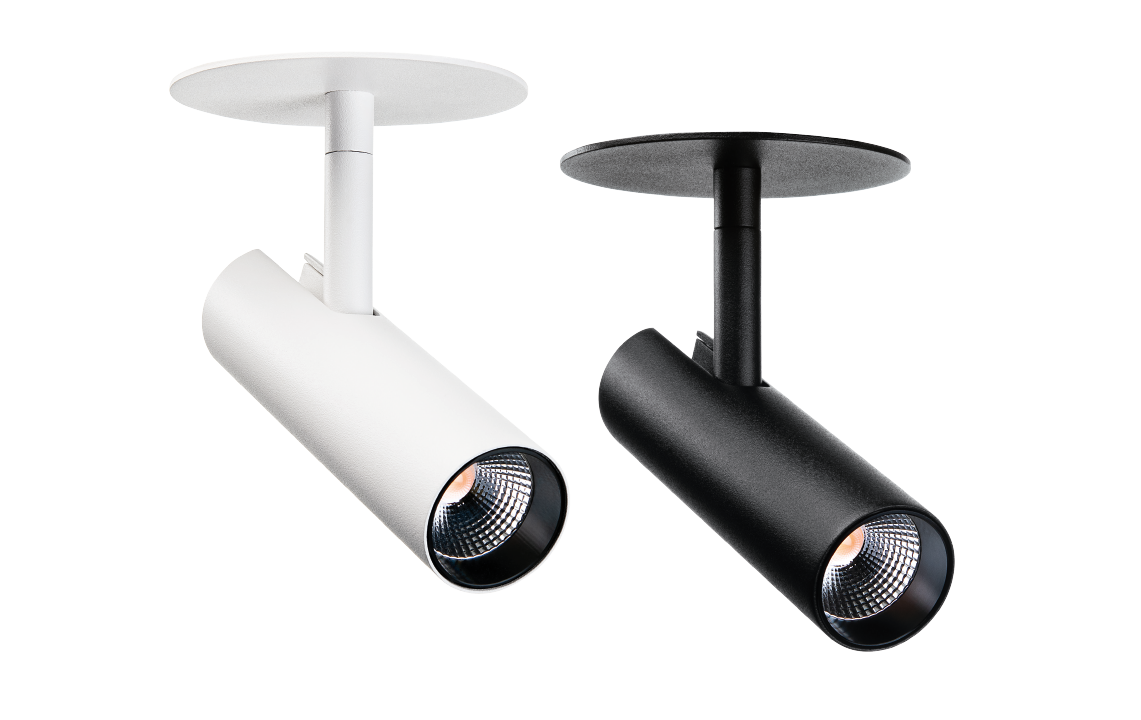

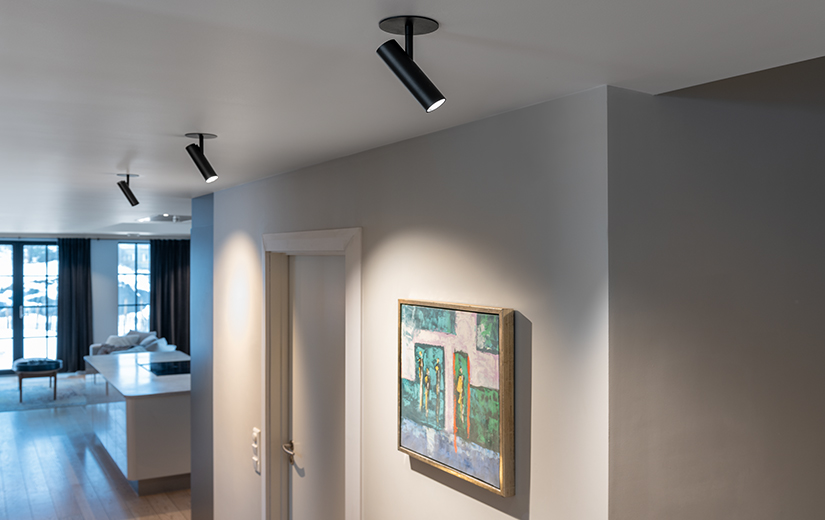

Tube Micro R is a stylish, minimalist built-in spot for installation in level or sloping ceilings. Its intense light can be used indirectly for general lighting or directly to highlight parts of the surroundings. The spot can be turned and tilted to direct the light to exactly where light is needed.Tube Micro R can be installed easily in holes in the ceiling using springs. The luminaire is ideal for refurbishments, as it fits in holes from Ø68–83 mm. The luminaire also fits SG’s Rehabrings (accessory) up to Ø250. The driver and junction box are IsoSafe and can be installed directly into insulation. Can be looped and is Class II, which facilitates easy replacement where there is no earth lead.Tube Micro R comes as standard with a low-glare black bezel. Other bezels are available separately as accessories.

Article list

Tube Micro R

Indoor Direct Recessed SDCM: 2 Class II IP20 Beam angle: 36° L90/B10> 100,000

Filters

Color

Colour temperature

System wattage

Lumen

Control gear

Filters

					Others	Tools
320755	2000-2800K	12W	590lm	DALI-2	49 lm/W, L135 x W39 x H135, DimToWarm, Ra>95	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320712	2000-2800K	12W	590lm	Trailing edge	49 lm/W, L135 x W39 x H135, DimToWarm, Ra>95	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320860	2000-2800K	12W	590lm	Trailing edge	49 lm/W, L135 x W39 x H135, DimToWarm, Ra>95	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
320752	2000-2800K	12W	590lm	DALI-2	49 lm/W, L135 x W39 x H135, DimToWarm, Ra>95	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320709	2000-2800K	12W	590lm	Trailing edge	49 lm/W, L135 x W39 x H135, DimToWarm, Ra>95	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320753	2700K	15W	680lm	DALI-2	45 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320710	2700K	15W	680lm	Trailing edge	45 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320859	2700K	15W	680lm	Trailing edge	45 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
320750	2700K	15W	680lm	DALI-2	45 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320707	2700K	15W	680lm	Trailing edge	45 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320754	3000K	15W	700lm	DALI-2	47 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320711	3000K	15W	700lm	Trailing edge	47 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320751	3000K	15W	700lm	DALI-2	47 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320708	3000K	15W	700lm	Trailing edge	47 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

					Others	Tools
320755	2000-2800K	12W	590lm	DALI-2	49 lm/W, L135 x W39 x H135, DimToWarm, Ra>95	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320712	2000-2800K	12W	590lm	Trailing edge	49 lm/W, L135 x W39 x H135, DimToWarm, Ra>95	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320860	2000-2800K	12W	590lm	Trailing edge	49 lm/W, L135 x W39 x H135, DimToWarm, Ra>95	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
320752	2000-2800K	12W	590lm	DALI-2	49 lm/W, L135 x W39 x H135, DimToWarm, Ra>95	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320709	2000-2800K	12W	590lm	Trailing edge	49 lm/W, L135 x W39 x H135, DimToWarm, Ra>95	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320753	2700K	15W	680lm	DALI-2	45 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320710	2700K	15W	680lm	Trailing edge	45 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320859	2700K	15W	680lm	Trailing edge	45 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
320750	2700K	15W	680lm	DALI-2	45 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320707	2700K	15W	680lm	Trailing edge	45 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320754	3000K	15W	700lm	DALI-2	47 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320711	3000K	15W	700lm	Trailing edge	47 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320751	3000K	15W	700lm	DALI-2	47 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320708	3000K	15W	700lm	Trailing edge	47 lm/W, L135 x W39 x H135, Ra 98	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
9143	Rehab Ring Black 133mm for Junistar, Uniled, Soft & Jupiter Stainless steel	L133 x W133 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9236	Rehab Ring Black 180mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø180 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320681	Tube Micro Black Ø39 Bezel Aluminium	Ø37 x H11	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320682	Tube Micro Gold Ø39 Bezel Aluminium	Ø37 x H11	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320756	Tube Micro Opal 10mm Decoration ring	Ø39 x H21	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9223	Rehab Ring White 133mm for Junistar, Uniled, Soft & Jupiter Stainless steel	L133 x W133 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9224	Rehab Ring White 180mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø180 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
9227	Rehab Ring White 250mm for Junistar, Uniled, Soft & Jupiter Stainless steel	Ø250 x H45	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
320680	Tube Micro White Ø39 Bezel Aluminium	Ø37 x H11	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
