Tube Micro R
Tube Micro R Black DimToWarm 590lm 2000-2800K Ra>95 Trailing edge
- Article code
- 320712
- EAN
- 7021983207128
Overview
- Efficacy
- 49 lm/W
- Lumen
- 590lm
- IP Class
- IP20
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
Electrical
- System wattage
- 12W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 43, B16: 69, C10: 43, C16: 69
Light technic
- Type of light source
- LED
- Luminous flux
- 590lm
- Efficacy
- 49 lm/W
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>95
- MacAdams factor
- SDCM: 2
- Lifetime
- L90/B10>100,000

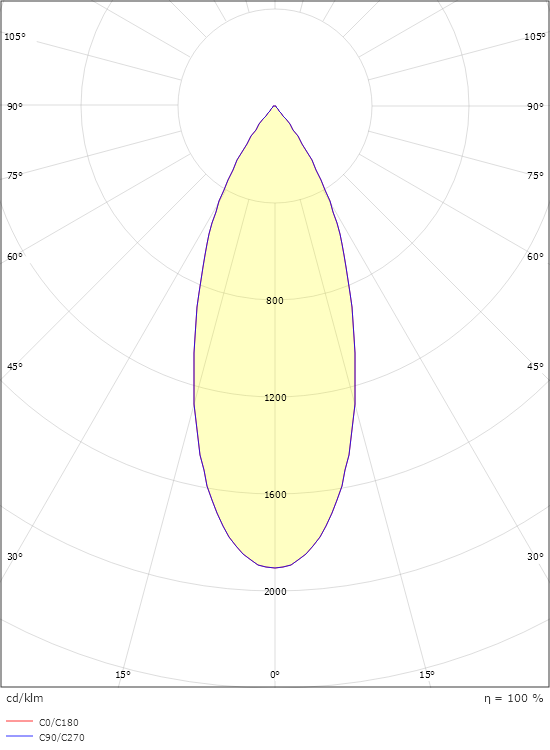

- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 36°
- Visible flicker (PstLM)
- 0.06
- Stroboscopic flicker (SVM)
- 0.05
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class II
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
Mounting/Connection
- Mounting
- Recessed, Indoor
Dimensions
- Length (mm) L
- 135
- Width (mm) W
- 39
- Height (mm) H
- 135
- Cut-out (mm)
- 83
- Distance to flammable materials
- 10mm
- Weight (kg) gross/net
- 0.579 / 0.478
Packaging
- Packaging dimensions (mm)
- 215 x 100 x 105
