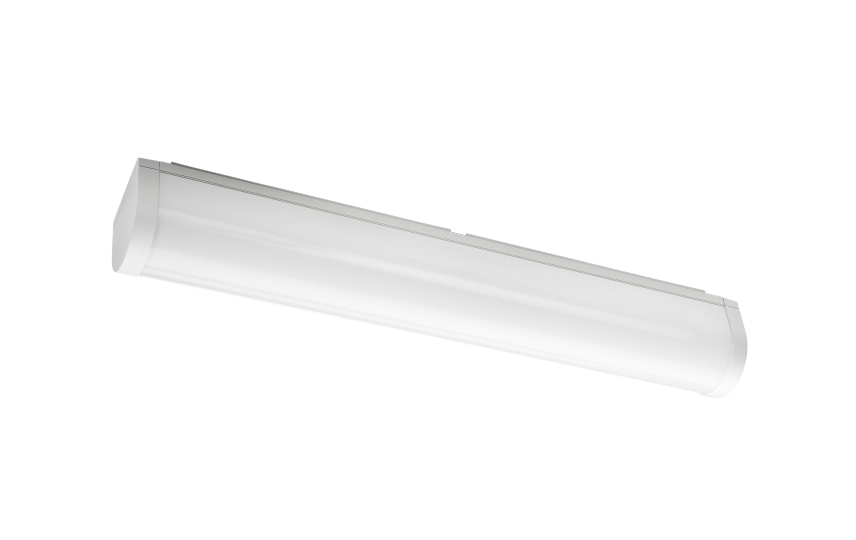

Prelude

Prelude White 1050lm 2700K Ra>90 Trailing edge

SG code
111340
EAN
7021981113407
Back to articlelist

Overview

Efficacy
95 lm/W
Lumen
1050lm
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ik05
  • ip44
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 111340 Mounting instruction Prelude_User Manual EPD NEPD-8305-7981_Prelude CE Declaration Prelude LED Relux file (rolf) 7021981113407_Prelude_White_1050lm_2700K_Ra_90_Trailing_edge Eulumdat file (ldt) 7021981113407_Prelude White 1050lm 2700K Ra90 Trailing edge Dialux file (uld) 7021981113407_Prelude White 1050lm 2700K Ra90 Trailing edge Revit file - Generic Prelude L510 x W70 x H80 x D80 - generic Revit file - Face Based Prelude L510 x W70 x H80 x D80 - face based

How to specify

Text copied to clipboard

Prelude White 1050lm 2700K Ra>90 Trailing edge, Article code: 111340, EAN: 7021981113407, IP44 (mounted horizontally) / IP20 (mounted vertically), IK05, Electrical: System wattage: 11W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 23, B16: 37, C10: 29, C16: 46, Light technic: Type of light source: LED, Luminous flux: 1050lm, Efficacy: 95 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Lifetime: L80/B10>100,000, Light distribution: Direct, Optic: Opal, UGR: UGR<25, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK05, IP Class: IP44 (mounted horizontally) / IP20 (mounted vertically), Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Aluminium, Colour: Matte white (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 510, Width (mm) W: 70, Height (mm) H: 80, Depth (D): 80, Weight (kg) gross/net: 0.842 / 0.82, Packaging: Packaging dimensions (mm): 520 x 90 x 80

Electrical

System wattage
11W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 23, B16: 37, C10: 29, C16: 46

Light technic

Type of light source
LED
Luminous flux
1050lm
Efficacy
95 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000
Lifetime
L80/B10>100,000

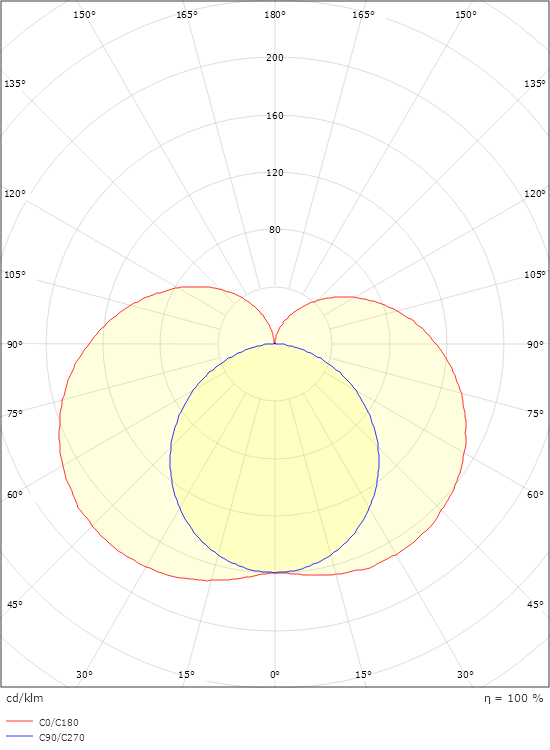

Light distribution
Direct
Optic
Opal
UGR
UGR<25
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK05
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Aluminium
Colour
Matte white (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

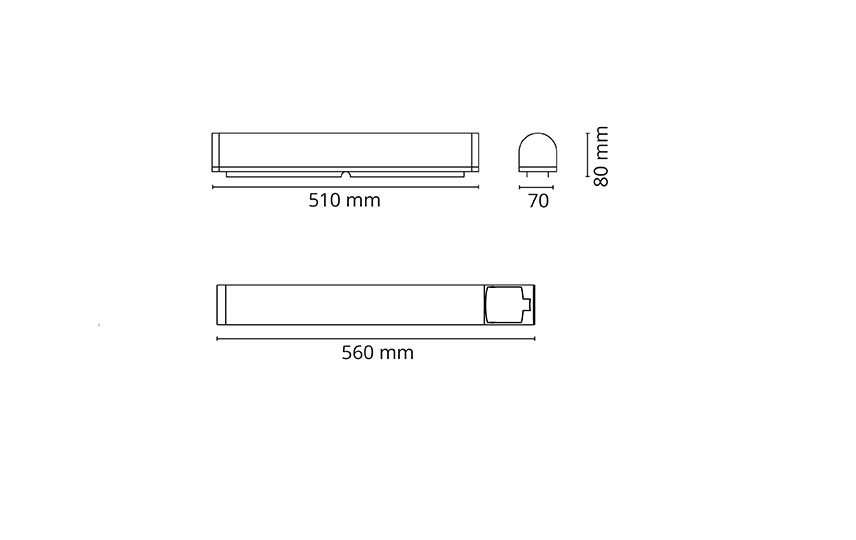

Dimensions

Length (mm) L
510
Width (mm) W
70
Height (mm) H
80
Depth (D)
80
Weight (kg) gross/net
0.842 / 0.82

Packaging

Packaging dimensions (mm)
520 x 90 x 80
