Prelude

Prelude White w/ 2 x outlet 1020lm 2700K Ra>90 Trailing edge

Article code
111343
EAN
7021981113438
Back to articlelist

Overview

Efficacy
73 lm/W
Lumen
1020lm
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B10>
Mounting
Surface, Indoor
  • indoor
  • ik05
  • ip44
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 111343 Revit file - Generic Preude L630 x W70 x H81 x D81 - generic Revit file - Face Based Prelude L630 x W70 x H81 x D81 - face based

See more

Eulumdat file (ldt) 7021981113438_Prelude White w 2 x outlet 1020lm 2700K Ra90 Trailing edge dimming Dialux file (uld) 7021981113438_Prelude White w 2 x outlet 1020lm 2700K Ra90 Trailing edge dimming Relux file (rolf) 7021981113438_Prelude_White_w__2_x_outlet_1020lm_2700K_Ra_90_Trailing_edge_dimming EPD NEPD-8553-8233_Prelude-Brushed-Steel-w-Outlet Mounting instruction Prelude_User Manual CE Declaration Prelude LED

How to specify

Text copied to clipboard

Prelude White w/ 2 x outlet 1020lm 2700K Ra>90 Trailing edge, Article code: 111343, EAN: 7021981113438, IP44 (mounted horizontally) / IP20 (mounted vertically), IK05, Electrical: System wattage: 14W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 23, B16: 37, C10: 29, C16: 46, Light technic: Type of light source: LED, Luminous flux: 1020lm, Efficacy: 73 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L70/B10>50,000, Light distribution: Direct, Optic: Opal, UGR: UGR<25, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK05, IP Class: IP44 (mounted horizontally) / IP20 (mounted vertically), Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Matte white (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 630, Width (mm) W: 70, Height (mm) H: 81, Depth (D): 81, Weight (kg) gross/net: 1.2 / 0.81, Packaging: Packaging dimensions (mm): 640 x 90 x 80

Electrical

System wattage
14W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 23, B16: 37, C10: 29, C16: 46

Light technic

Type of light source
LED
Luminous flux
1020lm
Efficacy
73 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L70/B10>50,000

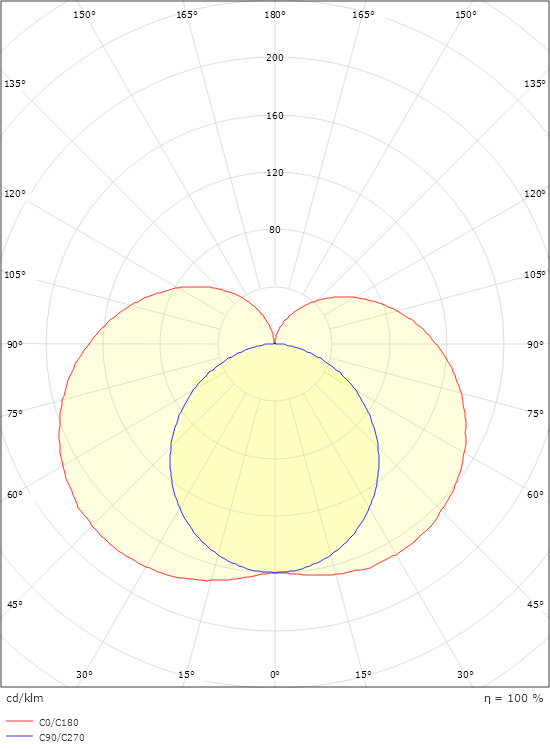

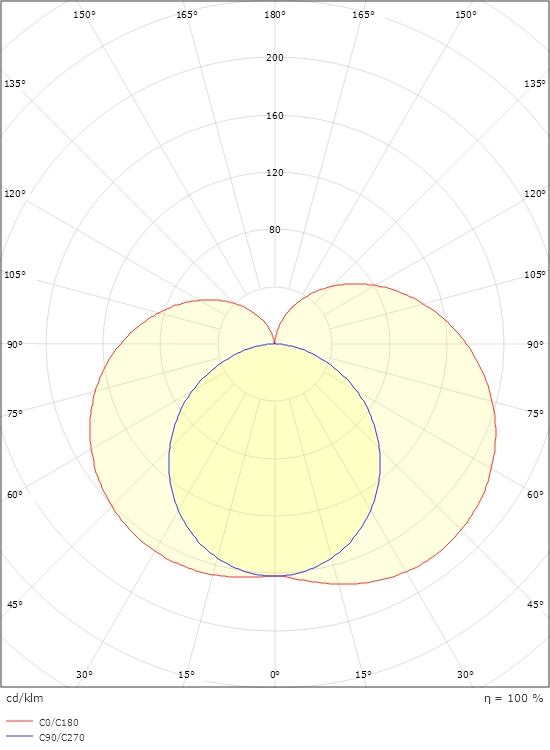

Light distribution
Direct
Optic
Opal
UGR
UGR<25
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK05
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Matte white (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

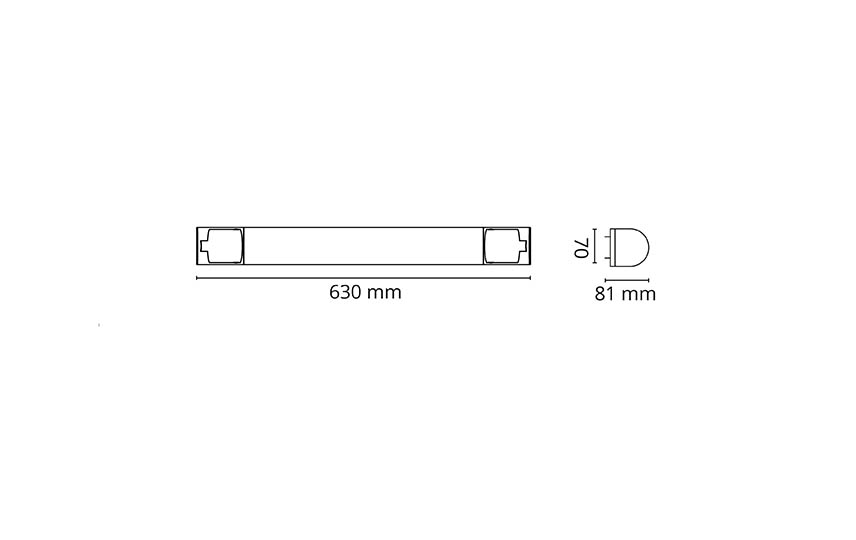

Dimensions

Length (mm) L
630
Width (mm) W
70
Height (mm) H
81
Depth (D)
81
Weight (kg) gross/net
1.2 / 0.81

Packaging

Packaging dimensions (mm)
640 x 90 x 80
