Bell

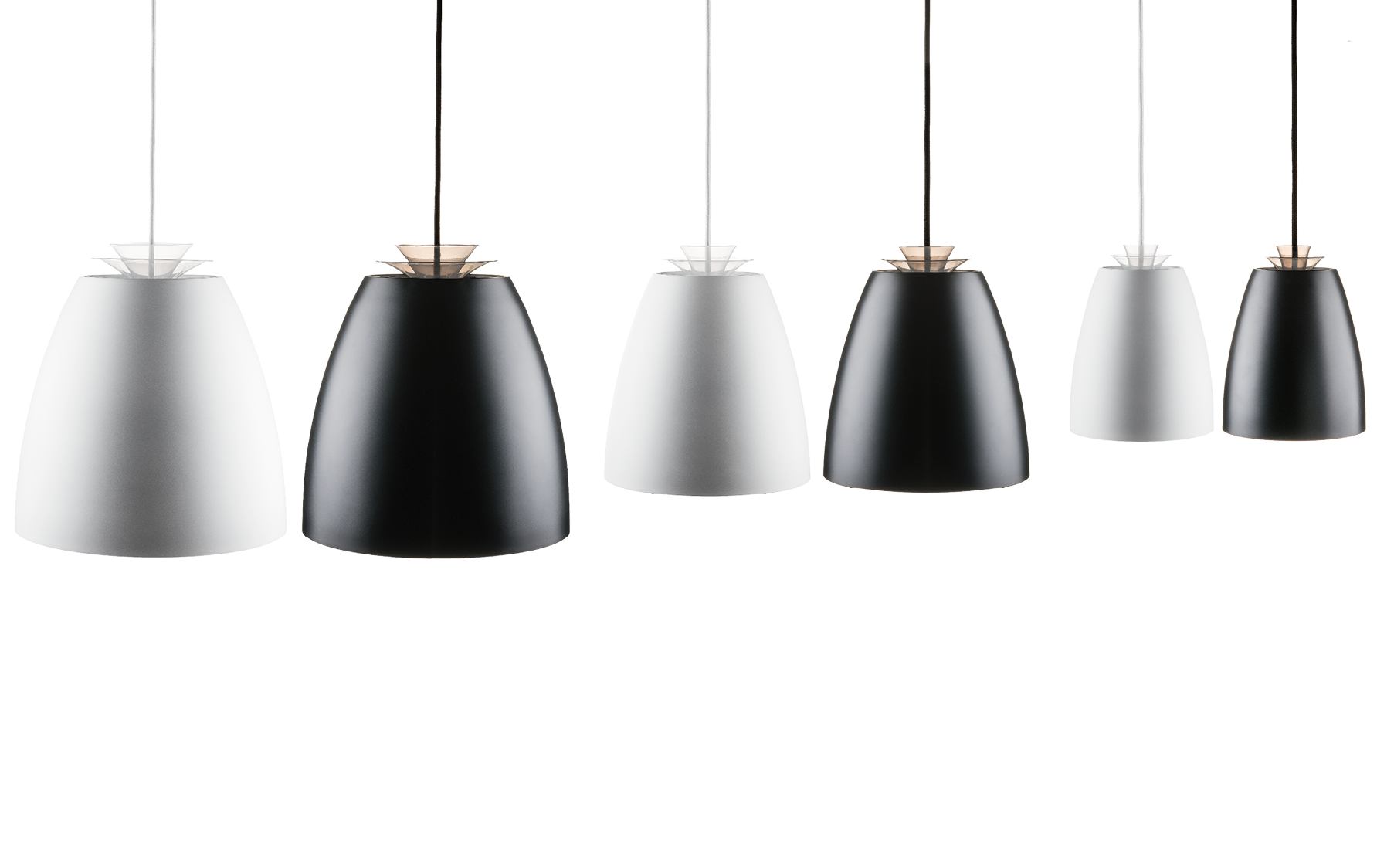

Ceiling lamp with deep-mounted light source that provides a comfortable light without glare. Supplied with a ceiling rose. Can also be fitted in adapters for Zip 230V rails and ShopLine 3-phase rails.Bell comes in three sizes and three different color combinations: Black/White, White/White and Black/Gold.

Article list

Bell

Indoor Direct/Indirect, Direct Surface SDCM: 3, 6 Class II IP20 L70/B50> 50,000 Ra>90

Filters

Color

Version

Colour temperature

System wattage

Lumen

Filters

						Others	Tools
312362	Mini	2700K	5W	240lm	Trailing edge	Beam angle: 137°, 48 lm/W, Ø160 x H205, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312365	Midi	2700K	10W	560lm	Trailing edge	Beam angle: 127°, 56 lm/W, Ø230 x H261, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312368	Maxi	2700K	15W	820lm	Trailing edge	Beam angle: 130°, 55 lm/W, Ø300 x H317, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312361	Mini	2700K	5W	250lm	Trailing edge	Beam angle: 100°, 50 lm/W, Ø160 x H205, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312364	Midi	2700K	10W	590lm	Trailing edge	Beam angle: 106°, 59 lm/W, Ø230 x H261, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312367	Maxi	2700K	15W	840lm	Trailing edge	Beam angle: 104°, 56 lm/W, Ø300 x H317, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
830916		2700K	15W	1200lm	Trailing edge	Beam angle: 190°, 80 lm/W, Ø95 x L136	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312369	Mini	2700K	5W	240lm	Trailing edge	48 lm/W, Ø160 x H205, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312370	Midi	2700K	10W	560lm	Trailing edge	56 lm/W, Ø230 x H261, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312371	Maxi	2700K	15W	820lm	Trailing edge	55 lm/W, Ø300 x H317, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
830911		2700K	10W	806lm	Trailing edge	Beam angle: 190°, 81 lm/W, Ø60 x L110	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
830918		3000K	15W	1200lm	Trailing edge	Beam angle: 190°, 80 lm/W, Ø95 x L136	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
312362	Mini	2700K	5W	240lm	Trailing edge	Beam angle: 137°, 48 lm/W, Ø160 x H205, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312365	Midi	2700K	10W	560lm	Trailing edge	Beam angle: 127°, 56 lm/W, Ø230 x H261, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312368	Maxi	2700K	15W	820lm	Trailing edge	Beam angle: 130°, 55 lm/W, Ø300 x H317, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312361	Mini	2700K	5W	250lm	Trailing edge	Beam angle: 100°, 50 lm/W, Ø160 x H205, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312364	Midi	2700K	10W	590lm	Trailing edge	Beam angle: 106°, 59 lm/W, Ø230 x H261, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312367	Maxi	2700K	15W	840lm	Trailing edge	Beam angle: 104°, 56 lm/W, Ø300 x H317, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
830916		2700K	15W	1200lm	Trailing edge	Beam angle: 190°, 80 lm/W, Ø95 x L136	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312369	Mini	2700K	5W	240lm	Trailing edge	48 lm/W, Ø160 x H205, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312370	Midi	2700K	10W	560lm	Trailing edge	56 lm/W, Ø230 x H261, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
312371	Maxi	2700K	15W	820lm	Trailing edge	55 lm/W, Ø300 x H317, Cable 3m, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
830911		2700K	10W	806lm	Trailing edge	Beam angle: 190°, 81 lm/W, Ø60 x L110	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
830918		3000K	15W	1200lm	Trailing edge	Beam angle: 190°, 80 lm/W, Ø95 x L136	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
830917	E27 LED White DimToWarm 1200lm 2000-2800K Ra>80	L135	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
830922	E27 LED White DimToWarm 350lm 2000-2800K Ra>80	L79	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
830913	E27 LED DimToWarm 806lm 2000-2800K Ra>80	L110	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3107	Zip 230V Black Adapter - Pendant	L84 x W23 x H90	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3109	Shopline Black Pendant Adapter	L93 x W32 x H62	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3163	Black Ceiling Box for Pendant	L135 x W114	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
314331	Black Round Ceiling Box for Pendant	L102 x W102 x H25	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
314334	Black Recessed Ceiling Box for Pendant	Ø94 x H51	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3046	Zip 230V White Adapter - Pendant	L84 x W23 x H90	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3108	Shopline White Pendant Adapter	L93 x W32 x H62	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
3164	White Ceiling Box for Pendant	L135 x W114	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
314332	White Round Ceiling Box for Pendant	L102 x W102 x H25	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
314333	White Recessed Ceiling Box for Pendant	Ø94 x H51	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
