SlimLine
SlimLine 270 White Rail 240lm 3000K Ra>90
- Article code
- 391201
- EAN
- 7021983912015
Overview
- Efficacy
- 100 lm/W
- Lumen
- 240lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L70/B50>
- Mounting
- Surface, Indoor
Tools
Downloads
Specification sheet
391201
pdf
(Opens in new tab)
Mounting instruction
SlimLine_User Manual
pdf
(Opens in new tab)
CE Declaration
SlimLine
pdf
(Opens in new tab)
Relux file (rolf)
7021983912015_SlimLine_270_White_Rail_240lm_3000K_Ra_90
rolf
Eulumdat file (ldt)
7021983912015_SlimlineWhite2.4WLED3000KRa90-34433
ldt
Dialux file (uld)
7021983912015_SlimlineWhite2.4WLED3000KRa90
uld
Revit file - Generic
Slimline 270mm - generic
rfa
Revit file - Face Based
Slimline 270mm - face based
rfa
Energy label
Slimline_Energy Label
pdf
(Opens in new tab)
Electrical
- System wattage
- 2.4W
- Voltage
- 24V
Light technic
- Type of light source
- LED
- Luminous flux
- 240lm
- Efficacy
- 100 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- MacAdams factor
- SDCM: 3
- Lifetime
- L70/B50>50,000

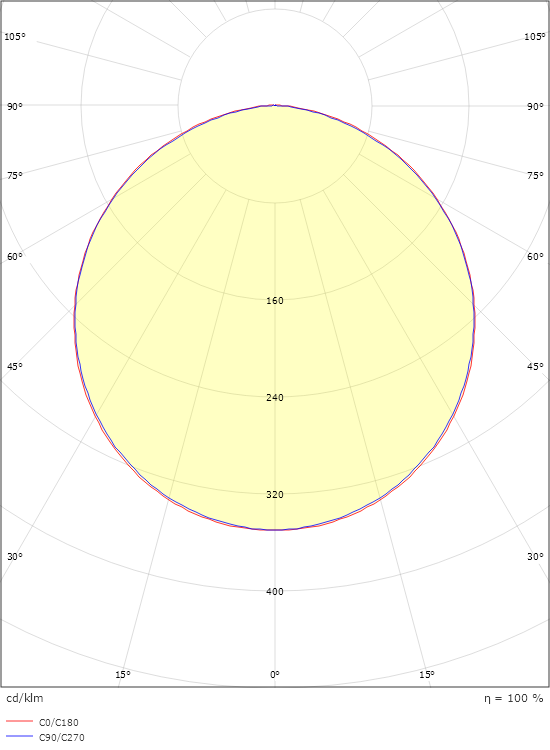

- Light distribution
- Direct
- Optic
- Opal
- UGR
- UGR<28
Protection
- Luminaire class
- Class III
- IP Class
- IP20
Energy and approvals
- Energy efficency class
- G
Materials and finish
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- Polycarbonat (PC)
Mounting/Connection
- Mounting
- Surface, Indoor
- Module
- 270
- Connection
- Screwless terminal block

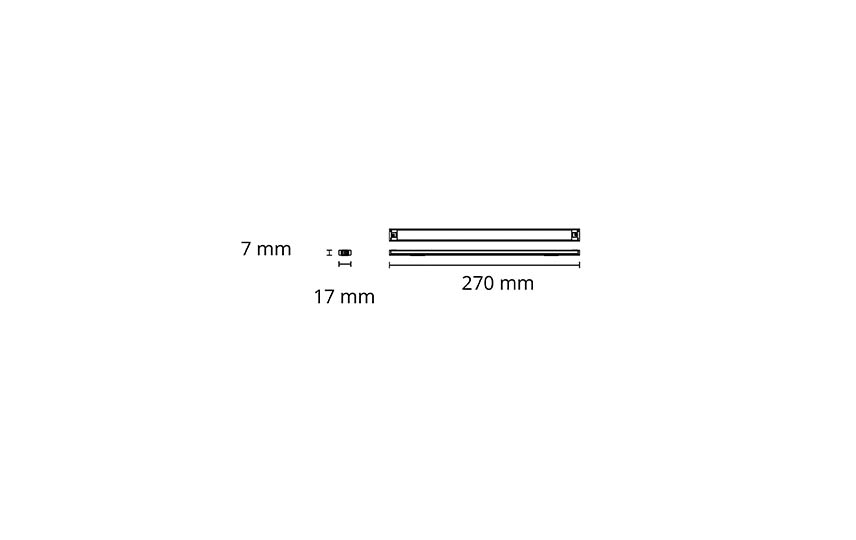

Dimensions
- Length (mm) L
- 270
- Width (mm) W
- 17
- Height (mm) H
- 7
- Weight (kg) gross/net
- 0.057 / 0.048
Packaging
- Packaging dimensions (mm)
- 340 x 21 x 11
