SlimLine Pro

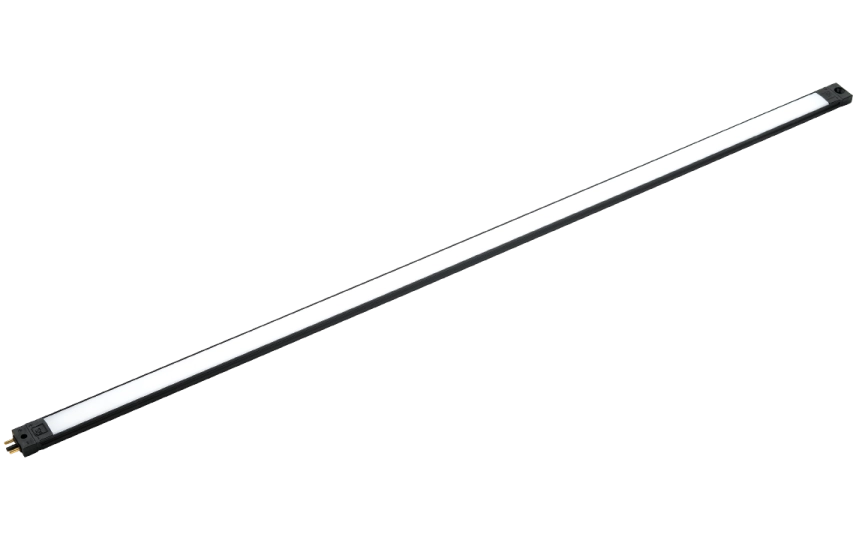

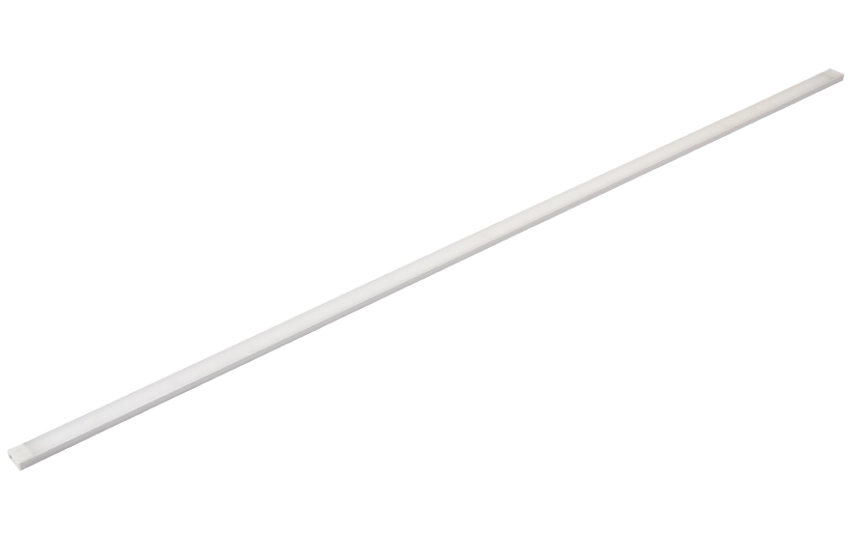

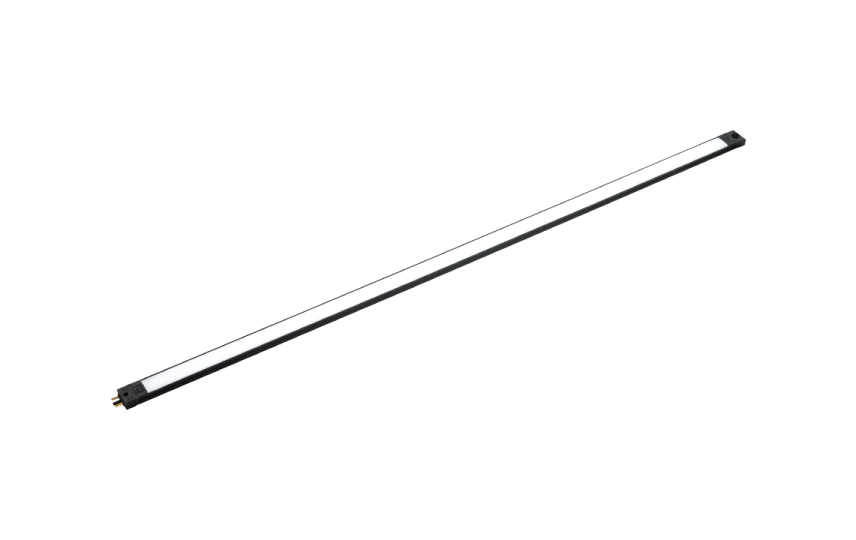

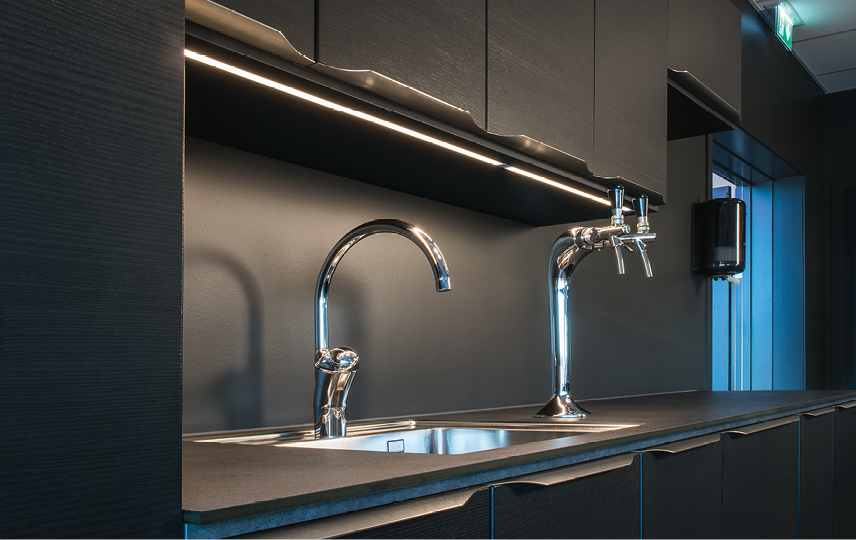

Slimline Pro is an ultra-thin LED rail system where the rails can be connected no matter their size. Various accessories are available for getting around corners etc. Slimline is connected to the associated drivers (accessory) Large lumen output, light beam angle and perfect colour rendering makes Slimline usable in many different applications. Slimline is dimmable using Dim or Phase-cut or depending on which driver is selected.
Article list
SlimLine Pro
:
Indoor
Light distribution:
Direct
Mounting type:
Surface
SDCM:
3
Luminaire class:
Class III
IP Class:
IP20
Colour rendering (Ra):
Ra>90
Beam angle:
110°
Lifetime:
L70/B50> 50,000
Filters
| Others | Tools | ||||||
|---|---|---|---|---|---|---|---|
| 270 | 2700K | 3.2W | 440lm |
|
|||
| 570 | 2700K | 6.5W | 830lm |
|
|||
| 870 | 2700K | 9.5W | 1130lm |
|
|||
| 170 | 2700K | 1.9W | 280lm |
|
|||
| 270 | 2700K | 4W | 490lm |
|
|||
| 570 | 2700K | 6.5W | 920lm |
|
|||
| 870 | 2700K | 9.5W | 1250lm |
|
|||
| 170 | 2700K | 1.9W | 310lm |
|
|||
| 270 | 3000K | 3.2W | 440lm |
|
|||
| 570 | 3000K | 6.5W | 830lm |
|
|||
| 870 | 3000K | 9.5W | 1130lm |
|
|||
| 170 | 3000K | 1.9W | 280lm |
|
|||
| 270 | 3000K | 4W | 490lm |
|
|||
| 570 | 3000K | 6.5W | 920lm |
|
|||
| 870 | 3000K | 9.5W | 1250lm |
|
|||
| 170 | 3000K | 1.9W | 310lm |
|
|||
| 270 | 4000K | 3.2W | 520lm |
|
|||
| 570 | 4000K | 6.5W | 970lm |
|
|||
| 870 | 4000K | 9.5W | 1320lm |
|
Black
Black
Black
Black
White
White
White
White
Sorry, we couldn’t find what you are looking for.
Drivers
| Others | Tools | ||||
|---|---|---|---|---|---|
| 90W | Trailing edge |
|
|||
| 20W | 1-10V / Push Dim |
|
|||
| 150W | DALI-2 / Push Dim |
|
|||
| 36W | Trailing edge |
|
|||
| 75W | Trailing edge |
|
|||
| 150W | Trailing edge |
|
Black
White
White
White
White
White
Sorry, we couldn’t find what you are looking for.
| Others | Tools | ||||||
|---|---|---|---|---|---|---|---|
| 270 | 2700K | 3.2W | 440lm |
|
|||
| 570 | 2700K | 6.5W | 830lm |
|
|||
| 870 | 2700K | 9.5W | 1130lm |
|
|||
| 170 | 2700K | 1.9W | 280lm |
|
|||
| 270 | 2700K | 4W | 490lm |
|
|||
| 570 | 2700K | 6.5W | 920lm |
|
|||
| 870 | 2700K | 9.5W | 1250lm |
|
|||
| 170 | 2700K | 1.9W | 310lm |
|
|||
| 270 | 3000K | 3.2W | 440lm |
|
|||
| 570 | 3000K | 6.5W | 830lm |
|
|||
| 870 | 3000K | 9.5W | 1130lm |
|
|||
| 170 | 3000K | 1.9W | 280lm |
|
|||
| 270 | 3000K | 4W | 490lm |
|
|||
| 570 | 3000K | 6.5W | 920lm |
|
|||
| 870 | 3000K | 9.5W | 1250lm |
|
|||
| 170 | 3000K | 1.9W | 310lm |
|
|||
| 270 | 4000K | 3.2W | 520lm |
|
|||
| 570 | 4000K | 6.5W | 970lm |
|
|||
| 870 | 4000K | 9.5W | 1320lm |
|
Sorry, we couldn’t find what you are looking for.
Accessories
| Image | Article code | Description | Dimensions | Tools |
|---|---|---|---|---|
| SlimLine Black PIR Sensor | L74 x W17 x H15 | |||

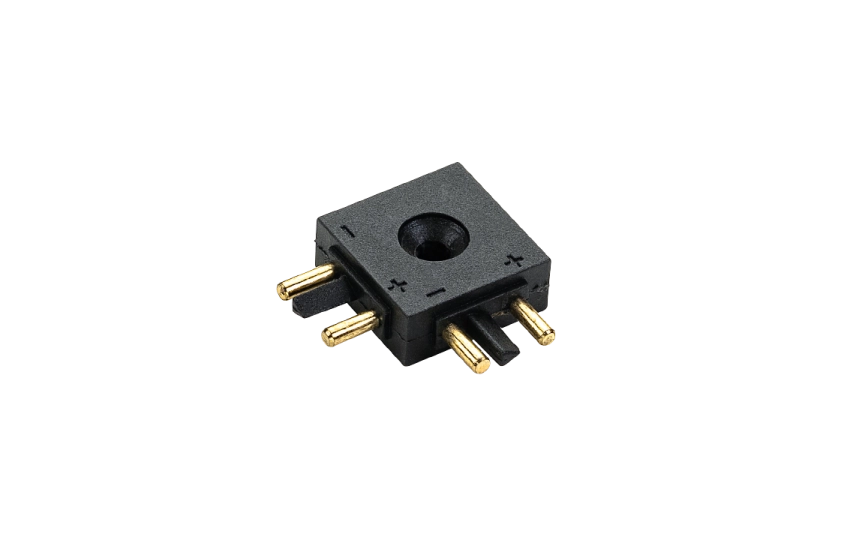

| SlimLine Black L Connector | L25 x W25 x H5 | |||
| SlimLine Black T Connector | L30 x W25 x H15 | |||
| SlimLine Black 50mm Flexible Connector | L105 x W17 x H7 | |||

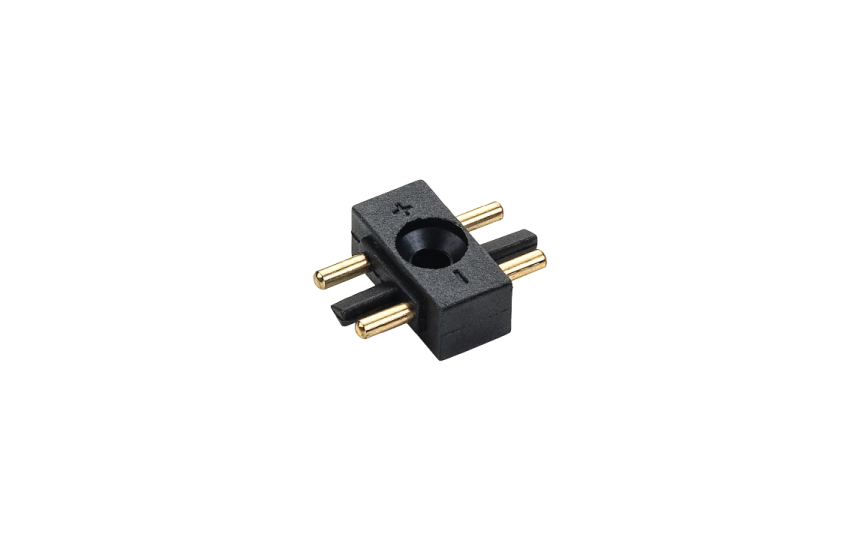

| SlimLine Black Connector | L25 x W15 x H5 | |||
| SlimLine Black Fastening | ||||
| SlimLine Black Connection cable 3000mm | L120 x W100 x H26 | |||
| SlimLine Black Switch | L60 x W17 x H18 | |||
| SlimLine White PIR Sensor | L74 x W17 x H15 | |||
| SlimLine White L Connector | L25 x W25 x H5 | |||
| SlimLine White T Connector | L30 x W25 x H15 | |||
| SlimLine White Connector | L25 x W15 x H5 | |||
| SlimLine White Switch | L60 x W17 x H18 | |||
| SlimLine 50mm Flexible Connector | L105 x W17 x H7 | |||
| SlimLine Fastening | ||||
| SlimLine Connection cable 3000mm | L120 x W100 x H26 |
