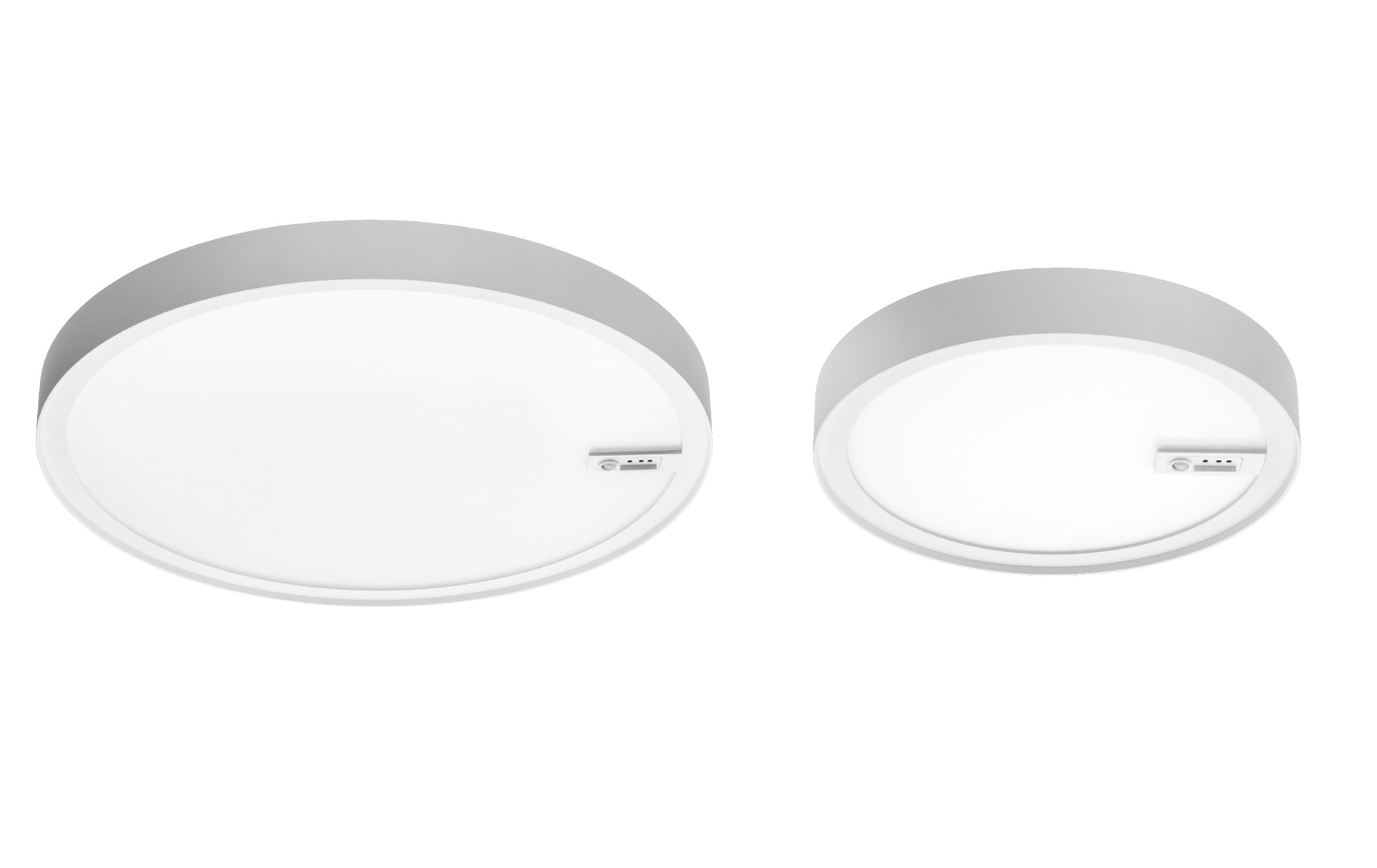

Disc Connect

Version of Disc which comes complete with driver and integrated wireless SG Connect sensor.

The sensor is discreetly positioned at the edge, switches on when it detects movement and switches off after a pre-selected period of time to save energy.

The sensor also includes an integrated daylight sensor. If this function is activated, the sensor will constantly work to provide the desired amount of light in its work area.

The lighting control is easy to configure using the SG Connect Commissioning App, and the luminaire can be used individually or as part of a larger system, which can easily be enlarged or reconfigured as needed.

Article list

Disc Connect

Indoor Direct Surface SDCM: 3 Class II IK10 IP20 L80/B20> 100,000

Filters

Color

Module

Colour temperature

System wattage

Lumen

Colour rendering (Ra)

Filters

							Others	Tools
606235	760	3000/4000K	48W	5320lm/5630lm	Connect	Ra>80	111 lm/W, Ø760 x H55, 760, Screwless terminal block, Beam angle: 88°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606234	760	3000/4000K	48W	5990lm/6340lm	Connect	Ra>80	125 lm/W, Ø760 x H55, 760, Screwless terminal block, Beam angle: 88°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606241	760	3000/4000K	48W	5092lm/5389lm	Connect	Ra>90	106 lm/W, Ø760 x H55, 760, Screwless terminal block, Beam angle: 88°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606232	480	3000K	31W	3390lm	Connect	Ra>80	109 lm/W, Ø470 x H55, 480, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606236	290	3000K	17W	1900lm	Connect	Ra>80	112 lm/W, Ø288 x H55, 290, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606170	480	3000K	36W	3560lm	Connect	Ra>80	99 lm/W, Ø470 x H55, 480, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606172	290	3000K	17W	1990lm	Connect	Ra>80	117 lm/W, Ø288 x H55, 290, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606237	290	3000K	17W	1692lm	Connect	Ra>90	100 lm/W, Ø288 x H55, 290, 3 pole Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606239	480	3000K	36W	3026lm	Connect	Ra>90	84 lm/W, Ø470 x H55, 480, 3 pole Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606171	480	4000K	36W	3780lm	Connect	Ra>80	105 lm/W, Ø470 x H55, 480, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606173	290	4000K	17W	2110lm	Connect	Ra>80	124 lm/W, Ø288 x H55, 290, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606238	290	4000K	17W	1794lm	Connect	Ra>90	106 lm/W, Ø288 x H55, 290, 3 pole Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606240	480	4000K	36W	3213lm	Connect	Ra>90	89 lm/W, Ø470 x H55, 480, 3 pole Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

							Others	Tools
606235	760	3000/4000K	48W	5320lm/5630lm	Connect	Ra>80	111 lm/W, Ø760 x H55, 760, Screwless terminal block, Beam angle: 88°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606234	760	3000/4000K	48W	5990lm/6340lm	Connect	Ra>80	125 lm/W, Ø760 x H55, 760, Screwless terminal block, Beam angle: 88°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606241	760	3000/4000K	48W	5092lm/5389lm	Connect	Ra>90	106 lm/W, Ø760 x H55, 760, Screwless terminal block, Beam angle: 88°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
606232	480	3000K	31W	3390lm	Connect	Ra>80	109 lm/W, Ø470 x H55, 480, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606236	290	3000K	17W	1900lm	Connect	Ra>80	112 lm/W, Ø288 x H55, 290, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606170	480	3000K	36W	3560lm	Connect	Ra>80	99 lm/W, Ø470 x H55, 480, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606172	290	3000K	17W	1990lm	Connect	Ra>80	117 lm/W, Ø288 x H55, 290, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606237	290	3000K	17W	1692lm	Connect	Ra>90	100 lm/W, Ø288 x H55, 290, 3 pole Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606239	480	3000K	36W	3026lm	Connect	Ra>90	84 lm/W, Ø470 x H55, 480, 3 pole Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606171	480	4000K	36W	3780lm	Connect	Ra>80	105 lm/W, Ø470 x H55, 480, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606173	290	4000K	17W	2110lm	Connect	Ra>80	124 lm/W, Ø288 x H55, 290, Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606238	290	4000K	17W	1794lm	Connect	Ra>90	106 lm/W, Ø288 x H55, 290, 3 pole Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
606240	480	4000K	36W	3213lm	Connect	Ra>90	89 lm/W, Ø470 x H55, 480, 3 pole Screwless terminal block, Beam angle: 85°	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Image	Article code	Description	Dimensions	Tools
	606095	Disc/Frosta Black Pendant Adapter Aluminium	L5000 x W102 x H22	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
	606094	Disc/Frosta White Pendant Adapter Aluminium	L5000 x W102 x H22	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
