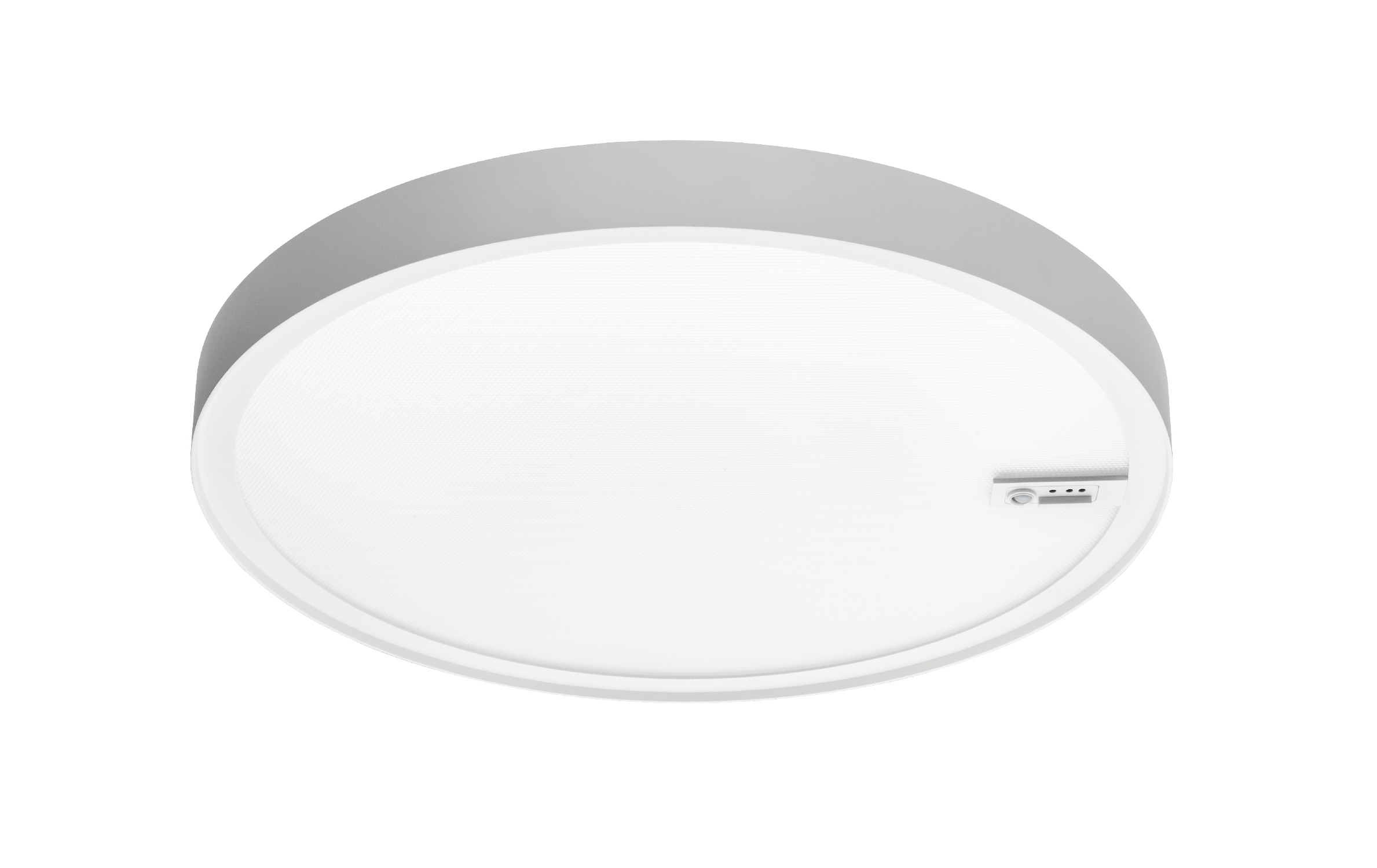

Disc Connect

Disc 480 White 3560lm 3000K Ra>80 Connect

Article code
606170
EAN
7021986061703
Back to articlelist

Overview

Efficacy
99 lm/W
Lumen
3560lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ik10
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 606170 Revit file - Generic Disc 480 connect - generic Revit file - Face Based Disc 480 connect - face based

See more

Eulumdat file (ldt) 7021986061703_Disc 480 Connect White 3560lm 3000K Ra80 Connect Dialux file (uld) 7021986061703_Disc 480 Connect White 3560lm 3000K Ra80 Connect Relux file (rolf) 7021986061703_Disc_480_Connect_White_3560lm_3000K_Ra_80_Connect EPD NEPD-12407-12466_Disc-480-Connect Mounting instruction Disc 480 Connect_User Manuals CE Declaration Disc Connect

How to specify

Text copied to clipboard

Disc 480 White 3560lm 3000K Ra>80 Connect, Article code: 606170, EAN: 7021986061703, IP20, IK10, Electrical: System wattage: 36W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 20, B16: 32, C10: 33, C16: 54, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 3560lm, Efficacy: 99 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 85°, Control/Dimming: Type: Connect, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Module: 480, Connection: Screwless terminal block, Dimensions: Height (mm) H: 55, Diameter (mm) D: 470, Weight (kg) gross/net: 4.845 / 4.433, Packaging: Packaging dimensions (mm): 490 x 485 x 60

Electrical

System wattage
36W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 20, B16: 32, C10: 33, C16: 54

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
3560lm
Efficacy
99 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

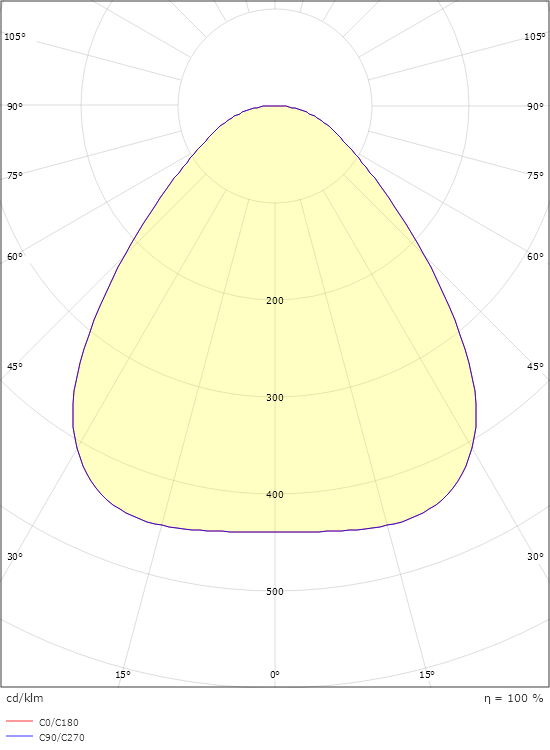

Light distribution
Direct
Optic
Opalprism
Beam angle
85°

Control/Dimming

Type
Connect

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Module
480
Connection
Screwless terminal block

Dimensions

Height (mm) H
55
Diameter (mm) D
470
Weight (kg) gross/net
4.845 / 4.433

Packaging

Packaging dimensions (mm)
490 x 485 x 60
