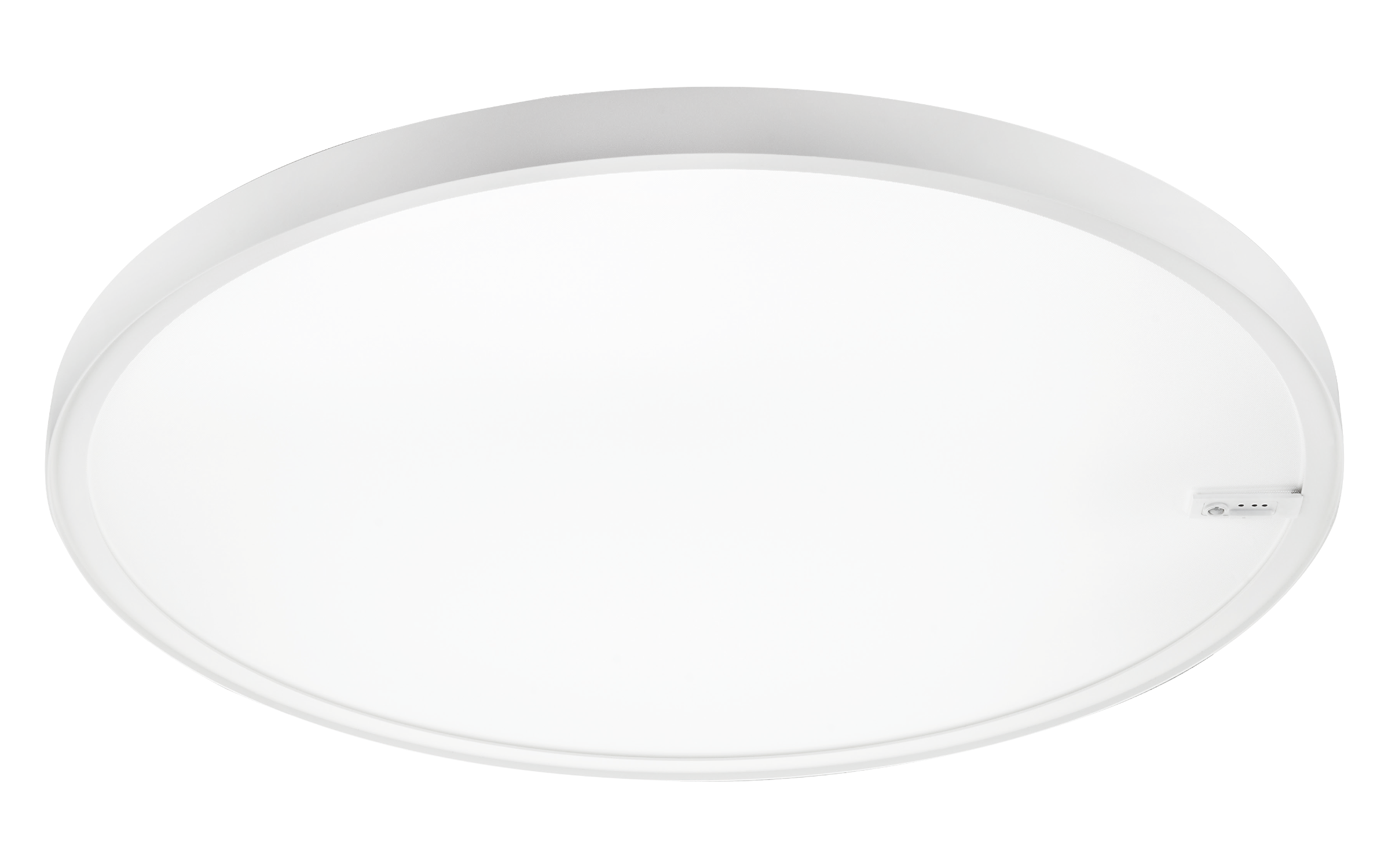

Disc Connect

How to specify

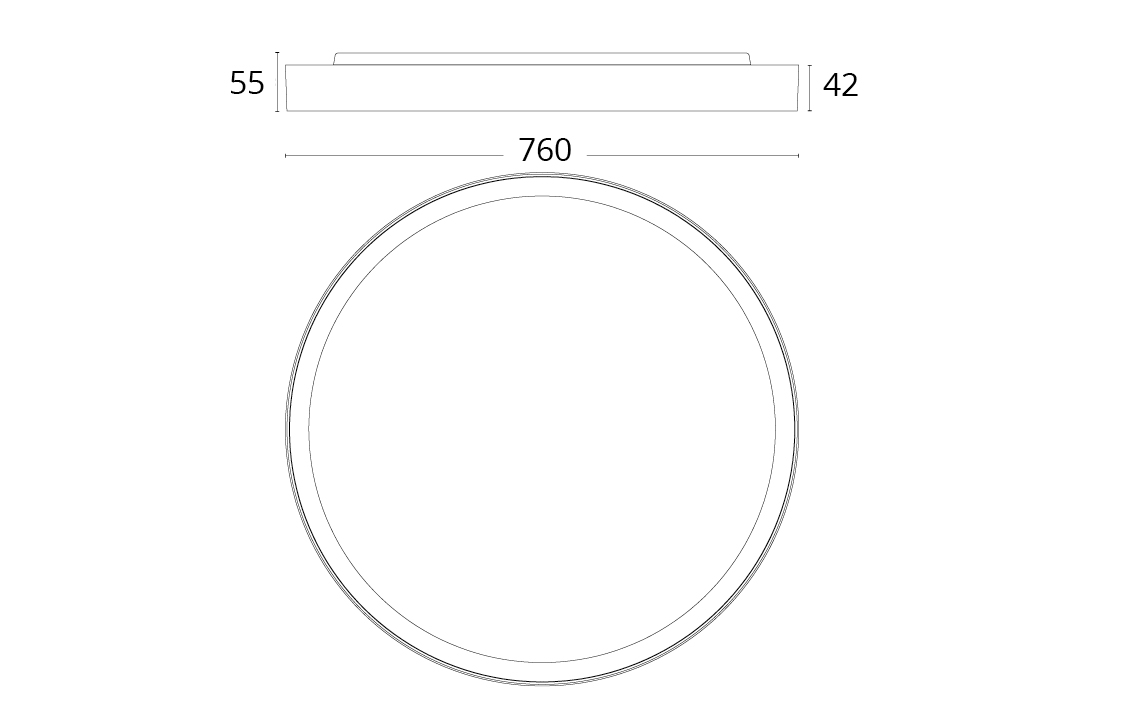

Disc 760 White 5092lm/5389lm 3000/4000K Ra>90 Connect, Article code: 606241, EAN: 7021986062410, IP20, IK10, Electrical: Wattage: 48W/48W, System wattage: 48W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 17, B16: 37, C10: 28, C16: 45, Light technic: Type of light source: LED, Luminous flux: 5092lm/5389lm, Efficacy: 106/112lm/W, Colour temperature: 3000/4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 88°, Control/Dimming: Type: Connect, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Module: 760, Connection: Screwless terminal block, Dimensions: Height (mm) H: 55, Diameter (mm) D: 760, Weight (kg) gross/net: 11.1 / 10.7, Packaging: Packaging dimensions (mm): 775 x 775 x 63
