EcoLine Connect

Ecoline Connect 1200 White 3910lm 3000K Ra>80 Connect

Article code
212096
EAN
7021982120961
Back to articlelist

Overview

Efficacy
130 lm/W
Lumen
3910lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Suspended or surface, Indoor
    5 years Warranty
  • indoor
  • el
  • flickerfree
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 212096 Revit file - Generic Ecoline 1200 connect - generic Revit file - Face Based Ecoline 1200 connect- face based

See more

Eulumdat file (ldt) 7021982120961_Ecoline Connect 1200 White 3900lm 3000K Ra80 Connect Dialux file (uld) 7021982120961_Ecoline Connect 1200 White 3900lm 3000K Ra80 Connect Relux file (rolf) 7021982120961_Ecoline_Connect_1200_White_3900lm_3000K_Ra_80_Connect EPD NEPD-7064-6467_Ecoline-Connect-1200 Mounting instruction Ecoline Connect_User Manuals CE Declaration Ecoline Connect

How to specify

Text copied to clipboard

Ecoline Connect 1200 White 3910lm 3000K Ra>80 Connect, Article code: 212096, EAN: 7021982120961, IP20, Electrical: System wattage: 30W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 24, C16: 40, Leakage current (mA): 0.50, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 3910lm, Efficacy: 130 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, UGR: UGR<19, Visible flicker (PstLM): 1, Stroboscopic flicker (SVM): 0,4, Photobiological safety: RG 0, Control/Dimming: Type: Connect, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Suspended or surface, Indoor, Module: 1200, Connection: 3 pole Screwless terminal block, Dimensions: Length (mm) L: 1235, Width (mm) W: 166, Height (mm) H: 55, Weight (kg) gross/net: 4.43 / 4, Packaging: Packaging dimensions (mm): 1255 x 180 x 70

Electrical

System wattage
30W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 15, B16: 24, C10: 24, C16: 40
Leakage current (mA)
0.50

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
3910lm
Efficacy
130 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

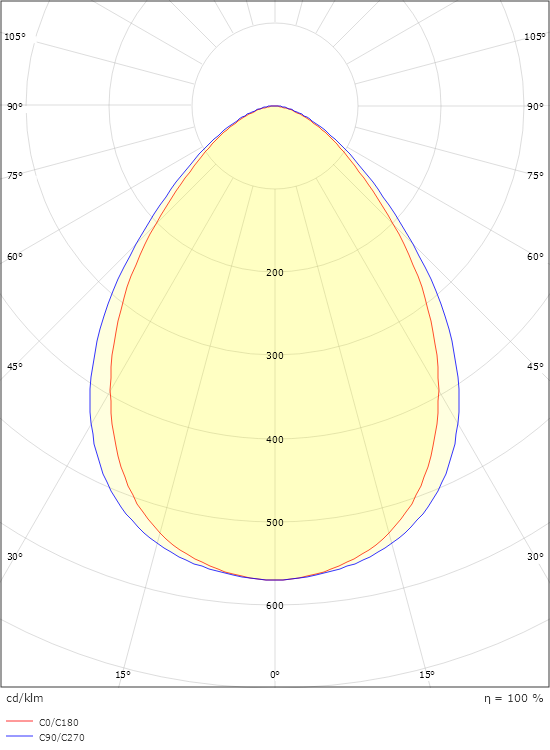

Light distribution
Direct
Optic
Opalprism
UGR
UGR<19
Visible flicker (PstLM)
1
Stroboscopic flicker (SVM)
0,4
Photobiological safety
RG 0

Control/Dimming

Type
Connect

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Suspended or surface, Indoor
Module
1200
Connection
3 pole Screwless terminal block

Dimensions

Length (mm) L
1235
Width (mm) W
166
Height (mm) H
55
Weight (kg) gross/net
4.43 / 4

Packaging

Packaging dimensions (mm)
1255 x 180 x 70
