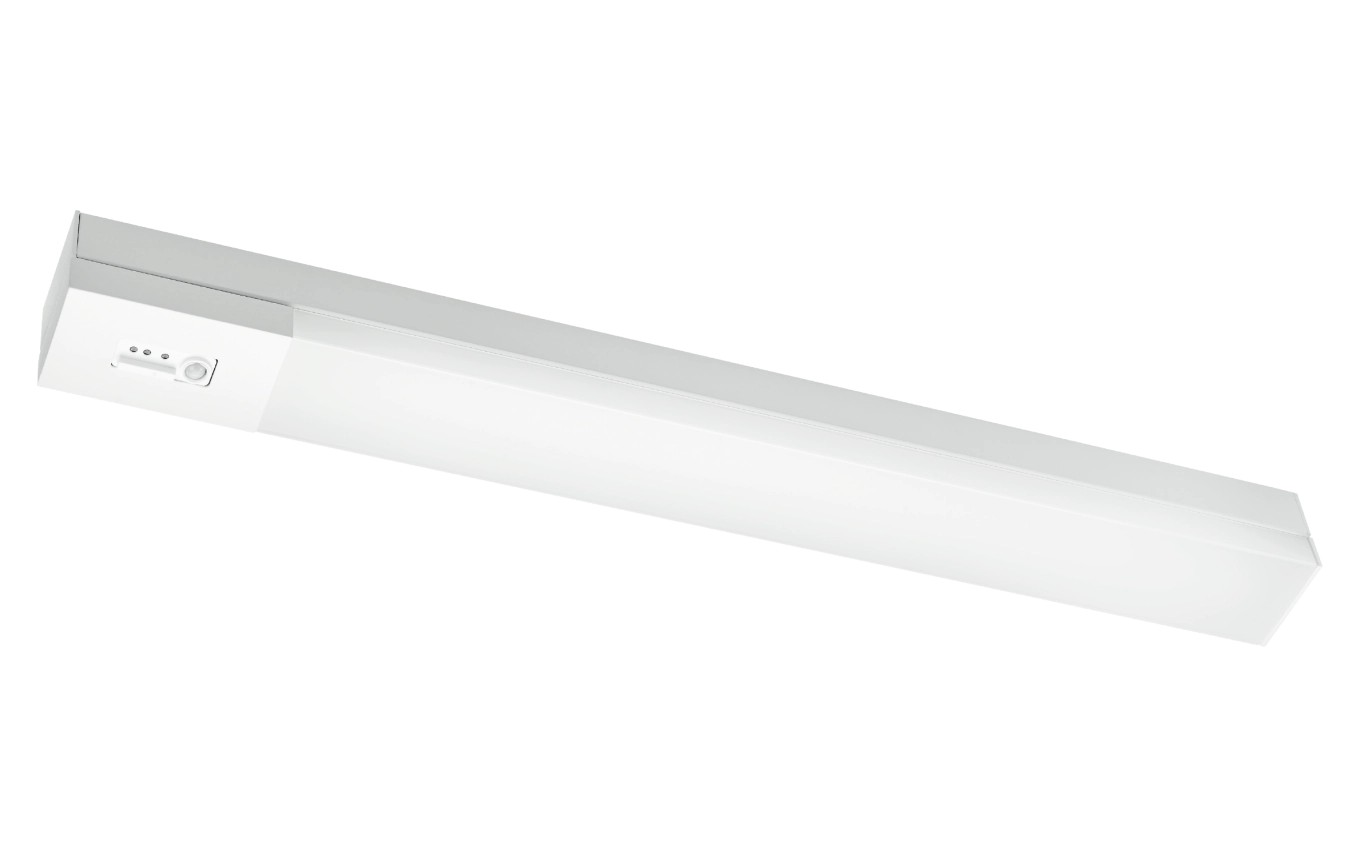

Prelude Square Connect
Prelude Square White 1700lm 4000K Ra>90 Connect
- Article code
- 111441
- EAN
- 7021981114411
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 131 lm/W
- Lumen
- 1700lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B10>
- Mounting
- Surface, Indoor
Electrical
- System wattage
- 13W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 25, B16: 40, C10: 41, C16: 68
Light technic
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 1700lm
- Efficacy
- 131 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B10>100,000
- Light distribution
- Direct
- Optic
- Acrylic diffuser
Control/Dimming
- Type
- Connect
Protection
- Luminaire class
- Class II
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- C
Materials and finish
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Surface, Indoor
- Connection
- Screwless terminal block
Dimensions
- Width (mm) W
- 519
- Height (mm) H
- 59
- Depth (D)
- 62
- Weight (kg) gross/net
- 1.144 / 1.014
Packaging
- Packaging dimensions (mm)
- 625 x 75 x 60
