Sense Pro Connect 600x600
Sense Pro Connect 600x600 White 3120lm 4000K Ra>90 Connect
- Article code
- 820511+212724
- EAN
- 7021982127243+7021988205112
- SG code
- 212724+820511
Overview
- Efficacy
- 125 lm/W
- Lumen
- 3120lm
- IP Class
- IP40/IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B20>
Electrical
- System wattage
- 25W
Light technic
- Type of light source
- LED
- Luminous flux
- 3120lm
- Efficacy
- 125 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B20>100,000
- Lifetime
- L90>50,000

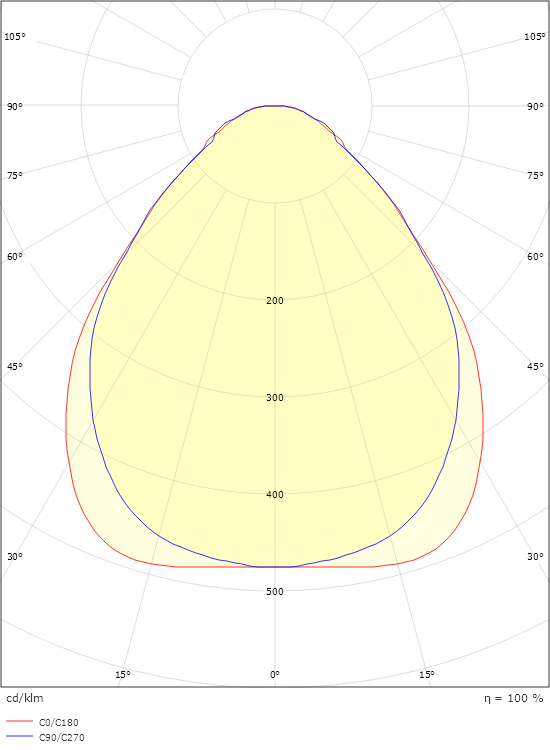

- Light distribution
- Direct
- Optic
- Opalprism
- Beam angle
- 110°
Control/Dimming
- Type
- Connect
Protection
- Luminaire class
- Class III
- IK Class
- IK10
- IP Class
- IP40/IP20
Energy and approvals
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- White smooth (Ral 9016 gloss 30)
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Module
- 600x600 Exposed T-carrier 15/24mm
- Connection
- Quick connector
Dimensions
- Length (mm) L
- 597
- Width (mm) W
- 597
- Height (mm) H
- 11
- Weight (kg) gross/net
- 3.05 / 2.55
Packaging
- Packaging dimensions (mm)
- 635 x 635 x 43
