Zip Tube Micro Pendant

Zip Tube Micro Pendant Black 380lm 4000K Ra 98 Trailing edge

Article code
320630
EAN
7021983206305
Back to articlelist

Overview

Efficacy
54 lm/W
Lumen
380lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra 98
Lifetime
50,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • flickerfree
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 320630 Eulumdat file (ldt) 7021983206305_Zip Tube Micro Pendant Black 380lm 4000K Ra 98 Trailing edge dimming Dialux file (uld) 7021983206305_Zip Tube Micro Pendant Black 380lm 4000K Ra 98 Trailing edge dimming

See more

Relux file (rolf) 7021983206305_Zip_Tube_Micro_Pendant_Black_Pendant_380lm_4000K_Ra_98_Trailing_edge_dimming EPD NEPD-11474-11411_Zip-Tube-Pendant-Micro Revit file - Generic Zip Tube Micro Pendant - generic Revit file - Ceiling Based Zip Tube Micro Pendel - ceiling based Mounting instruction Zip Tube Micro_User Manual CE Declaration Zip Tube Micro Pendant

How to specify

Text copied to clipboard

Zip Tube Micro Pendant Black 380lm 4000K Ra 98 Trailing edge, Article code: 320630, EAN: 7021983206305, IP20, Electrical: System wattage: 7W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 380lm, Efficacy: 54 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra 98, MacAdams factor: SDCM: 2, Lifetime: L90/B10>50,000, Light distribution: Direct, Optic: Reflector medium, Beam angle: 40°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Module: Pendant, Connection: Zip track (adapter included), Dimensions: Length (mm) L: 204, Width (mm) W: 39, Height (mm) H: 204, Weight (kg) gross/net: 0.476 / 0.397, Packaging: Packaging dimensions (mm): 204 x 39 x 204

Electrical

System wattage
7W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
380lm
Efficacy
54 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra 98
MacAdams factor
SDCM: 2
Lifetime
L90/B10>50,000

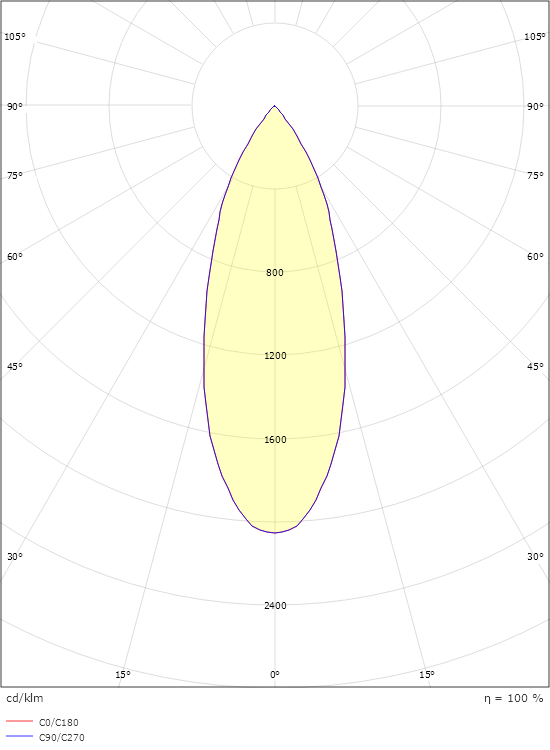

Light distribution
Direct
Optic
Reflector medium
Beam angle
40°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Module
Pendant
Connection
Zip track (adapter included)

Dimensions

Length (mm) L
204
Width (mm) W
39
Height (mm) H
204
Weight (kg) gross/net
0.476 / 0.397

Packaging

Packaging dimensions (mm)
204 x 39 x 204
