Aneto

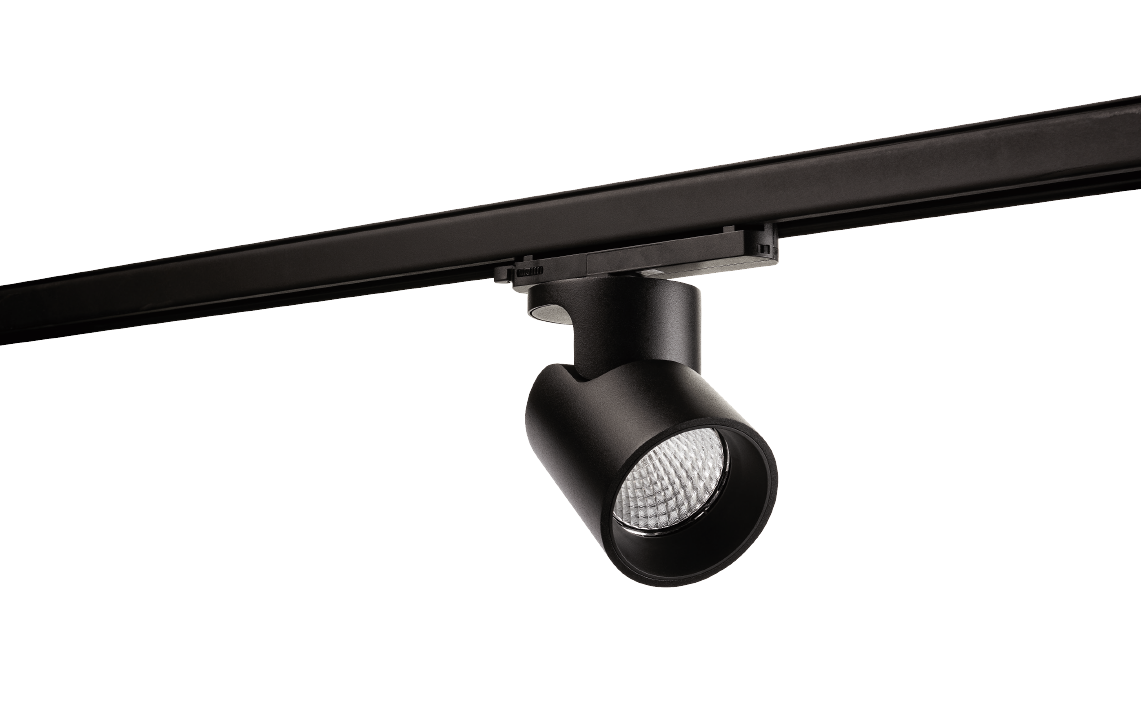

Aneto 3-Circuit Black 2690lm 4000K Ra>90 On/Off

Article code
320716
EAN
7021983207166
Back to articlelist

Overview

Efficacy
90 lm/W
Lumen
2690lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 320716 Mounting instruction Aneto_User Manual EPD NEPD-7345-6738_Aneto-3-T CE Declaration Aneto Relux file (rolf) 7021983207166_Aneto_3-Circuit_Black_1970lm_4000K_Ra90_OnOff_50D_Honeycomb Relux file (rolf) 7021983207166_Aneto_3-Circuit_Black_2070lm_4000K_Ra90_OnOff_Honeycomb Relux file (rolf) 7021983207166_Aneto_3-Circuit_Black_2130lm_4000K_Ra90_OnOff_17D_Honeycomb Relux file (rolf) 7021983207166_Aneto_3-Circuit_Black_2690lm_4000K_Ra90_OnOff Relux file (rolf) 7021983207166_Aneto_3-Circuit_Black_2700lm_4000K_Ra90_OnOff_17D_Reflector Relux file (rolf) 7021983207166_Aneto_3-Circuit_Black_2740lm_4000K_Ra90_OnOff_50D_Reflector Eulumdat file (ldt) 7021983207166_Aneto 3-Circuit Black 1970lm 4000K Ra90 OnOff 50D Honeycomb Eulumdat file (ldt) 7021983207166_Aneto 3-Circuit Black 2070lm 4000K Ra90 OnOff Honeycomb Eulumdat file (ldt) 7021983207166_Aneto 3-Circuit Black 2130lm 4000K Ra90 OnOff 17D Honeycomb Eulumdat file (ldt) 7021983207166_Aneto 3-Circuit Black 2690lm 4000K Ra90 OnOff Eulumdat file (ldt) 7021983207166_Aneto 3-Circuit Black 2700lm 4000K Ra90 OnOff 17D Reflector Eulumdat file (ldt) 7021983207166_Aneto 3-Circuit Black 2740lm 4000K Ra90 OnOff 50D Reflector Dialux file (uld) 7021983207166_Aneto 3-Circuit Black 1970lm 4000K Ra90 OnOff 50D Honeycomb Dialux file (uld) 7021983207166_Aneto 3-Circuit Black 2070lm 4000K Ra90 OnOff Honeycomb Dialux file (uld) 7021983207166_Aneto 3-Circuit Black 2130lm 4000K Ra90 OnOff 17D Honeycomb Dialux file (uld) 7021983207166_Aneto 3-Circuit Black 2690lm 4000K Ra90 OnOff Dialux file (uld) 7021983207166_Aneto 3-Circuit Black 2700lm 4000K Ra90 OnOff 17D Reflector Dialux file (uld) 7021983207166_Aneto 3-Circuit Black 2740lm 4000K Ra90 OnOff 50D Reflector Revit file - Generic Aneto - generic Revit file - Face Based Aneto - face based

How to specify

Text copied to clipboard

Aneto 3-Circuit Black 2690lm 4000K Ra>90 On/Off, Article code: 320716, EAN: 7021983207166, IP20, Electrical: System wattage: 30W, Max. luminaires per circuit breaker: B10: 15, B16: 25, C10: 26, C16: 42, Light technic: Type of light source: LED, Luminous flux: 2690lm, Efficacy: 90 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Maximum ambient temperature: 35°C, Light distribution: Direct, Optic: Reflector, Beam angle: 32°, Visible flicker (PstLM): 0.01, Stroboscopic flicker (SVM): 0.01, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: Glass, Mounting/Connection: Mounting: Surface, Indoor, Connection: ShopLine track (adapter included), Dimensions: Height (mm) H: 120, Diameter (mm) D: 92, Weight (kg) gross/net: 1.16 / 0.96, Packaging: Packaging dimensions (mm): 168 x 102 x 175

Electrical

System wattage
30W
Max. luminaires per circuit breaker
B10: 15, B16: 25, C10: 26, C16: 42

Light technic

Type of light source
LED
Luminous flux
2690lm
Efficacy
90 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000
Maximum ambient temperature
35°C

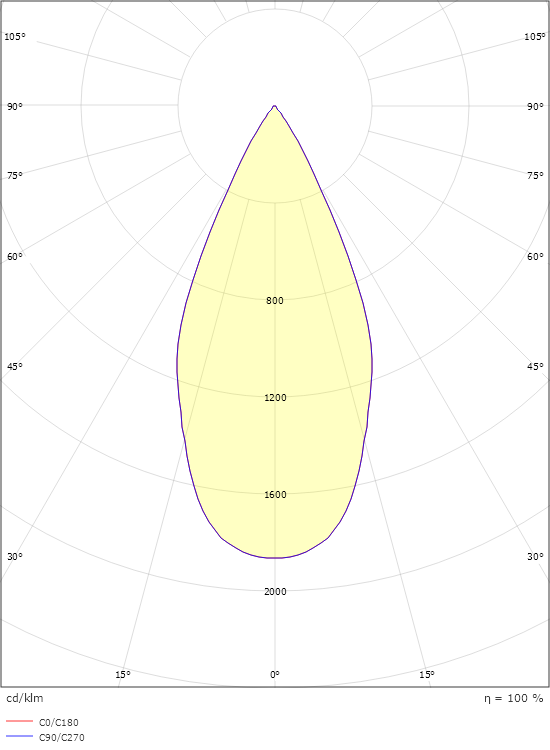

Light distribution
Direct
Optic
Reflector
Beam angle
32°
Visible flicker (PstLM)
0.01
Stroboscopic flicker (SVM)
0.01

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
Glass

Mounting/Connection

Mounting
Surface, Indoor
Connection
ShopLine track (adapter included)

Dimensions

Height (mm) H
120
Diameter (mm) D
92
Weight (kg) gross/net
1.16 / 0.96

Packaging

Packaging dimensions (mm)
168 x 102 x 175
