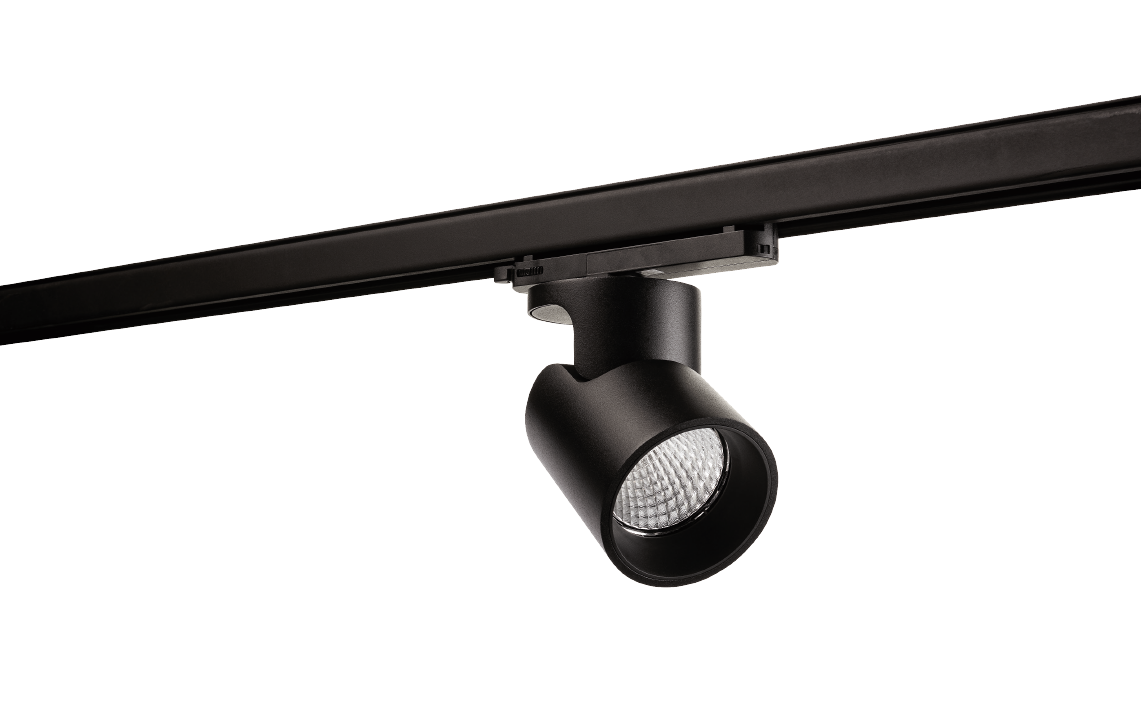

Aneto

Aneto 3-Circuit Black 2520lm 3000K Ra>90 On/Off

Article code
320715
EAN
7021983207159
Back to articlelist

Overview

Efficacy
84 lm/W
Lumen
2520lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Surface, Indoor
  • indoor
  • dipswitch
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 320715 Revit file - Generic Aneto - generic Revit file - Face Based Aneto - face based

See more

Eulumdat file (ldt) 7021983207159_Aneto 3-Circuit Black 1840lm 3000K Ra90 OnOff 50D Honeycomb Eulumdat file (ldt) 7021983207159_Aneto 3-Circuit Black 1940lm 3000K Ra90 OnOff Honeycomb Eulumdat file (ldt) 7021983207159_Aneto 3-Circuit Black 1990lm 3000K Ra90 OnOff 17D Honeycomb Eulumdat file (ldt) 7021983207159_Aneto 3-Circuit Black 2520lm 3000K Ra90 OnOff Eulumdat file (ldt) 7021983207159_Aneto 3-Circuit Black 2530lm 3000K Ra90 OnOff 17D Reflector Eulumdat file (ldt) 7021983207159_Aneto 3-Circuit Black 2570lm 3000K Ra90 OnOff 50D Reflector Dialux file (uld) 7021983207159_Aneto 3-Circuit Black 1840lm 3000K Ra90 OnOff 50D Honeycomb Dialux file (uld) 7021983207159_Aneto 3-Circuit Black 1940lm 3000K Ra90 OnOff Honeycomb Dialux file (uld) 7021983207159_Aneto 3-Circuit Black 1990lm 3000K Ra90 OnOff 17D Honeycomb Dialux file (uld) 7021983207159_Aneto 3-Circuit Black 2520lm 3000K Ra90 OnOff Dialux file (uld) 7021983207159_Aneto 3-Circuit Black 2530lm 3000K Ra90 OnOff 17D Reflector Dialux file (uld) 7021983207159_Aneto 3-Circuit Black 2570lm 3000K Ra90 OnOff 50D Reflector Relux file (rolf) 7021983207159_Aneto_3-Circuit_Black_1840lm_3000K_Ra90_OnOff_50D_Honeycomb Relux file (rolf) 7021983207159_Aneto_3-Circuit_Black_1940lm_3000K_Ra90_OnOff_Honeycomb Relux file (rolf) 7021983207159_Aneto_3-Circuit_Black_1990lm_3000K_Ra90_OnOff_17D_Honeycomb Relux file (rolf) 7021983207159_Aneto_3-Circuit_Black_2520lm_3000K_Ra90_OnOff Relux file (rolf) 7021983207159_Aneto_3-Circuit_Black_2530lm_3000K_Ra90_OnOff_17D_Reflector Relux file (rolf) 7021983207159_Aneto_3-Circuit_Black_2570lm_3000K_Ra90_OnOff_50D_Reflector EPD NEPD-7345-6738_Aneto-3-T Mounting instruction Aneto_User Manual CE Declaration Aneto

How to specify

Text copied to clipboard

Aneto 3-Circuit Black 2520lm 3000K Ra>90 On/Off, Article code: 320715, EAN: 7021983207159, IP20, Electrical: System wattage: 30W, Max. luminaires per circuit breaker: B10: 15, B16: 25, C10: 26, C16: 42, Light technic: Type of light source: LED, Luminous flux: 2520lm, Efficacy: 84 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Maximum ambient temperature: 35°C, Light distribution: Direct, Optic: Reflector, Beam angle: 32°, Visible flicker (PstLM): 0.01, Stroboscopic flicker (SVM): 0.01, Photobiological safety: RG 1, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: Glass, Mounting/Connection: Mounting: Surface, Indoor, Connection: ShopLine track (adapter included), Dimensions: Height (mm) H: 120, Diameter (mm) D: 92, Weight (kg) gross/net: 1.16 / 0.96, Packaging: Packaging dimensions (mm): 168 x 102 x 175

Electrical

System wattage
30W
Max. luminaires per circuit breaker
B10: 15, B16: 25, C10: 26, C16: 42

Light technic

Type of light source
LED
Luminous flux
2520lm
Efficacy
84 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000
Maximum ambient temperature
35°C
Light distribution
Direct
Optic
Reflector
Beam angle
32°
Visible flicker (PstLM)
0.01
Stroboscopic flicker (SVM)
0.01
Photobiological safety
RG 1

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
Glass

Mounting/Connection

Mounting
Surface, Indoor
Connection
ShopLine track (adapter included)

Dimensions

Height (mm) H
120
Diameter (mm) D
92
Weight (kg) gross/net
1.16 / 0.96

Packaging

Packaging dimensions (mm)
168 x 102 x 175
