Aneto
Aneto 3-Circuit White 2690lm 4000K Ra>90 On/Off
- Article code
- 320714
- EAN
- 7021983207142
Overview
- Efficacy
- 90 lm/W
- Lumen
- 2690lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L90/B10>
- Mounting
- Surface, Indoor
Electrical
- System wattage
- 30W
- Max. luminaires per circuit breaker
- B10: 15, B16: 25, C10: 26, C16: 42
Light technic
- Type of light source
- LED
- Luminous flux
- 2690lm
- Efficacy
- 90 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- MacAdams factor
- SDCM: 2
- Lifetime
- L90/B10>100,000
- Maximum ambient temperature
- 35°C

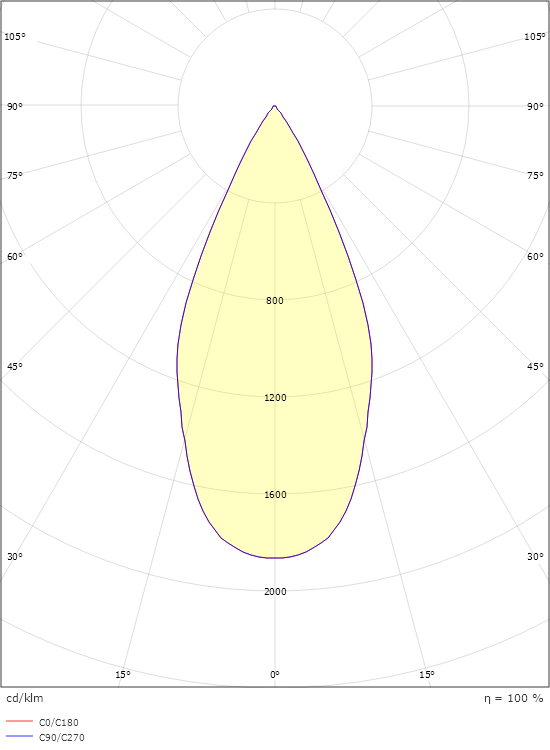

- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 32°
- Visible flicker (PstLM)
- 0.01
- Stroboscopic flicker (SVM)
- 0.01
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class II
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- Glass
Mounting/Connection
- Mounting
- Surface, Indoor
- Connection
- ShopLine track (adapter included)
Dimensions
- Height (mm) H
- 120
- Diameter (mm) D
- 92
- Weight (kg) gross/net
- 1.16 / 0.96
Packaging
- Packaging dimensions (mm)
- 168 x 102 x 175
