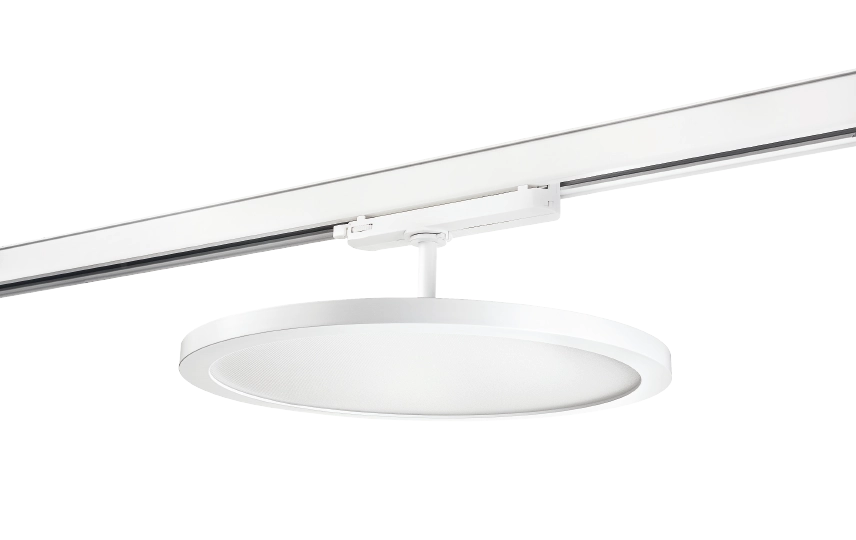

Sense 320 3-Circuit

Sense 320 3-Circuit White 3570lm 4000K Ra>80 On/Off

Article code
212383
EAN
7021982123832
Back to articlelist

Overview

Efficacy
132 lm/W
Lumen
3570lm
IP Class
IP40/IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ip20ip40
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 212383 Revit file - Generic Sense 320 3-Circuit - generic Revit file - Face Based Sense 320 3-Circuit - face based

See more

Eulumdat file (ldt) 7021982123832_Sense 320 3-Circuit White 3460lm 4000K Ra80 OnOff Dialux file (uld) 7021982123832_Sense 320 3-Circuit White 3460lm 4000K Ra80 OnOff Relux file (rolf) 7021982123832_Sense_320_3-Circuit_White_3460lm_4000K_Ra_80_On_Off Mounting instruction Sense 320 3T_user manual CE Declaration Sense 320 3T ENEC Certificate Sense 320 3-T

How to specify

Text copied to clipboard

Sense 320 3-Circuit White 3570lm 4000K Ra>80 On/Off, Article code: 212383, EAN: 7021982123832, IP40/IP20, Electrical: System wattage: 27W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 3570lm, Efficacy: 132 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Light distribution: Direct, Optic: Opal, Beam angle: 85°, Photobiological safety: RG 0, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II SELV, IP Class: IP40/IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: ShopLine track (adapter included), Dimensions: Height (mm) H: 100, Diameter (mm) D: 320, Weight (kg) gross/net: 1.489 / 1.18, Packaging: Packaging dimensions (mm): 365 x 365 x 186

Electrical

System wattage
27W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
3570lm
Efficacy
132 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Light distribution
Direct
Optic
Opal
Beam angle
85°
Photobiological safety
RG 0

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II SELV
IP Class
IP40/IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
ShopLine track (adapter included)

Dimensions

Height (mm) H
100
Diameter (mm) D
320
Weight (kg) gross/net
1.489 / 1.18

Packaging

Packaging dimensions (mm)
365 x 365 x 186
