Tube Eco

Tube Eco Black 2280lm 3000K Ra>90 Trailing edge

Article code
314475
EAN
7021983144751
Replaces
314470, 314472
Back to articlelist

Overview

Efficacy
88 lm/W
Lumen
2280lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 314475 Eulumdat file (ldt) 7021983144751_Tube Eco Black 1850lm 3000K Ra90 Trailing edge dimming Honeycomb Eulumdat file (ldt) 7021983144751_Tube Eco Black 2280lm 3000K Ra90 Trailing edge dimming

See more

Dialux file (uld) 7021983144751_Tube Eco Black 1850lm 3000K Ra90 Trailing edge dimming Honeycomb Dialux file (uld) 7021983144751_Tube Eco Black 2280lm 3000K Ra90 Trailing edge dimming Relux file (rolf) 7021983144751_Tube_Eco_Black_2280lm_3000K_Ra_90_Trailing_edge_dimming_Honeycomb Relux file (rolf) 7021983144751_Tube_Eco_Black_2280lm_3000K_Ra_90_Trailing_edge_dimming EPD NEPD-8326-7994-EN Tube Eco Revit file - Generic Tube ECO - Generic Revit file - Face Based Tube ECO - Face based Mounting instruction Tube Eco_User Manual CE Declaration Tube Eco

How to specify

Text copied to clipboard

Tube Eco Black 2280lm 3000K Ra>90 Trailing edge, Article code: 314475, EAN: 7021983144751, IP20, Electrical: System wattage: 26W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 18, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 2280lm, Efficacy: 88 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L90/B10>100,000, Maximum ambient temperature: 35°C, Lifetime at max ambient temperature: L90/B10>50,000, Light distribution: Direct, Beam angle: 32°, UGR: UGR<10, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: Black, Optics: Aluminium / PC Polycarbonat, Mounting/Connection: Mounting: Surface, Indoor, Dimensions: Height (mm) H: 220, Diameter (mm) D: 92, Weight (kg) gross/net: 1.27 / 1.109, Packaging: Packaging dimensions (mm): 295 x 100 x 107

Electrical

System wattage
26W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 18, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
2280lm
Efficacy
88 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L90/B10>100,000
Maximum ambient temperature
35°C
Lifetime at max ambient temperature
L90/B10>50,000

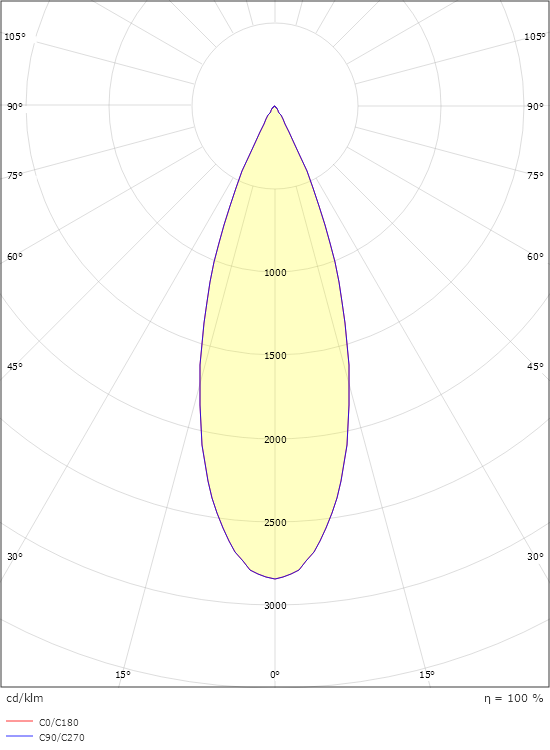

Light distribution
Direct
Beam angle
32°
UGR
UGR<10

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
Black
Optics
Aluminium / PC Polycarbonat

Mounting/Connection

Mounting
Surface, Indoor

Dimensions

Height (mm) H
220
Diameter (mm) D
92
Weight (kg) gross/net
1.27 / 1.109

Packaging

Packaging dimensions (mm)
295 x 100 x 107
