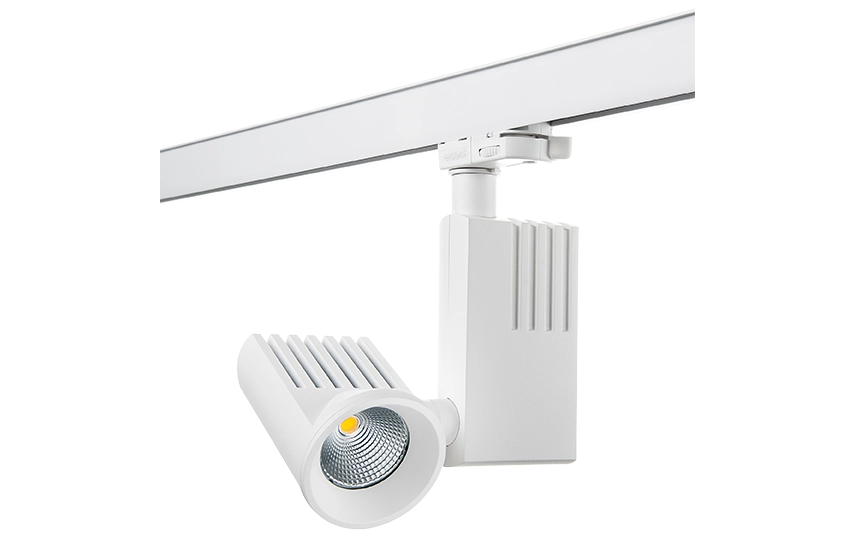

Zip Pro Mini 3-Circuit

Zip Pro Mini 3-Circuit White 1280lm 3000K Ra>90 Trailing edge

Article code
3464
EAN
7021980034642
Back to articlelist

Overview

Wattage
16W
Efficacy
67 lm/W
Lumen
1280lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 3464 Eulumdat file (ldt) 7021980034642_Zip Pro Mini 3 Circuit Matt White 16W LED 3000K Ra90-33885 Dialux file (uld) 7021980034642_Zip Pro Mini 3 Circuit Matt White 16W LED 3000K Ra90

See more

Relux file (rolf) 7021980034642_Zip_Pro_Mini_3-Circuit_White_1280lm_3000K_Ra_90_Trailing_edge_dimming EPD NEPD-11521-11474_Zip-Pro-Mini-3-T Mounting instruction Zip Pro Mini_User maunal CE Declaration Zip Pro Mini 3 Circuits

How to specify

Text copied to clipboard

Zip Pro Mini 3-Circuit White 1280lm 3000K Ra>90 Trailing edge, Article code: 3464, EAN: 7021980034642, IP20, Electrical: Wattage: 16W, System wattage: 19W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 1280lm, Efficacy: 67 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Reflector, Beam angle: 40°, UGR: UGR<25, Photobiological safety: RG 1, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Matte white (RAL 9003), Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Indoor, Connection: ShopLine track (adapter included), Dimensions: Length (mm) L: 156, Width (mm) W: 70, Height (mm) H: 205, Weight (kg) gross/net: 0.972 / 0.81, Packaging: Packaging dimensions (mm): 195 x 80 x 200

Electrical

Wattage
16W
System wattage
19W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
1280lm
Efficacy
67 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L80/B20>50,000
Light distribution
Direct
Optic
Reflector
Beam angle
40°
UGR
UGR<25
Photobiological safety
RG 1

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Matte white (RAL 9003)
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Indoor
Connection
ShopLine track (adapter included)

Dimensions

Length (mm) L
156
Width (mm) W
70
Height (mm) H
205
Weight (kg) gross/net
0.972 / 0.81

Packaging

Packaging dimensions (mm)
195 x 80 x 200
