Aneto DALI

Aneto 3-Circuit White 2690lm 4000K Ra>90 DALI-2

Article code
320718
EAN
7021983207180
Back to articlelist

Overview

Efficacy
90 lm/W
Lumen
2690lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Surface, Indoor
  • indoor
  • dipswitch
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 320718 Revit file - Generic Aneto DALI - generic Revit file - Face Based Aneto DALI - face based

See more

Eulumdat file (ldt) 7021983207180_Aneto 3-Circuit White 1970lm 4000K Ra90 DALI 50D Honeycomb Eulumdat file (ldt) 7021983207180_Aneto 3-Circuit White 2070lm 4000K Ra90 DALI Honeycomb Eulumdat file (ldt) 7021983207180_Aneto 3-Circuit White 2130lm 4000K Ra90 DALI 17D Honeycomb Eulumdat file (ldt) 7021983207180_Aneto 3-Circuit White 2690lm 4000K Ra90 DALI Eulumdat file (ldt) 7021983207180_Aneto 3-Circuit White 2700lm 4000K Ra90 DALI 17D Reflector Eulumdat file (ldt) 7021983207180_Aneto 3-Circuit White 2740lm 4000K Ra90 DALI 50D Reflector Dialux file (uld) 7021983207180_Aneto 3-Circuit White 1970lm 4000K Ra90 DALI 50D Honeycomb Dialux file (uld) 7021983207180_Aneto 3-Circuit White 2070lm 4000K Ra90 DALI Honeycomb Dialux file (uld) 7021983207180_Aneto 3-Circuit White 2130lm 4000K Ra90 DALI 17D Honeycomb Dialux file (uld) 7021983207180_Aneto 3-Circuit White 2690lm 4000K Ra90 DALI Dialux file (uld) 7021983207180_Aneto 3-Circuit White 2700lm 4000K Ra90 DALI 17D Reflector Dialux file (uld) 7021983207180_Aneto 3-Circuit White 2740lm 4000K Ra90 DALI 50D Reflector Relux file (rolf) 7021983207180_Aneto_3-Circuit_White_1970lm_4000K_Ra90_DALI_50D_Honeycomb Relux file (rolf) 7021983207180_Aneto_3-Circuit_White_2070lm_4000K_Ra90_DALI_Honeycomb Relux file (rolf) 7021983207180_Aneto_3-Circuit_White_2130lm_4000K_Ra90_DALI_17D_Honeycomb Relux file (rolf) 7021983207180_Aneto_3-Circuit_White_2690lm_4000K_Ra90_DALI Relux file (rolf) 7021983207180_Aneto_3-Circuit_White_2700lm_4000K_Ra90_DALI_17D_Reflector Relux file (rolf) 7021983207180_Aneto_3-Circuit_White_2740lm_4000K_Ra90_DALI_50D_Reflector EPD NEPD-7346-6737_Aneto-3-T-Dali Mounting instruction Aneto DALI_User Manual CE Declaration Aneto

How to specify

Text copied to clipboard

Aneto 3-Circuit White 2690lm 4000K Ra>90 DALI-2, Article code: 320718, EAN: 7021983207180, IP20, Electrical: System wattage: 30W, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 2690lm, Efficacy: 90 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Maximum ambient temperature: 35°C, Light distribution: Direct, Optic: Reflector, Beam angle: 32°, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Matte white (RAL 9003), Optics: Glass, Mounting/Connection: Mounting: Surface, Indoor, Connection: ShopLine DALI track (adapter included), Dimensions: Height (mm) H: 120, Diameter (mm) D: 92, Weight (kg) gross/net: 1.32 / 0.99, Packaging: Packaging dimensions (mm): 267 x 102 x 176

Electrical

System wattage
30W
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
2690lm
Efficacy
90 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000
Maximum ambient temperature
35°C

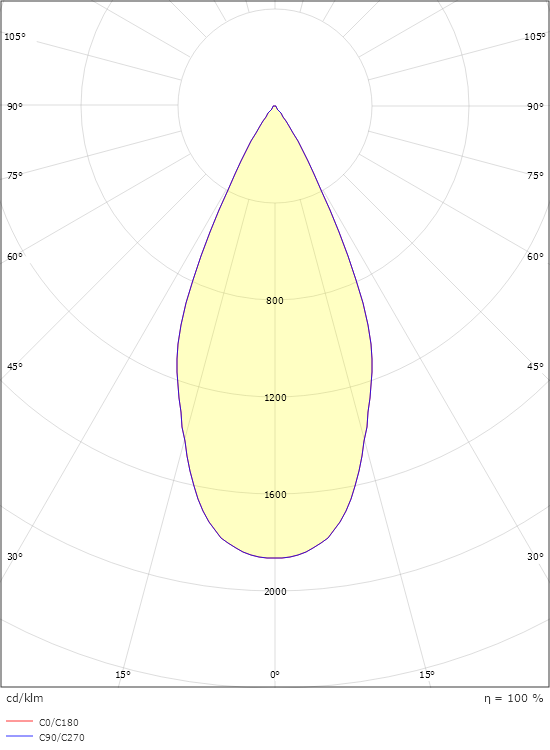

Light distribution
Direct
Optic
Reflector
Beam angle
32°

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Matte white (RAL 9003)
Optics
Glass

Mounting/Connection

Mounting
Surface, Indoor
Connection
ShopLine DALI track (adapter included)

Dimensions

Height (mm) H
120
Diameter (mm) D
92
Weight (kg) gross/net
1.32 / 0.99

Packaging

Packaging dimensions (mm)
267 x 102 x 176
